How does the Air Bag System
Operate?
ORG3EV031084

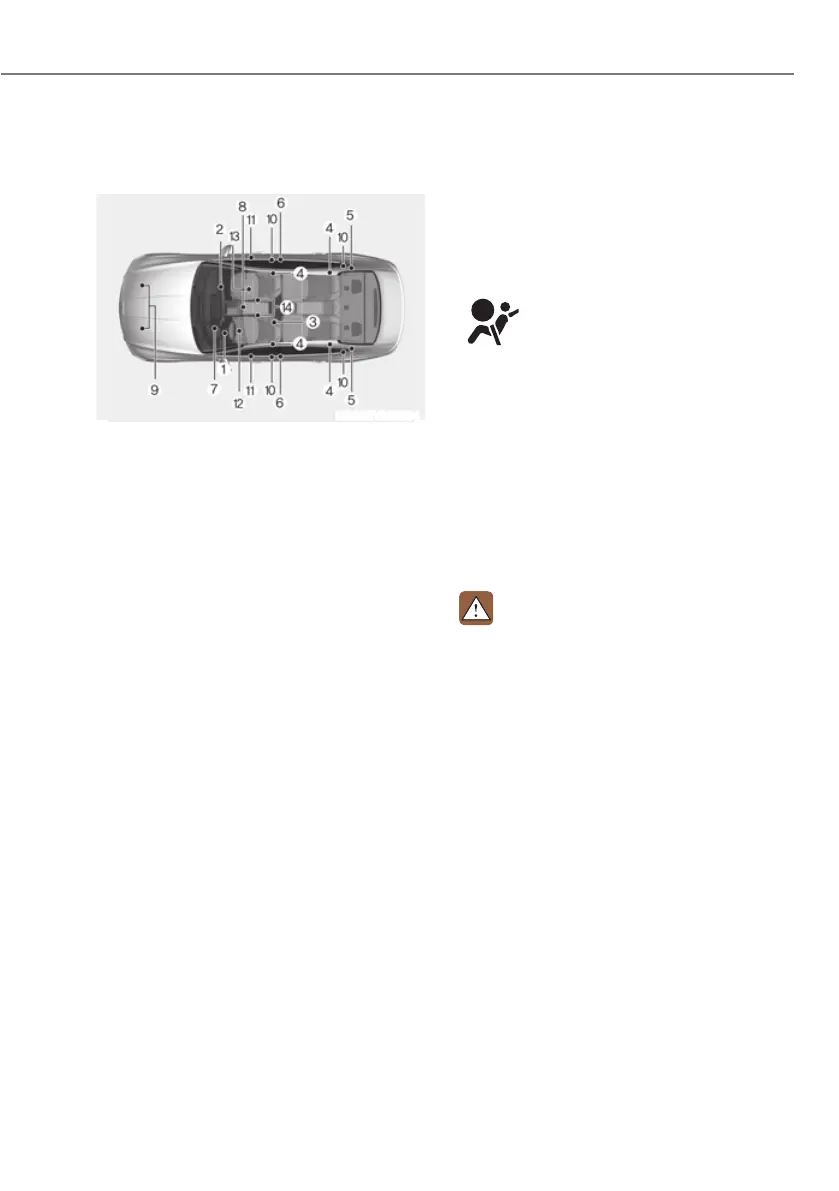

The SRS consists of the following
components:
(1) Driver’s front air bag module
(2) Passenger’s front air bag module
(3) Front center side air bag module
(4) Side air bag modules
(5) Curtain air bag modules
(6) Front retractor pre-tensioner
(7) Air bag warning light
(8) SRS control module (SRSCM) /
Rollover sensor
(9) Front impact sensors
(10)
Side impact sensors
(11)
Side pressure sensors
(12)
Driver’s knee air bag module
(13)
Occupant classification system
(14)
Driver’s and front passenger’s seat
belt buckle sensors
à Front passenger’s air bag OFF lamp is
located on the overhead console.
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while the
Start/Stop button is ON to determine if a
crash impact is severe enough to require
air bag deployment or pre-tensioner seat
belt deployment.
SRS warning light
The SRS (Supplemental Restraint System)
air bag warning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential problem with your
air bag system, which could include
your side and/or curtain air bags used
for rollover protection (if equipped with
rollover sensor).
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:
ś The light does not turn on for
approximately three to six seconds
when the Start/Stop button is in the
ON position.
ś The light stays on after illuminating
for approximately three to six
seconds.
ś The light comes on while the vehicle
is in motion.
ś The light blinks when the vehicle is
running.
Have an authorized retailer of Genesis
Branded products inspect the SRS
as soon as possible if any of these
conditions occur.
