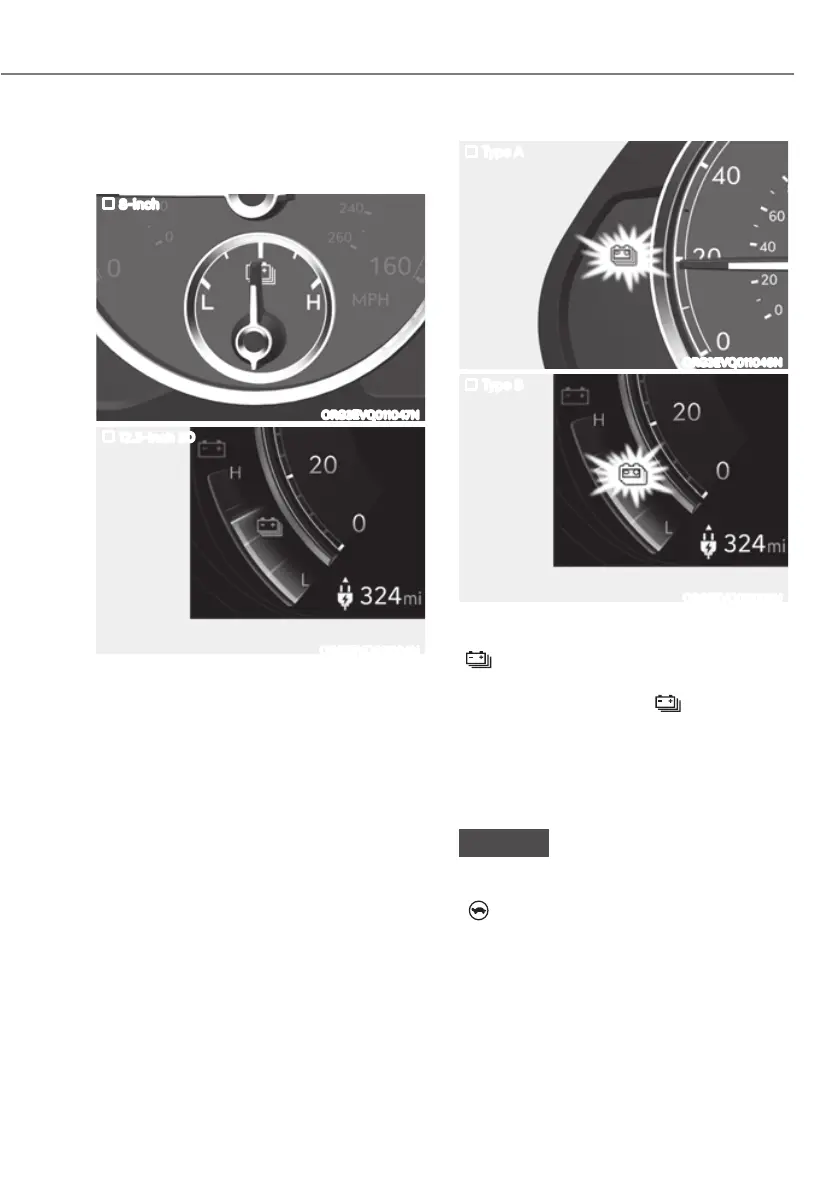

State Of Charge (SOC) Gauge for
High Voltage Battery
 8-inch
ORG3EVQ011047N
 12.3-inch 3D
ORG3EVQ011004N
ś The SOC gauge shows the charging
status of the high voltage battery.
ś The ‘L’ on the indicator indicates that
there is not enough energy in the high
voltage battery. ‘H’ indicates that the
driving battery is fully charged.
ś When driving on highways or
motorways, make sure to check
in advance if the driving battery is
charged enough.
 Type A
ORG3EVQ011046N
 Type B
ORG3EVQ011005N
When the remaining battery is lower than
12 % on the SOC gauge, the warning light
(
) turns ON to alert you of the battery
level.
When the warning light (
) turns ON,
the vehicle can drive an additional 13 ~
26 miles (25 ~ 50 km) depending on the
driving speed, heater/air conditioner,
weather, driving style, and other factors.
Charging is required.
NOTICE
When the high voltage battery level is
low, the power down indicator light
(
) illuminates and the vehicle power
is limited.
Charge the battery immediately since
your vehicle may not be driven, or may
roll back on a slope with the indicator
light ON.
