1-39
01
Checking Charging Status
When charging the high voltage battery,
the charge level can be checked from
outside the vehicle.
For more details, refer to ‘Charge
Indicator Lamp for Electric Vehicle’ in
this chapter.
How to Disconnect DC Charger
1. Press release button and then
remove charging connector when DC
charging is completed, or after you
stop charging using the DC charger.
Refer to each respective DC charger
display instructions or manual for
details about how to disconnect the
charging connector.
2. Make sure to completely close the
charging door.

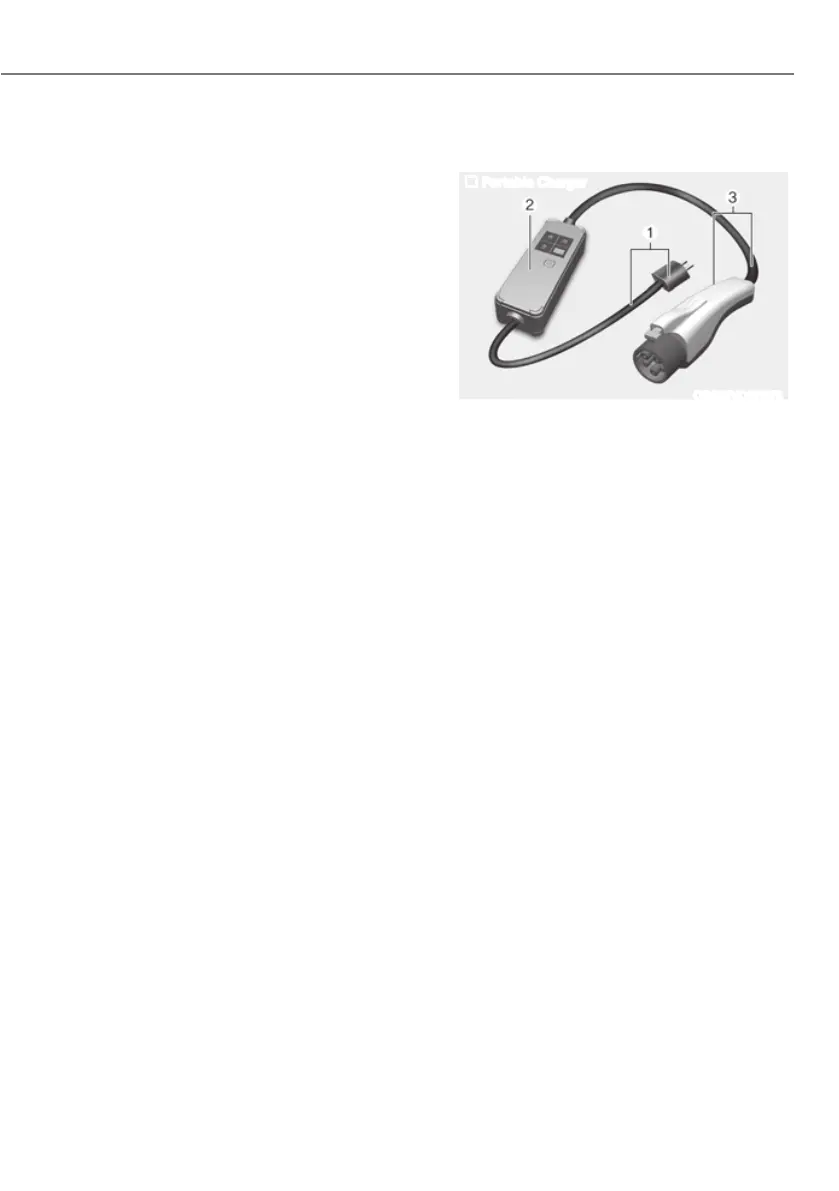

Portable Charge
 Portable Charger
ORG3EVQ011073
(1) Code and Plug (Code set)
(2) Control Box
(3) Charging Cable and Charging
Connector
Portable Charge can be used when AC
Charge or DC Charge is not available by
using household electricity.
To Next Page
