2.5L T-GDI2.5L T-GDI
3.0L TCI3.0L TCI
The actual engine room in the vehicle may differ from the illustration.
OJX1090054R/OJX1090001R OJX1090054R/OJX1090001R

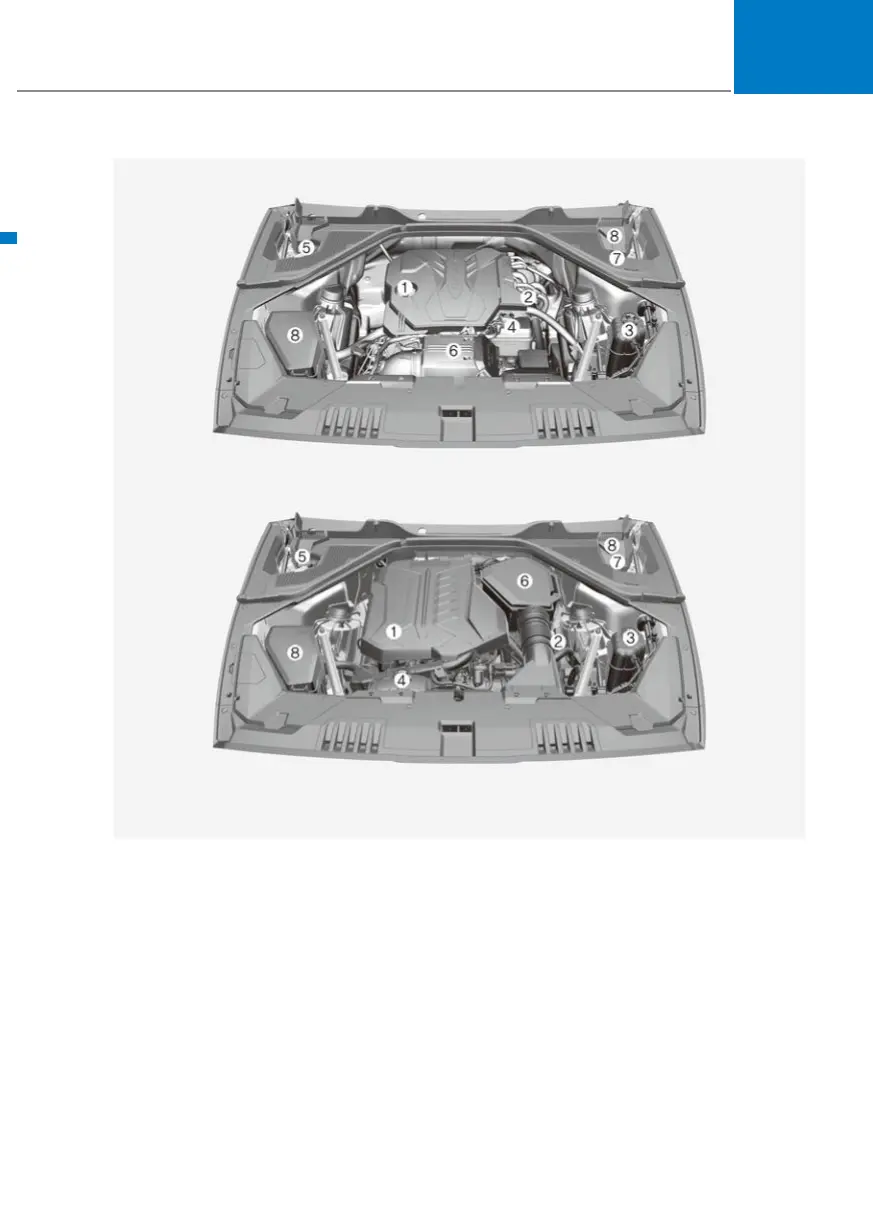

1. Engine oil filler cap (under the engine
cover)
2. Engine oil dipstick
3. Engine coolant reservoir
4. Water-cooled intercooler coolant
reservoir
5. Brake fluid reservoir
6. Air cleaner
7. Windscreen washer fluid reservoir
8. Fuse box
ENGINE ROOM
