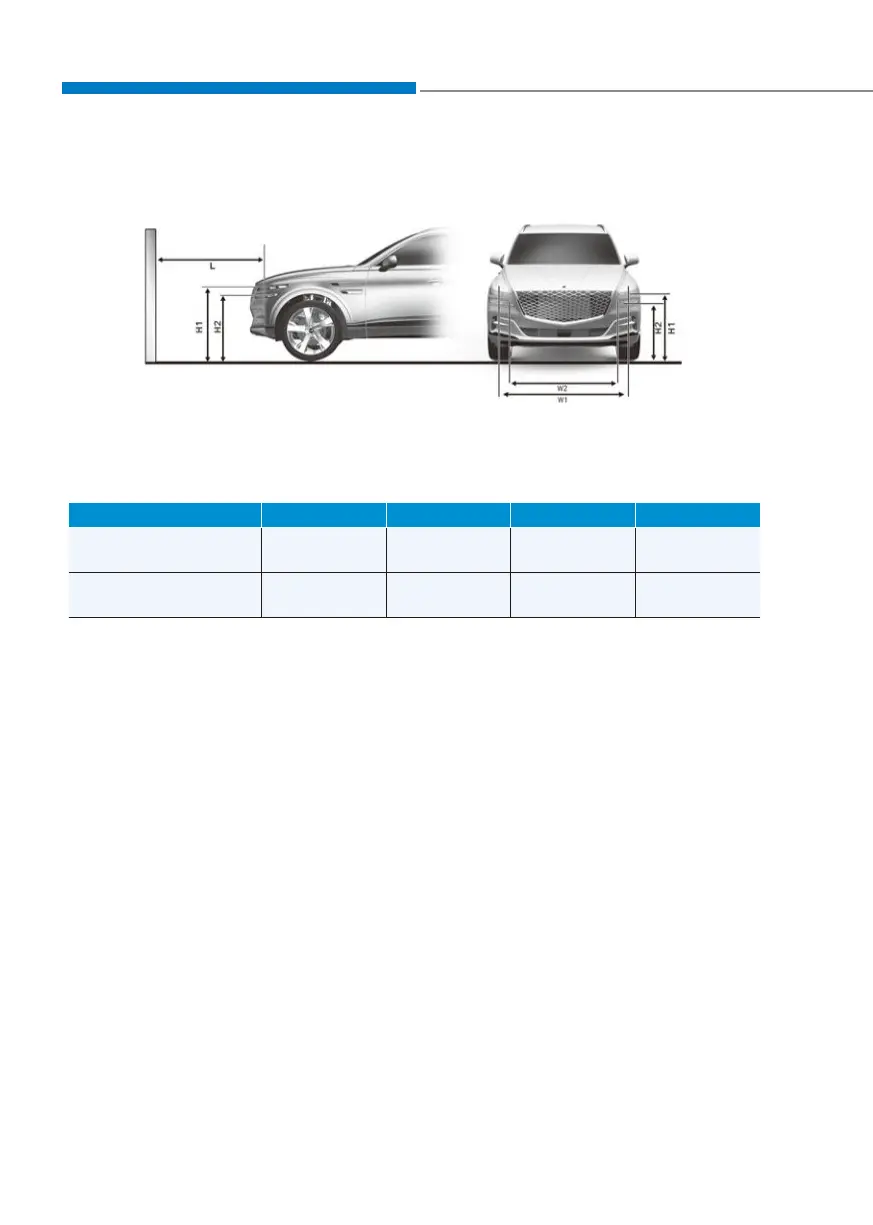

Aiming point
OJX1099063LOJX1099063L
H1 : Height between the head lamp bulb centre and ground (Low beam)
H2 : Height between the head lamp bulb centre and ground (High beam)
W1 : Distance between the two head lamp bulbs centres (Low beam)
W2 : Distance between the two head lamp bulbs centres (High beam)
Vehicle condition H1 H2 W1 W2
Without driver
mm (in)
888 (34.9) 785 (30.9) 1543 (60.7) 1533 (60.3)
With driver
mm (in)
881 (34.6) 778 (30.6) 1543 (60.7) 1533 (60.3)
