GENEVO PRiMA 6 - 1 Examples of Connection of Detectors Using; Different Line Termination

7.3.3.1 Examples of connection of detectors using
different line termination.

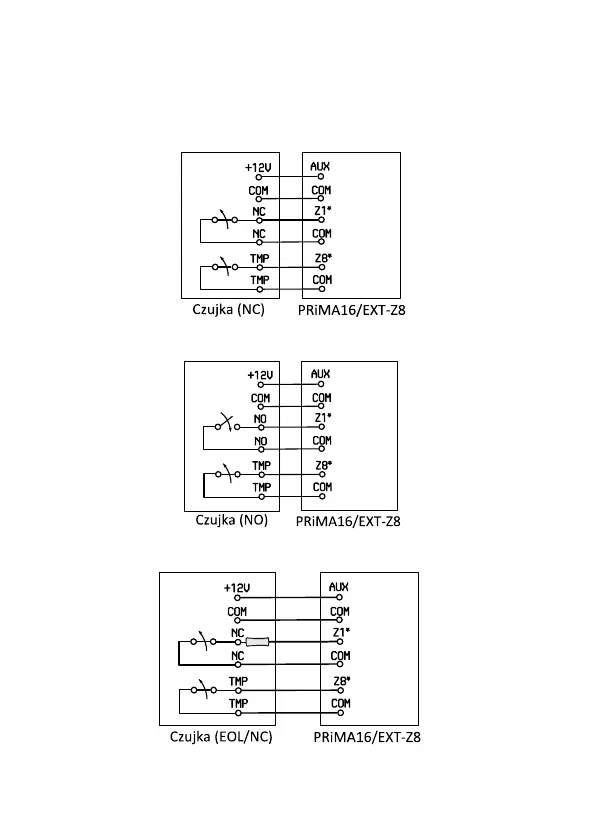

Figure 5: NC type detector connected in NC mode
Figure 6: NO type detector connected in NO mode
Figure 7: NC type detecotr connected in EOL mode
