Genie GCL-J&H 1/2HP User Manual

5.4

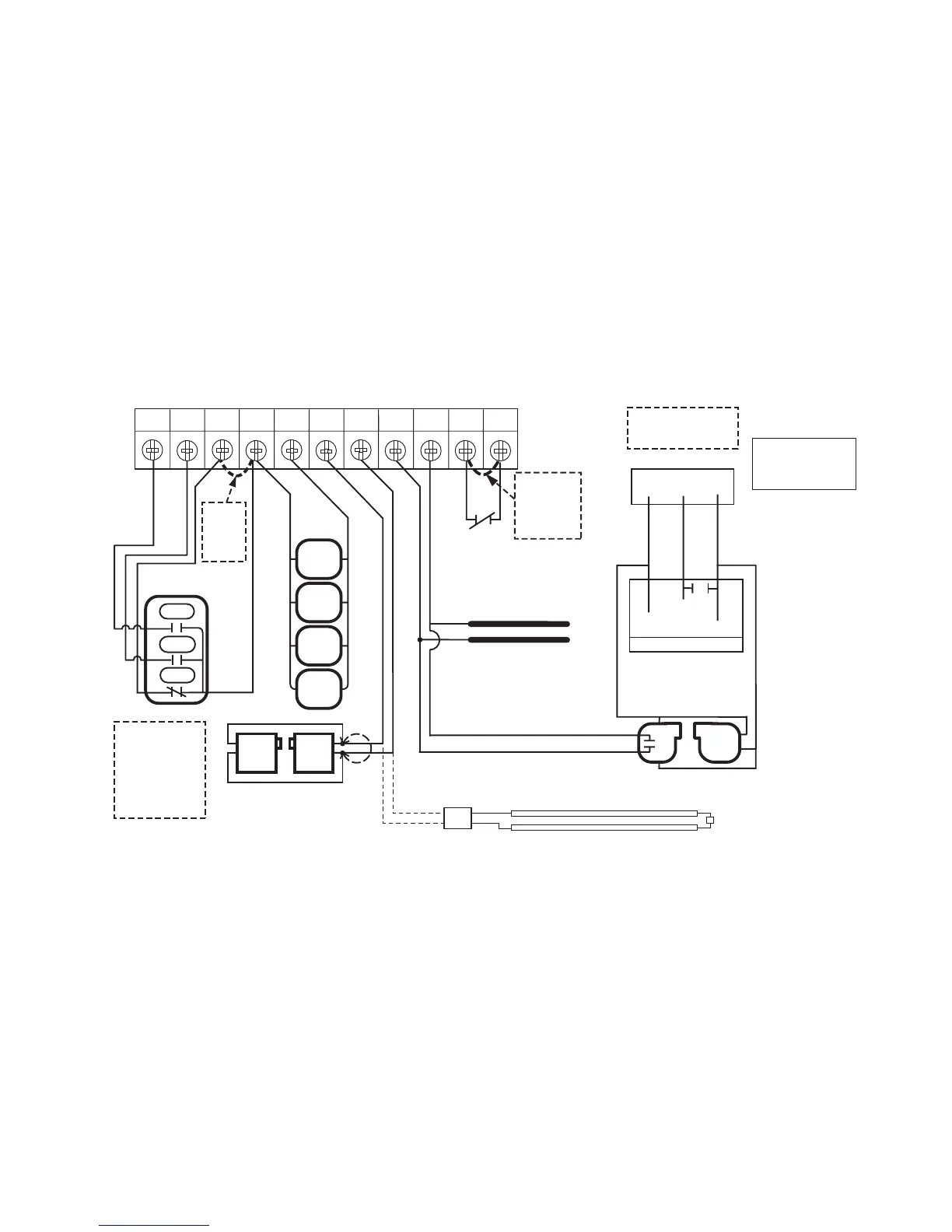

External Wire Diagram
See Appendix B for detailed description of terminals.
www.geniecompany.com 04-14
1-BTN
STATION
KEY
SWITCH
STATION
CARD
READER
O/C
PULL
SWITCH
N/O
N/O
N/O
N/O
REMOVE
JUMPER
WHEN
INSTALLING
EXTERNAL
INTERLOCK
MULTIPLE
3-BUTTON
STATION
INSTALLATIONS
REQUIRE THE
STOP BUTTON
TO BE WIRED
IN SERIES.
See Fig. 5, pg 5.5
*
EXT
INTLK
EXT
INTLK
N-O
REVERSE
N-O
REVERSE
ODC
STB
ODC
STB
1-BTNGNDSTOPCLOSEOPEN
EXT RADIO CONNECTOR
SENSING EDGE SWITCH
(DO NOT CONNECT
2-WIRE MONITORED
SENSING EDGE SWITCH
TO THESE INPUTS)
THRU-BEAM PHOTOCELLS
+
-
+
-
PWR
20-40 VDC @ 250mA
MAX CURRENT
RELAY
GND
NOM
+ 24VDC
RADIO
SERIES II SAFE-T-BEAM
®
(STB)
(
*
CONNECT STB WIRES
TO EITHER TERMINAL)
*
OPEN
CLOSE
STOP
REMOVE
JUMPER
IF STOP
BUTTON
IS USED
3-BUTTON
STATION
*
BLUE
ORANGE YELLOW
Located inside
Electrical Box
2-WIRE MONITORED SENSING EDGE SWITCH
INTERFACE
MODULE

Genie GCL-J&H 1/2HP Specifications

General

Horsepower	1/2 HP
Drive Type	Chain Drive
Safety Sensors	Yes
Speed	7 inches per second
Voltage	120V
