5.6

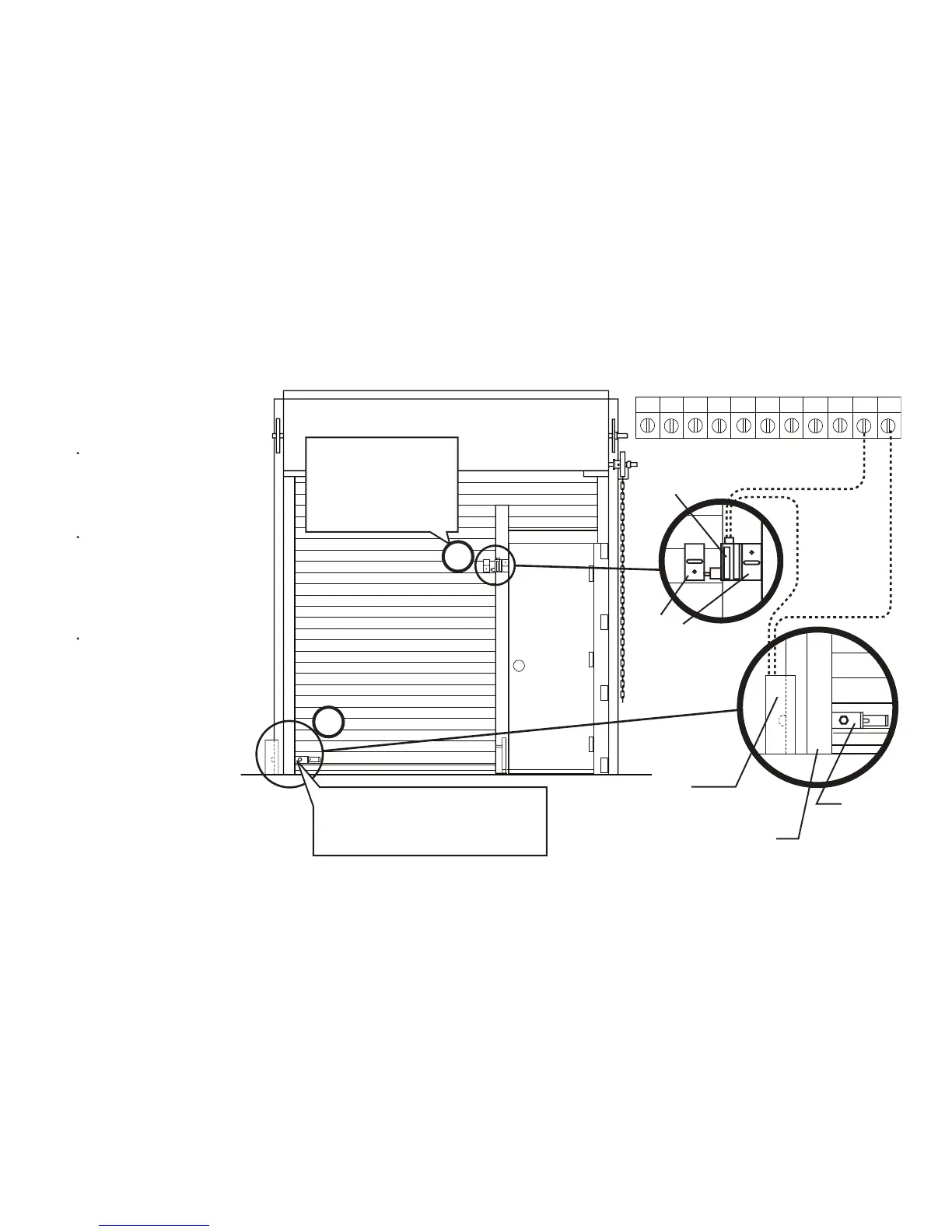

Interlock Switches (Rolling Steel)
OPEN CLOSE
STOP GND 1BTN
NO NO
REVERSE REVERSE
ODC
STB
ODC
STB
EXT
INTLK
EXT
INTLK
CONTROL SIGNAL TERMINAL STRIP
Figure 6A
NOTE: If External Interlock is used, THE JUMPER WIRE BETWEEN THE EXT INTLK TERMINALS MUST BE REMOVED.
SWITCH
075412-0000
(N.O.)
ANGLE
405964-0000
STANDARD
SLIDELOCK
TRACK
SWITCH
110325-0001 (N.C.)
Switches must
be set in
the field.
Pass door interlock:
Should be open when
door is open.
Closed when door is
closed.
Side lock interlock:
Should be open when door is locked.
Closed when door is unlocked.
B
A
1) Optional external interlock switches
are required with some Sectional or
Rolling Steel Doors to prevent the
door from operating under certain
conditions including the following:
If the door is equipped with a
functioning door lock, an
interlock switch (A) must be
installed to prevent electric
operation when the lock
is engaged.
If the door is equipped with a
pedestrian pass-through door,
an interlock switch (B) must be
installed at the pass-through
door in order to prevent
electrical operation when the
pass-through door is open.
The Switches must be set in
the field.
www.geniecompany.com 01-14
