OPEN
CLOSE
STOP
CAL SET
Figure 2
SET CLOSE DIR
6.2
OPEN
CLOSE
STOP
OPEN
CLOSE
STOP
Figure 3
Figure 4
OPEN
CLOSE
STOP
CAL
RUN
SCROLL
SCROLL
SET
CLEAR
Figure 5
CAL
RUN
SET
CLEAR
CLOSE
SCROLL
SET
CLEAR
CAL
RUN

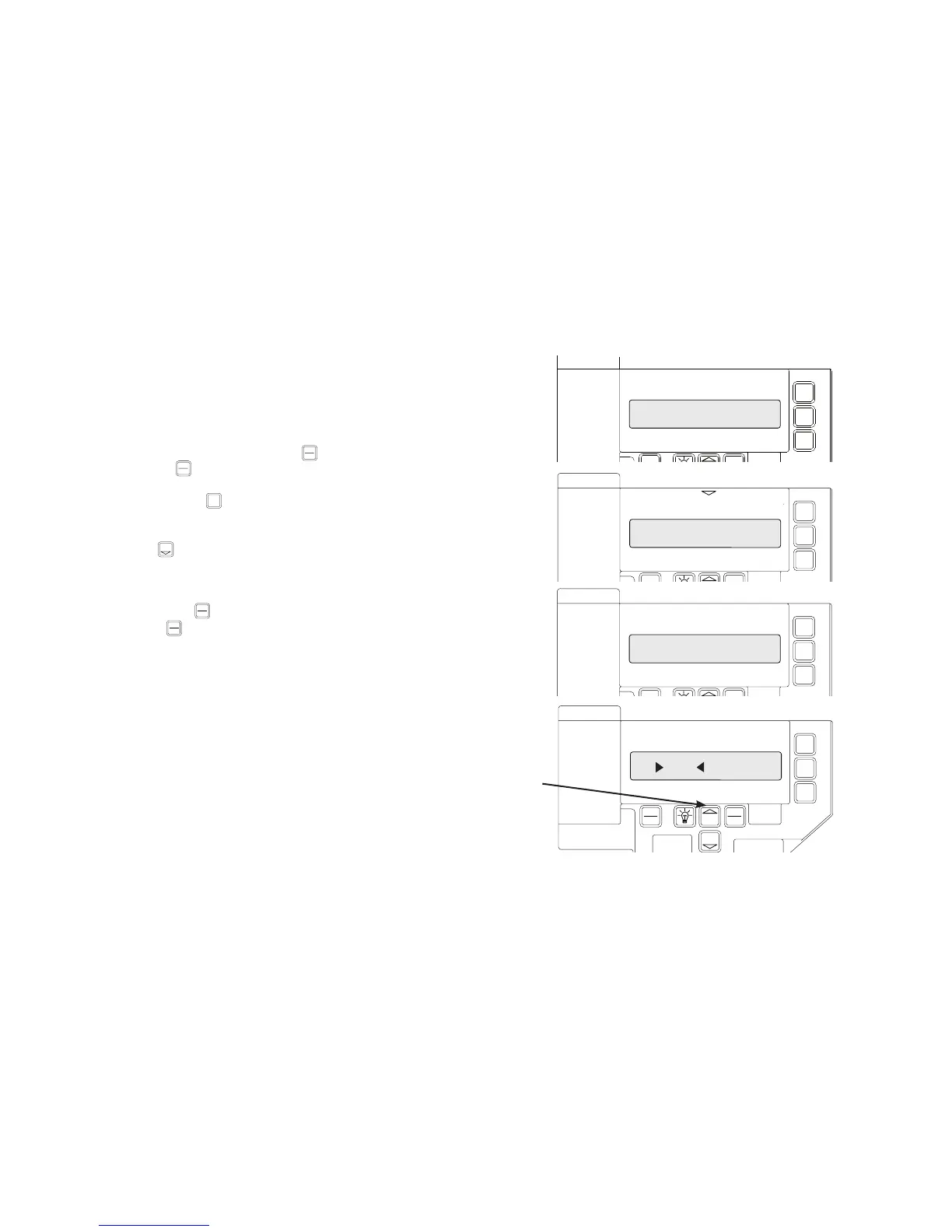

The direction of motor rotation depends on mounting position and/or how the
main input power phases are wired. This setting is used to insure the door is
closing and opening according to the input commands.
1) If operator is in RUN mode, press CAL/RUN key to enter calibration mode.
2) Press SET/CLEAR key to begin the calibration procedure and advance to
the next screen. Figure 3.
3 ) Briefly press the CLOSE key. (Pressing the Scroll key at this point will exit
this control function.)
The display will read “ DID DOOR CLOSE? “ Figure 4.
4) Press SCROLL key (up or down) to toggle between YES and NO.
Figure 5.
• If YES is selected, no change to operator calibration is made. If
NO is selected — the POD will change the operator’s down direction.
5) Press the SET/CLEAR key.
6) Press CAL/RUN key to return to run mode.
CAL SET
CAL SET
