Zenith15/25 GNSS Series - 17 -
Installation Guide © 2017 GeoMax AG, Widnau, Switzerland
5 EQUIPMENT SETUP
5.1 ROVER SETUP

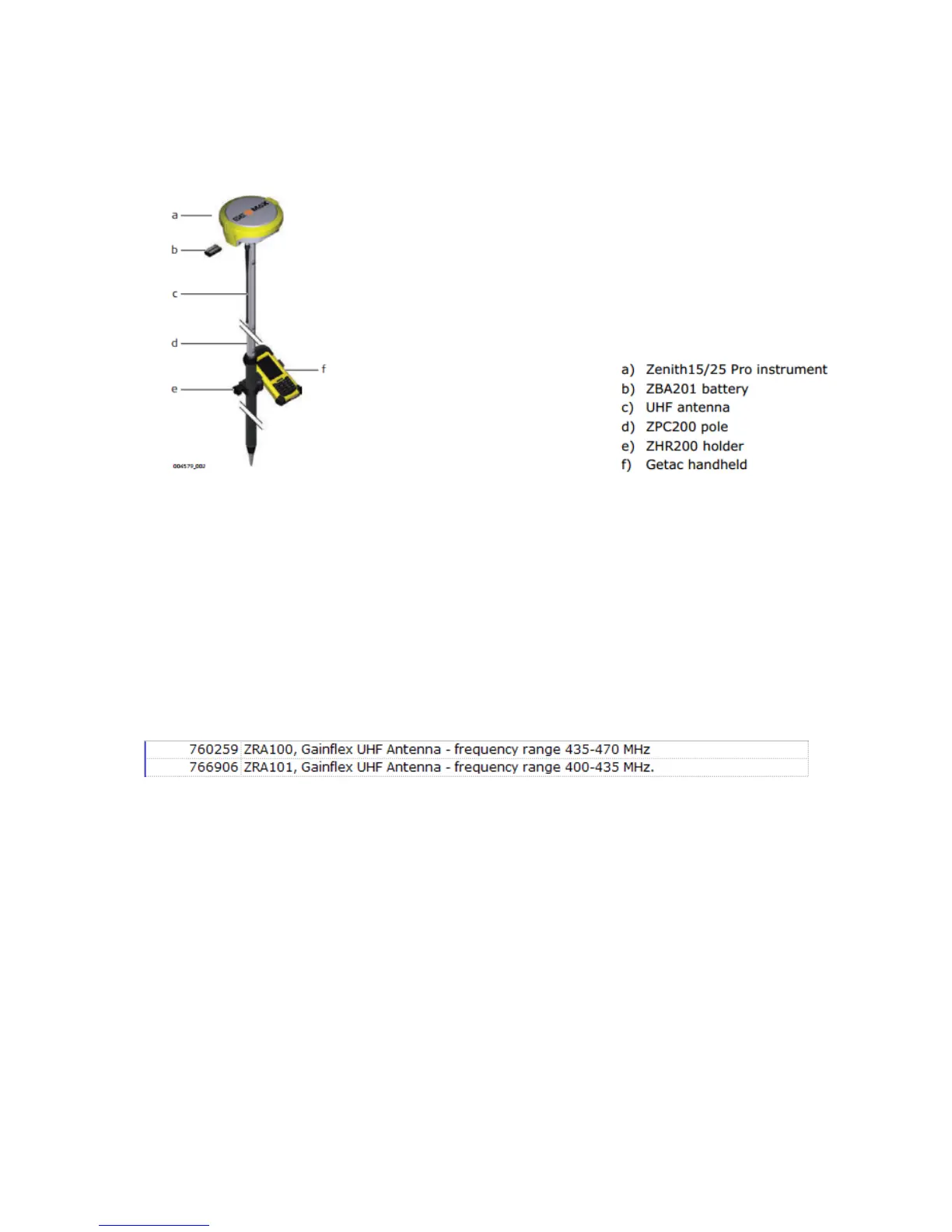

For a RTK rover, the Zenith15/25 equipment can be setup on a pole as shown below.
To use as a network rover, a SIM card needs be inserted into the slot located in the
battery compartment.
Note: The PIN must be disabled before using the SIM card.
When working with the UHF radio, ensure the correct frequency and protocol are set as
described in section 3.5. Attach a radio antenna suitable for the set frequency. The
following UHF antennas can be ordered from GeoMax:
