GeoVision GV-AS Series User Manual

GV-AS100 Controller
5
1

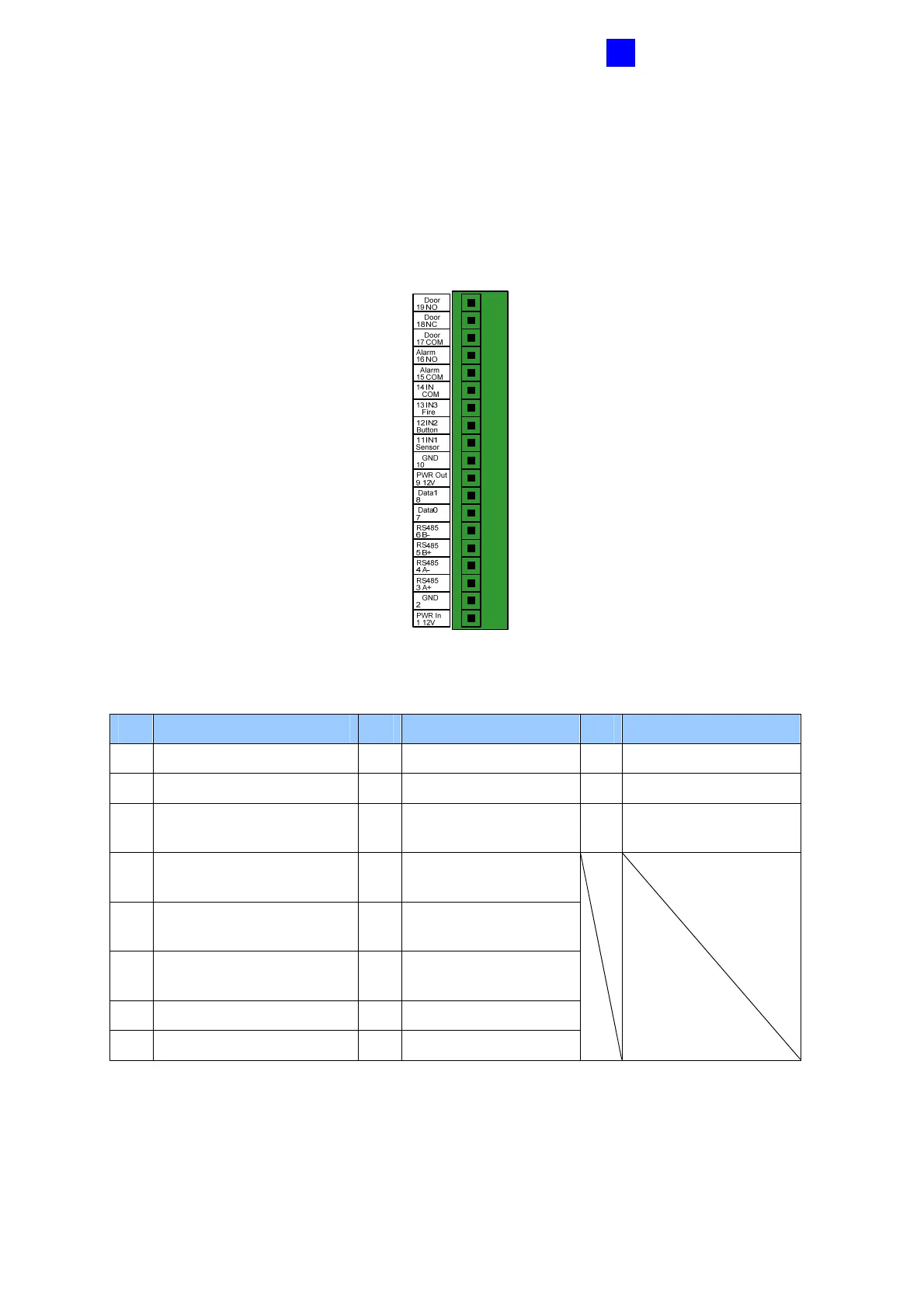

1.2 Installation
Please open GV-AS100 cabinet and wire the necessary connections to the terminal block as
illustrated below.
Figure 1-4
Pin Function Pin Function Pin Function
1 12V Power 9 12V Power Supply 17 Door COM
2 GND 10 GND 18 Door NC
3
RS-485 A+ for ASBox /
ASNet or PC connection
11 Sensor IN1 19 Door NO
4
RS-485 A-for ASBox /
ASNet or PC connection
12 Button IN2
5
RS-485 B+ for GV-
Reader connection
13 Fire IN3
6
RS-485 B- for GV-
Reader connection
14 IN COM
7 Wiegand Data 0 15 Alarm COM
8 Wiegand Data 1 16 Alarm NO
