52 GS750
plus

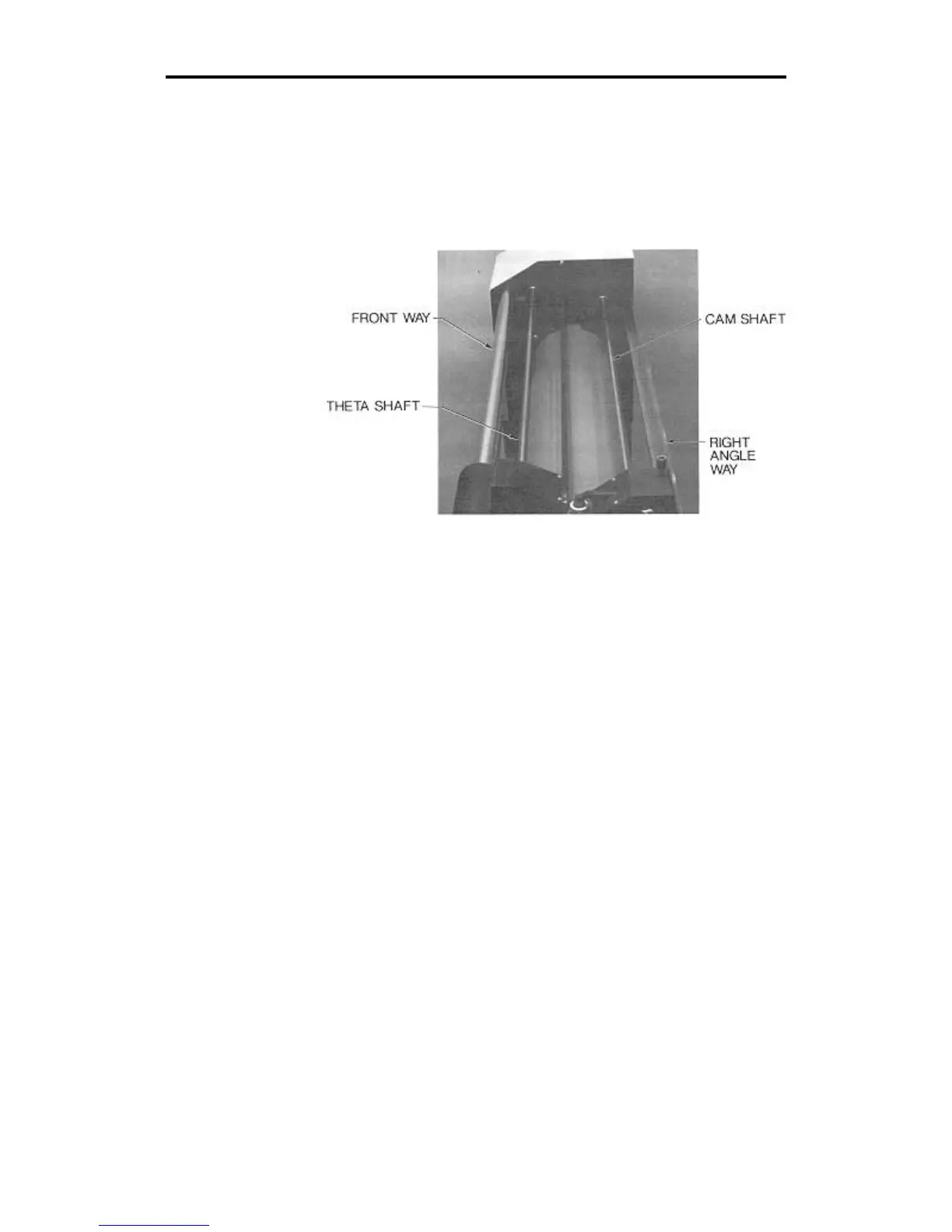

CARRIAGE AND BALL BUSHING
1. Use a lint-free cloth and alcohol to clean dust or debris from
the front way, drive shaft, cam shaft and theta shaft. Rotate
the cam shaft and theta shaft (the front way does not turn) and
move the carriage spindle for access to the entire length of
these shafts.
2. Apply a light coat of oil with a lint-free cloth to the front way,
cam shaft, right angle way, and theta shaft.
