66 GS750
plus

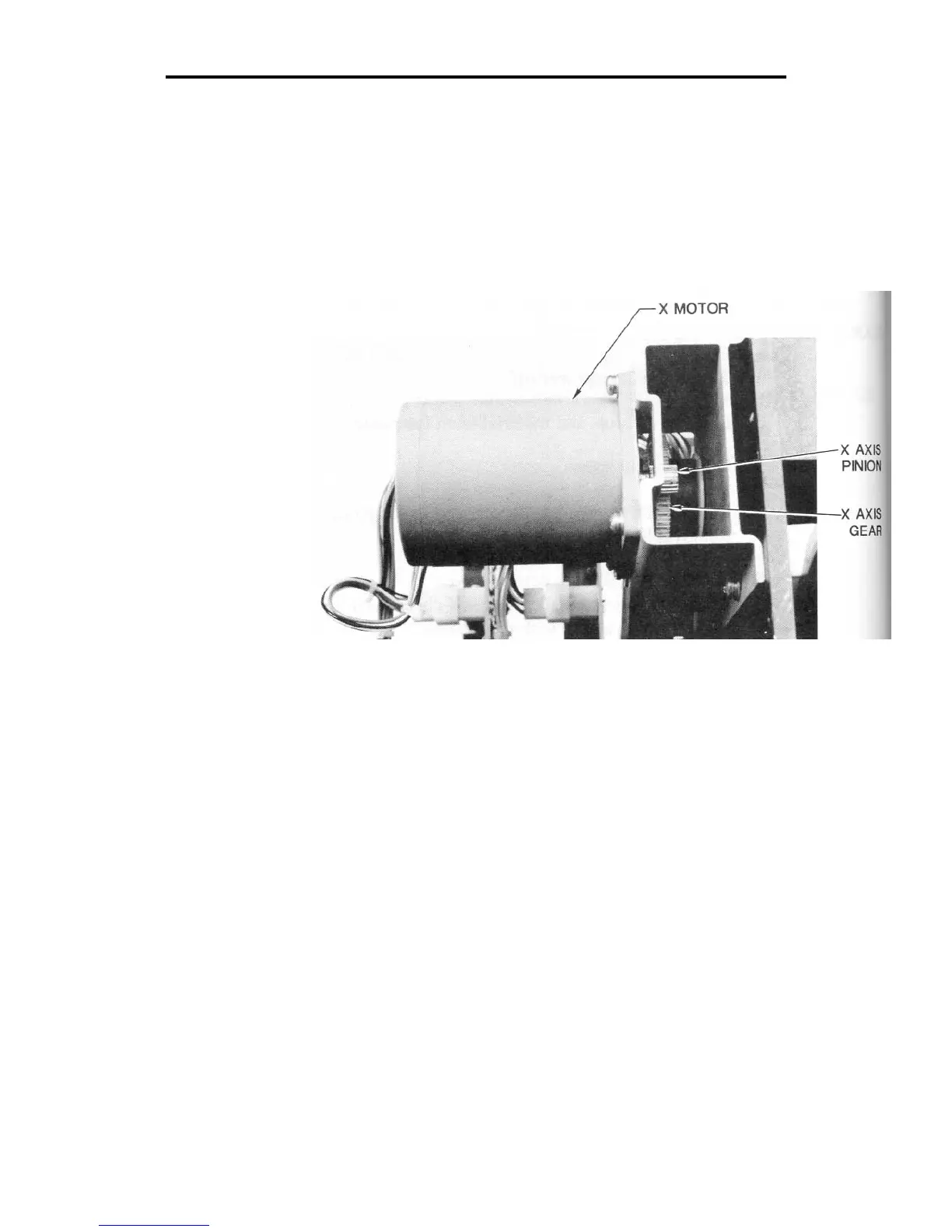

6. Locate the X axis gear and the X motor pinion which are
directly behind the X motor. These two gears are meshed
together. Gently push back and forth on the drum in the
direction the material normally moves. Notice if the X axis
gear moves while the pinion remains stationary. If the pinion
remains stationary (i.e., if there is backlash), proceed to step
7. If the pinion moves with the X axis gear (i.e., if there is no
backlash), proceed to the section for Y Axis Backlash
Adjustment.
