13
Ref Component Descripti on See Al so
Micro HDMI
Connector
Connects a HDMI monitor or TV set. P. 46
Combo Audio
Connector
Connects a set of headphones or external
speakers with amplifier
P. 46
Supports a headset microphone with 4-pole
TRRS 3.5mm jack.
Power Connector
Connects the AC adapter. P. 5

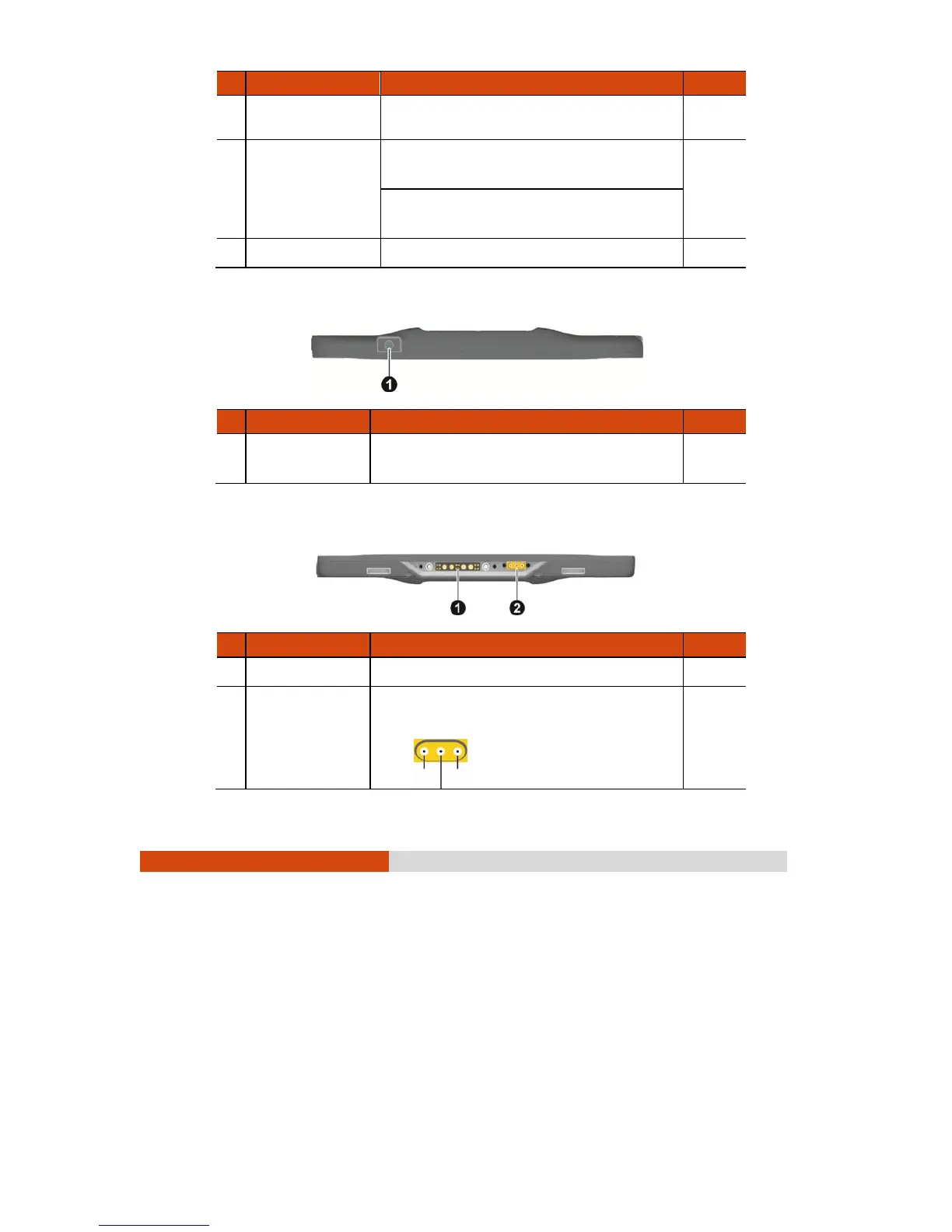

Top Components
Ref Component Descripti on See Al so
Tr igger Button
(optional)
ctivates the barcode scanner for single barcode
scanning.
P. 44
Bottom Components
Ref Component Descripti on See Al so
Docking Connector
Reserved.
Antenna Pass-
through
(optional)
Connects to the docking station for using external
GPS/WLAN/WWAN antenna.
WWAN
WLAN
GPS
To Next Page
