Adjustments
Adjusting the Oasys spring arms
32 / 56
Maquet Volista
NM 01780 EN 03

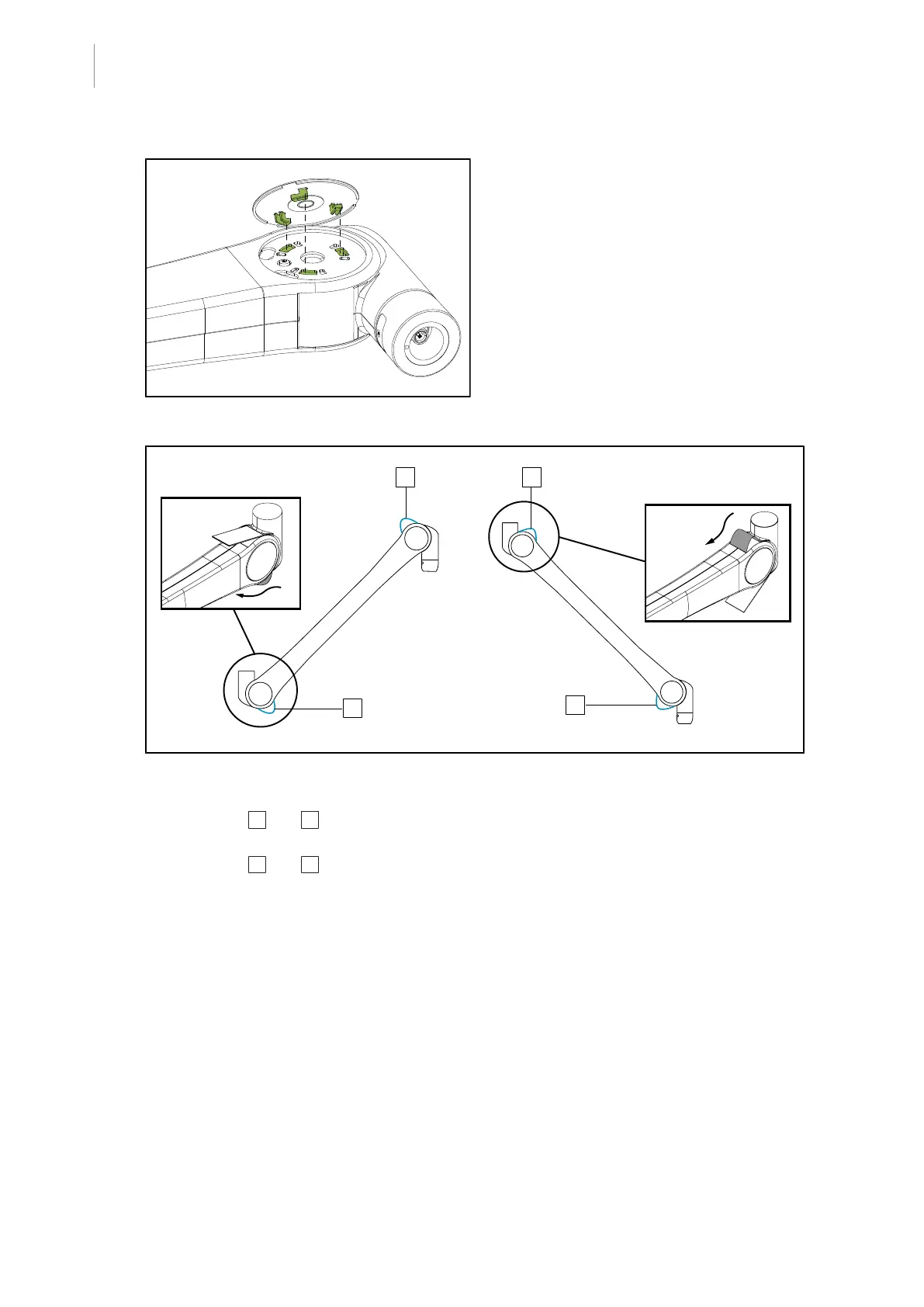

Fig.26: Fitting the round covers
• Position the round cover so that the three
tabs are facing the oblong holes in the
side covers.
• Press the cover slightly, then turn clock-
wise until you hear a locking “click”.
• Checking that the round covers are se-
curely fastened
1
2
3
4
Fig.27: Mounting the tabs
• Position the spring arm in the raised position.
• Insert tabs 1 and 2 in the side covers, according to the spring arm position.
• Position the spring arm in the lowered position.
• Insert tabs 3 and 4 in the side covers, according to the spring arm position.
• Check that the tabs slide correctly in the side covers.
