5.4 Adjusting the Valia spring arms
SF version
1
2
3
4
5

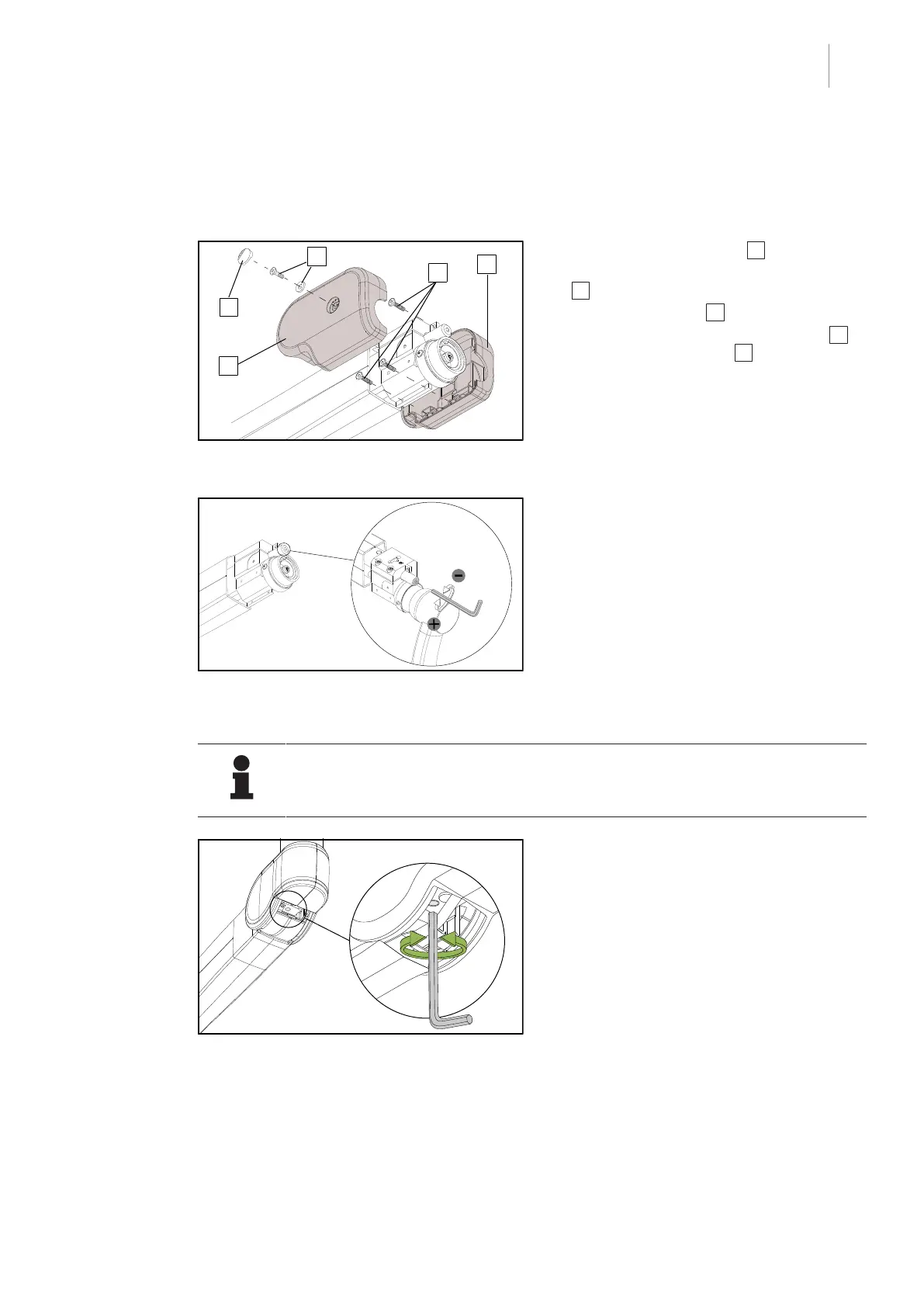

Fig.28: Removing the front flanges
• Remove the screw cover 5 .
• Remove the washer with the M4x10 screw
4 .
• Remove the flange 3 .
• Unscrew the three PT M3x12 screws 2
then remove the flange 1 .
Fig.29: Adjusting the top stop
• Insert a 5-mm Allen key.
• Tighten to raise the stop to + 20 degrees.
• Tighten to lower the stop to 0 degrees.
NOTE
TIP: To make the adjustment easier, pull the arm slightly downwards to release the
adjustment screw
Fig.30: Adjusting the tension
• Position horizontally and push back the
tab halfway to access the adjustment
screw.
• Insert a 5-mm Allen key.
• Tighten to decrease the tension.
• Loosen to increase the tension.
