Getnet GR-124W User Manual

8

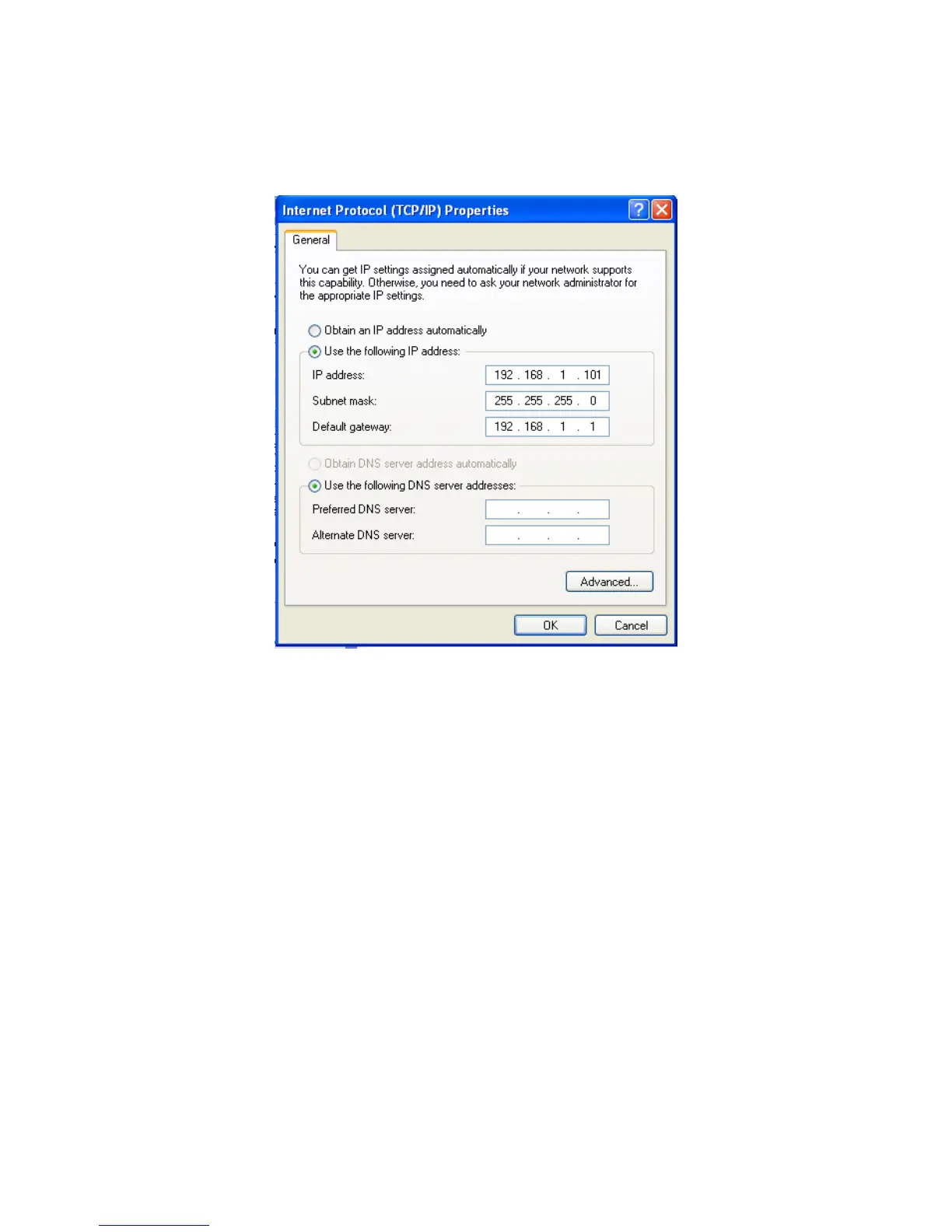

Step4 Select Use the following IP address and enter the IP address of the
network adapter. The IP address should belong to the IP network segment
192.168. 1.X (X is a number between 2 and 254).
Step5 Set subnet mask and then click the OK button to finish manual setting.
Step6 After finishing setting, you may ping the default IP address of the
GR-124W, to check whether the current connection between PC and the
GR-124W is normal. Click RUN… in the lower left corner on the desktop,
and then enter ping 192.168.1.1 in the dialog box. See the following
figure:

Getnet GR-124W Specifications

General

Brand	Getnet
Model	GR-124W
Category	Wireless Router
Language	English
