- Off No WAN connection.
LAN
1/2/3/4
Green On LAN connection succeeds.
Green Blink Data is being transmitted.
- Off No LAN connection.

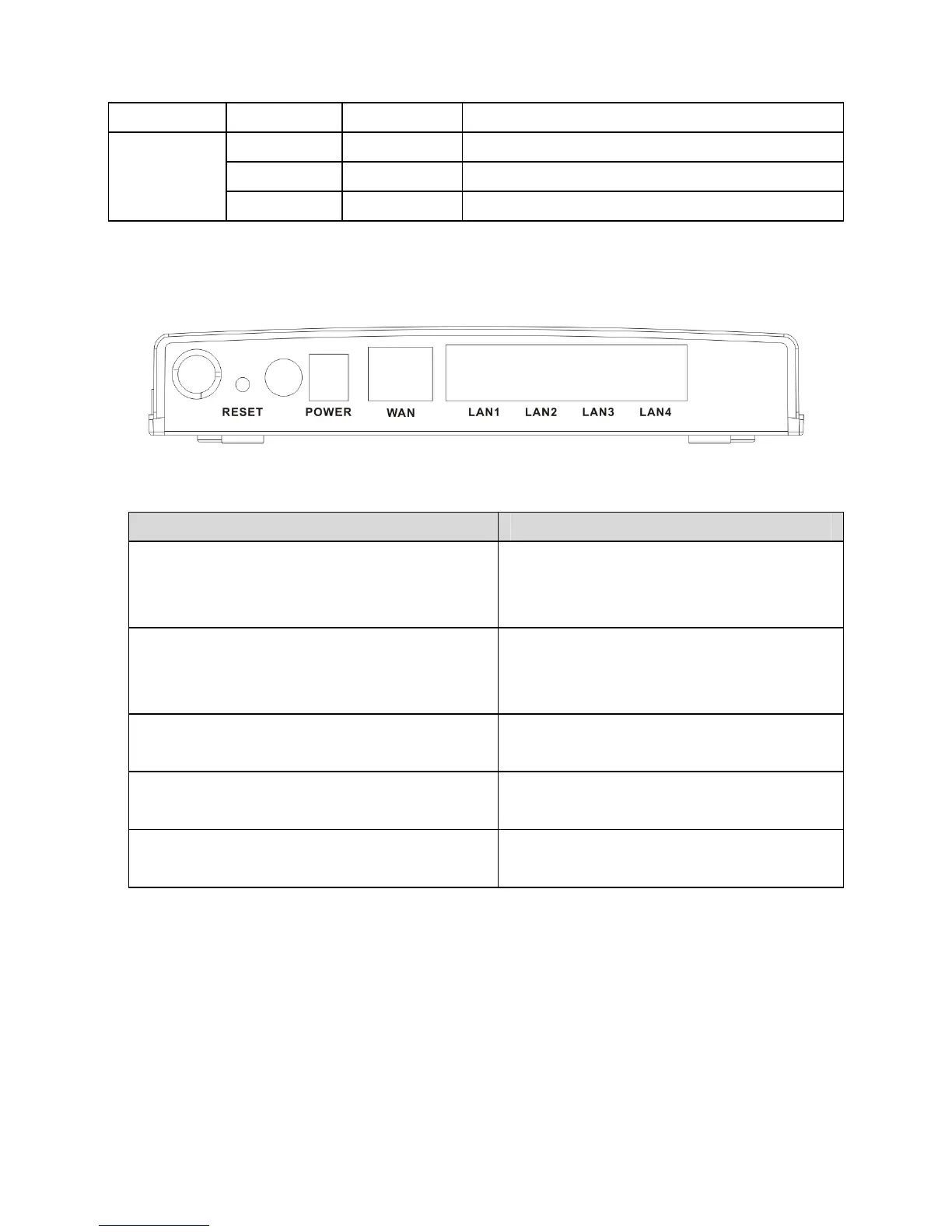

2.2 Rear Panel and Interface Description
The following table describes the interfaces or the buttons on the rear panel:
Interface/Button Description
Reset Press the button for 3 seconds and
then release it. System restores the
factory default settings.
ON/OFF By pressing the button, the power is
on. Press the button again, and then
the power is off.
POWER Power socket, for connecting the
power adapter.
WAN WAN interface, for connecting WAN or
the uplink network devices.
LAN1~LAN4 LAN interface, for connecting hub,
switch, or computer on LAN.
Note:
Do not press the Reset button unless you want to clear the current settings. The
Reset button is in a small circular hole on the rear panel. If you want to restore the
default settings, please press the Reset button gently for 3 seconds with a fine
needle inserted into the hole and then release the button. The system reboots and
returns to the factory defaults.
