Getnet GR-124W User Manual

50

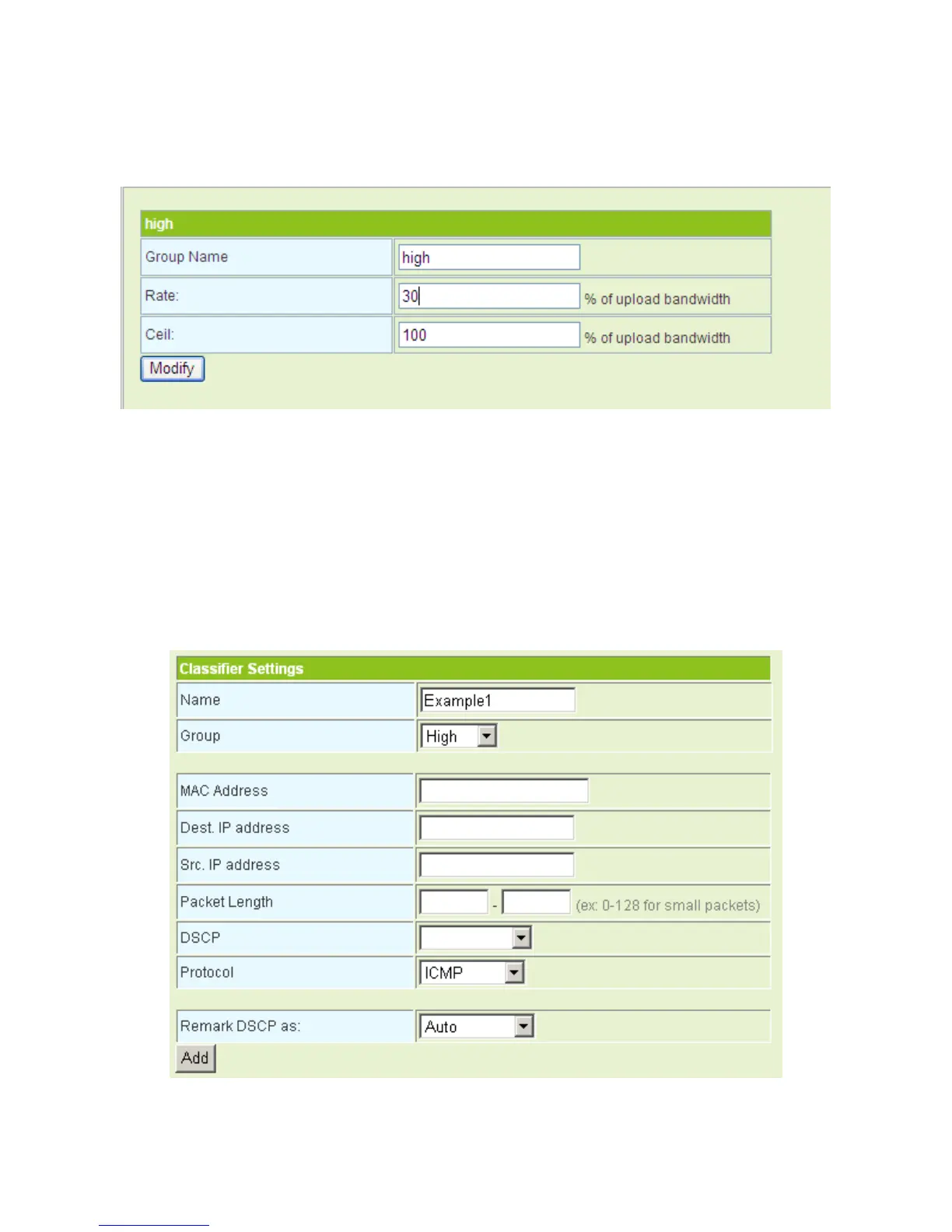

After enabling QoS, system establishes 4 groups. Click the Modify button of the
corresponding group, and you can modify the attribute settings of the corresponding
group. Let’s take High group as an example.
On this page, set the Rate value to be 30. If the upload bandwidth is 2Mbps, when the
data flow is large, it indicates that the minimum bandwidth that High group can share
is 30% of the total bandwidth, that is, 06 Mbps. When the data flow is little, the
maximum bandwidth that High group can share is 100% of the total bandwidth, that is,
2Mbps.
- Add a QoS Rule
Click the Add button on the Quality of Service Settings page to display the
Classifier Settings page.
On this page, you can add a QoS group. For example, set the name to be Example1,
add it to the High group, and select the ICMP protocol.

Getnet GR-124W Specifications

General

Brand	Getnet
Model	GR-124W
Category	Wireless Router
Language	English
