46

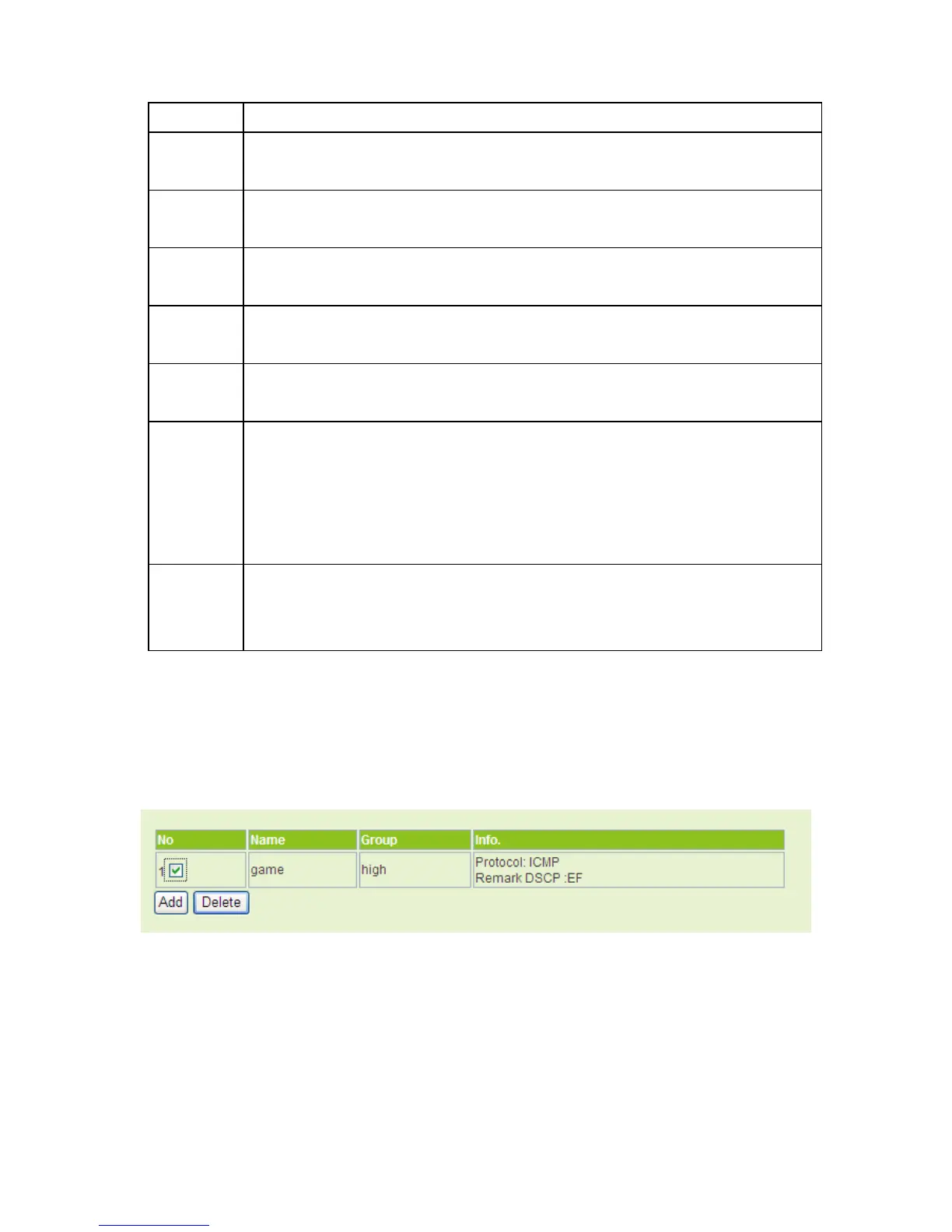

Group Select the group that the rule belongs to.
MAC
Address
The source MAC address of the rule. If data packets include the
MAC address, the data packets are placed into the group.
Dest. IP
address
The destination IP address of the rule. If data packets include the
IP address, the data packets are placed into the group.
Src. IP
address
The source IP address of the rule. If data packets include the IP
address, the data packets are placed into the group.
Packet
Length
The packet length of the rule. If data packets match the packet
length, the data packets are placed into the group.
DSCP The DSCP mark. If data packets include the DSCP, the data
packets are placed into the group.
Protocol The protocol types include TCP, UDP, ICMP, and Application. If
data packets match the protocol, the data packets are placed into
the group. When selecting TCP or UDP, you need to set Src Port
and Src Port ranges. When selecting Application, you may select
a proper protocol in the drop down list.
Remark
DSCP
as
If data packets match the parameters above, you can determine
whether to remark DSCP. The default setting is Auto.
After finishing the settings, click the Add button to add the new rule.
Delete a QoS Rule
If there are QoS rules in the QoS rule table, and you want to delete a QoS rule, you
can select the rule, and then click the Delete button to delete this rule.
Load Default Settings
Click the Load Default button on the Quality of Service Settings page, system will
load the default QoS rules. See the following figure:
