78
WPS modes include PIN and PBC. For more details, please refer to WPS
Applications.

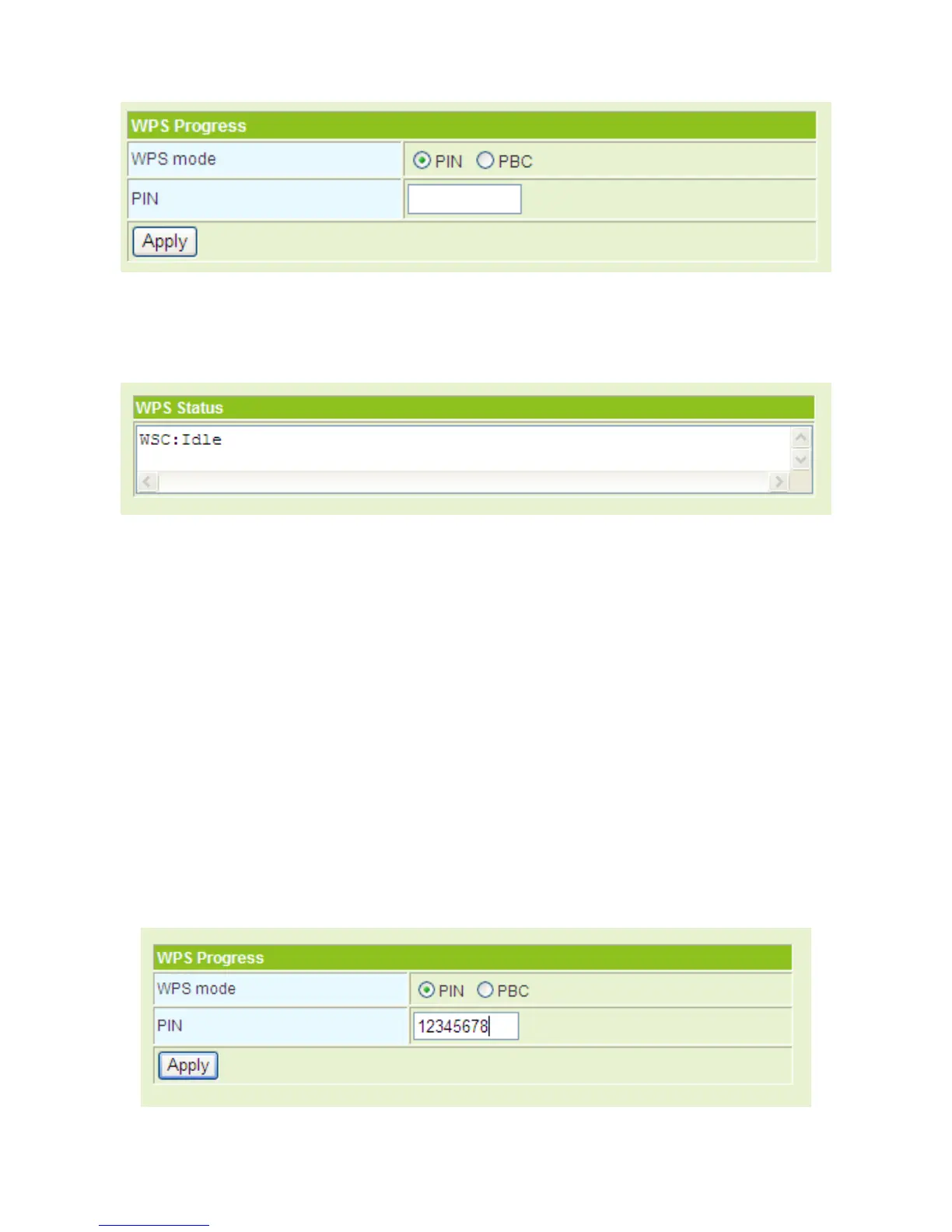

WPS Status
The figure above displays WPS current status.
WPS Applications
This page provides two WPS modes, including PIN and PBC modes.
At present, WPS supports three types of operation modes, including Enrollee mode,
Registrar mode, and PBC mode. Enrollee and Registrar modes need to apply PIN
negotiation.
- Enrollee Mode
Step1 Select the enrollee mode on the wireless client, and the software of wireless
client generates a random PIN code, for example, 12345678.
Step2 On the Wi-Fi Protected Setup page, enter the PIN code of wireless client,
for example, 12345678.
Step3 Click the Apply button on the Wi-Fi Protected Setup page to submit the
setting.
