Gewa G9 - Performance; Module 1: Drum Kit

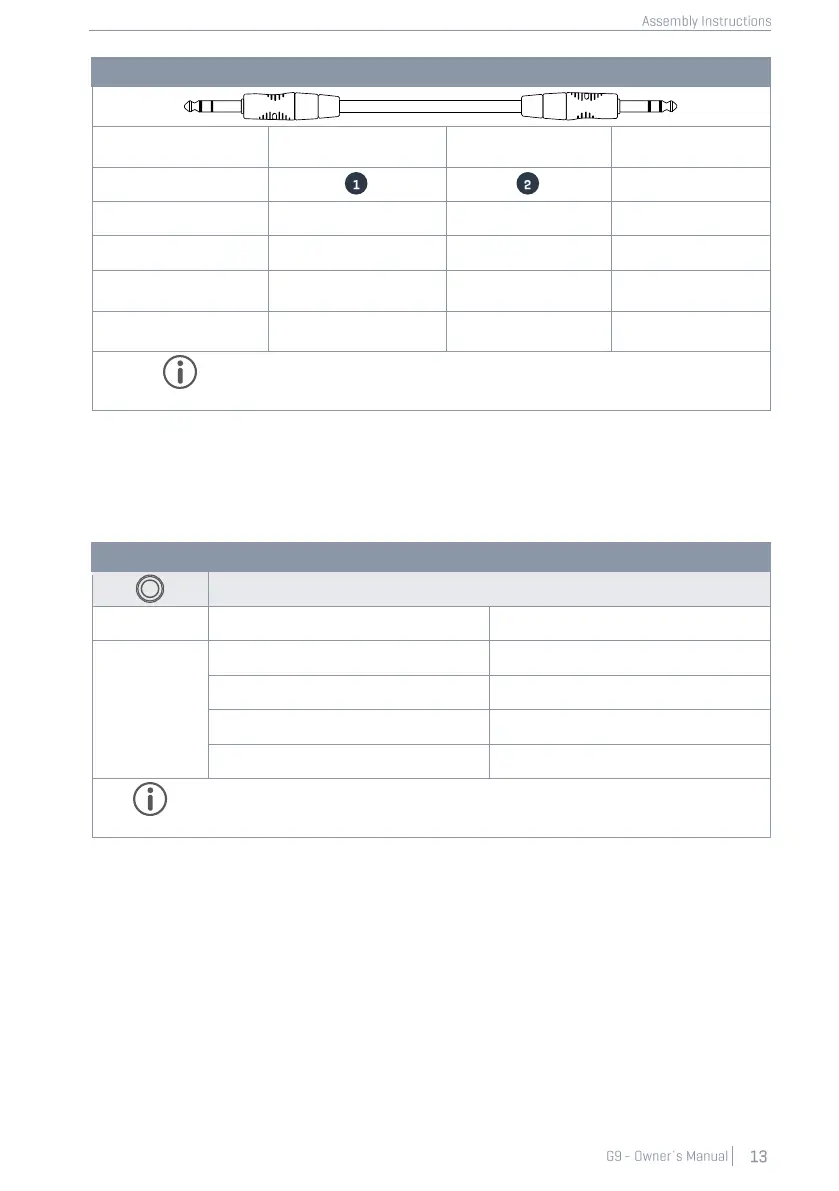

Connecting other Cymbals
Cymbal Type
Components
Components
Trigger Type
(Trigger Settings)
Single Zone Cymbals
Edge
Not Used
Single/Dual
2-Zone Cymbals
Bow|Edge
Not Used
Dual
3-Zone Cymbals without
extra Bell output
Bow|Edge|Bell
Not Used
Dual
3-Zone Cymbals with
extra Bell output
Bow|Edge
Bell
3Way
Hint
Different cymbal types will only work in conjunction with the matching
Trigger Type. For more information please refer to section 11.3.2.3 Trigger
Type on page 95.
3.2.3.3 ANALOGUE CYMBALS WITH SEPARATE BELL CHANNEL
Cymbal Pads with extra Bell output can connect to GEWA consoles in different ways. See the follow-
ing table for all possible pairs of Bow/Edge and Bell channel combinations:
GEWA Inputs for analog Cymbals with separate Bell Channel
Cymbal Component
Bow/Edge
Bell
Input
Channel
Ride
Aux 1
Aux 1
Aux 2
Aux 2
Aux 3
Aux 3
Aux 4
Hint
Cymbals with separate Bell channel require Trigger Type 3Way to be set for the
Bow/Edge Input Channel (Bow component). For more information please refer to
section 11.3.2.3 Trigger Type on page 95.
All other analogue pads connect as shown in the rear panel.
