ECturn
14
Mounting

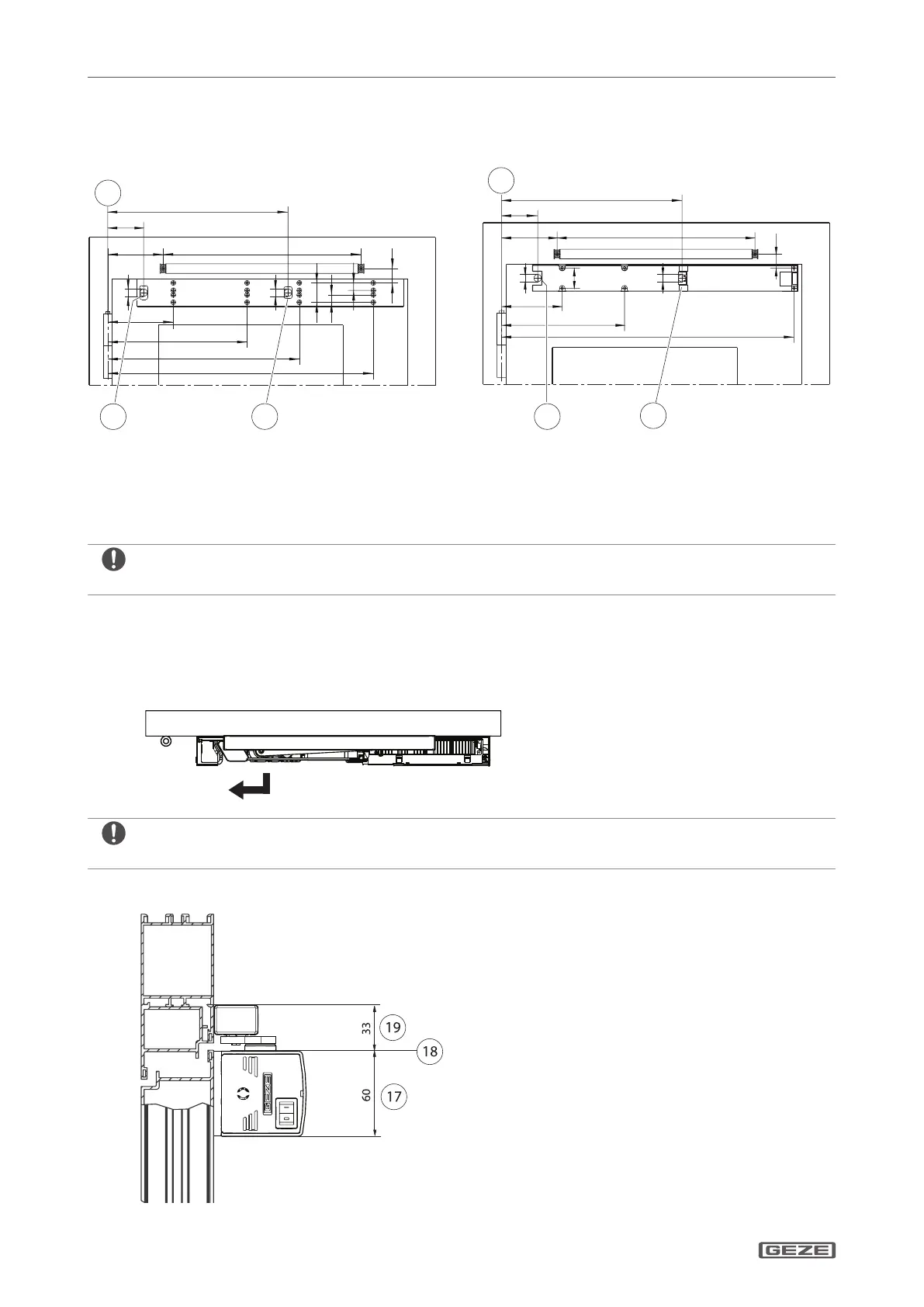

Door panel mounting hinge side with guide rail8.2.5
Fixing with mounting plate Direct xing





 
 







 


 





 


14 Dimensional reference hinge middle
15 Cable entry for power supply cable
16 Cable entry for control cables
Observe drilling template: DIN left and DIN right mirrored.
X
Fastening means
Mounting plate M5 à
Base plate M5 or chip board screws à
Guide rail M5 or chip board screws à
Take drive orientation into account: Motor towards hinge.
X
Required space
17 ECturn required space
18 Dimensional reference top edge door prole
19 Required space for guide rail
