GEZE ECturn Mounting Instructions

ECturn
8

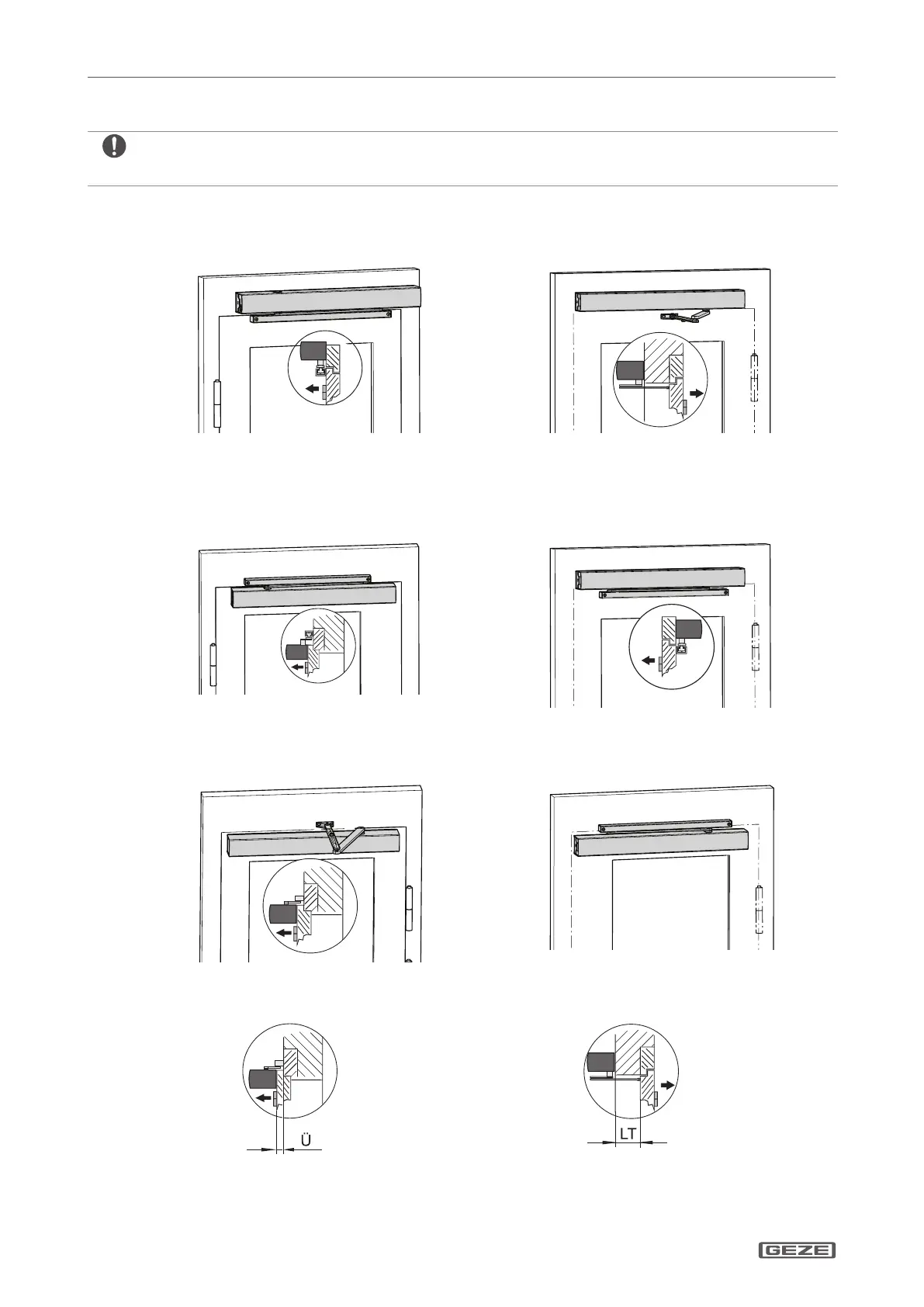

Types of mounting, stops
Types of mounting, stops7
The opening angle of the door has to be limited by a door stop.
Accessories: Door stop buer, integrated opening restrictor (only for guide rail).
The ECturn allows the following types of stop, each for doors DIN left and doors DIN right:
Hinge side Opposite hinge side
Transom mounting hinge side
with guide rail
max. sot depth SD: 40 mm
max. door overlap O: 40 mm
Transom mounting opposite hinge side
with link arm for
sot depths SD: 0…100 mm
90…200 mm
Door panel mounting hinge side
with guide rail
max. door overlap O: –50…+30 mm
Transom mounting opposite hinge side
with guide rail
max. sot depth SD: 30 mm
Door panel mounting hinge side
with link arm
max. door overlap O: 200 mm
Door panel mounting opposite hinge side
with guide rail
max. sot depth SD: 20 mm
O Door overlap SD Sot depth
