ECturn
19
Electrical connection
Connect the door transmission cable in the terminal strip (35) in accordance with the wiring diagram.
X
Connect the protective conductor and secure with screw (34).
X
Place on the cover (28) for the side element.
X
Tighten screws (27).
X

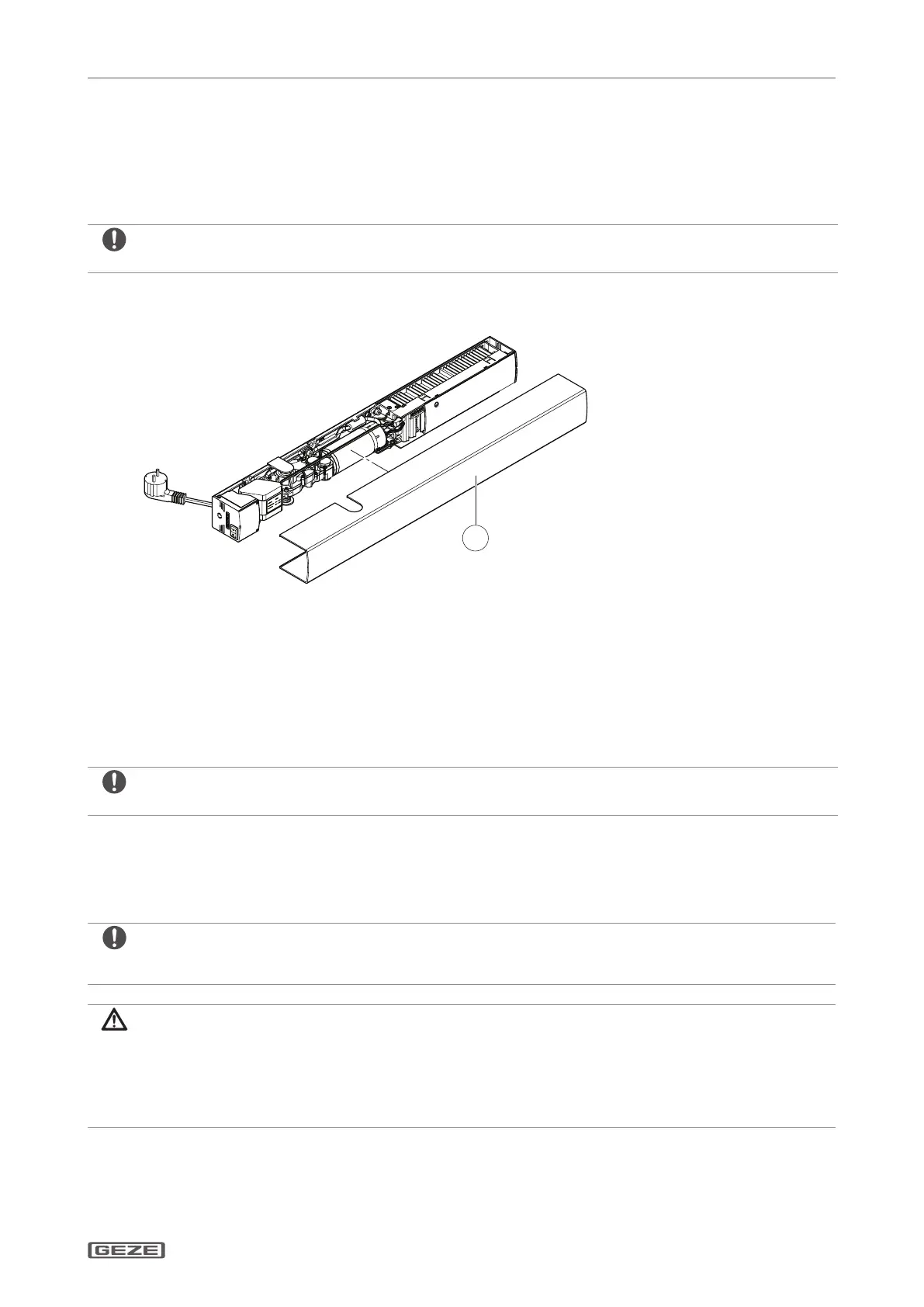

Mounting the hood (optional)8.9
During mounting ensure that cables are not pinched.
X
Slide the hood (36) over the ECturn until it latches in audibly. Take the position of the drive axle of the motor-
X
gearing unit into account.
Mounting the actuation sensors8.10
Sensors mounted on the wall or ceiling have to be positioned so that the door does not move through the eld
of detection of the sensor during opening and closing since self-actuation is otherwise possible.
For electrical connections, see the wiring diagram.
Mounting the radio circuit board (optional)8 .11
Observe the mounting instructions in the packaging of the radio circuit board DCU702.
X
Electrical connection9
Mains connection9.1
The ECturn swing door drive is provided with a power plug in the factory. If there are cables provided by the
customer and connection is not carried out with the power plug, the power connection has to be carried out by a
qualied electrician.
WARNING!
Danger of fatal injury through electric shock when connecting the ECturn swing door drive without a power
plug.
The electrical system (230 V) may only be connected by a qualied electrician!
X
Observe the VDE regulations.
Use suitable means of fastening such as anchors, rivet nuts, etc.
X
