ECturn
20
Electrical connection
When mounting the door panel take care of the pinch and shearing points of the door edges when laying the
X
cables!
Before working on the electrical system, disconnect the system from the mains network.
X
If it exists, unplug the battery.
X
In accordance with the valid regulations it must be possible to deenergize the door drive at a suitable point. à
In the case of a xed connection by the customer, provide an all-pole disconnecting device.
X
If exible cables are used, always use insulated wire-end ferrules.
X

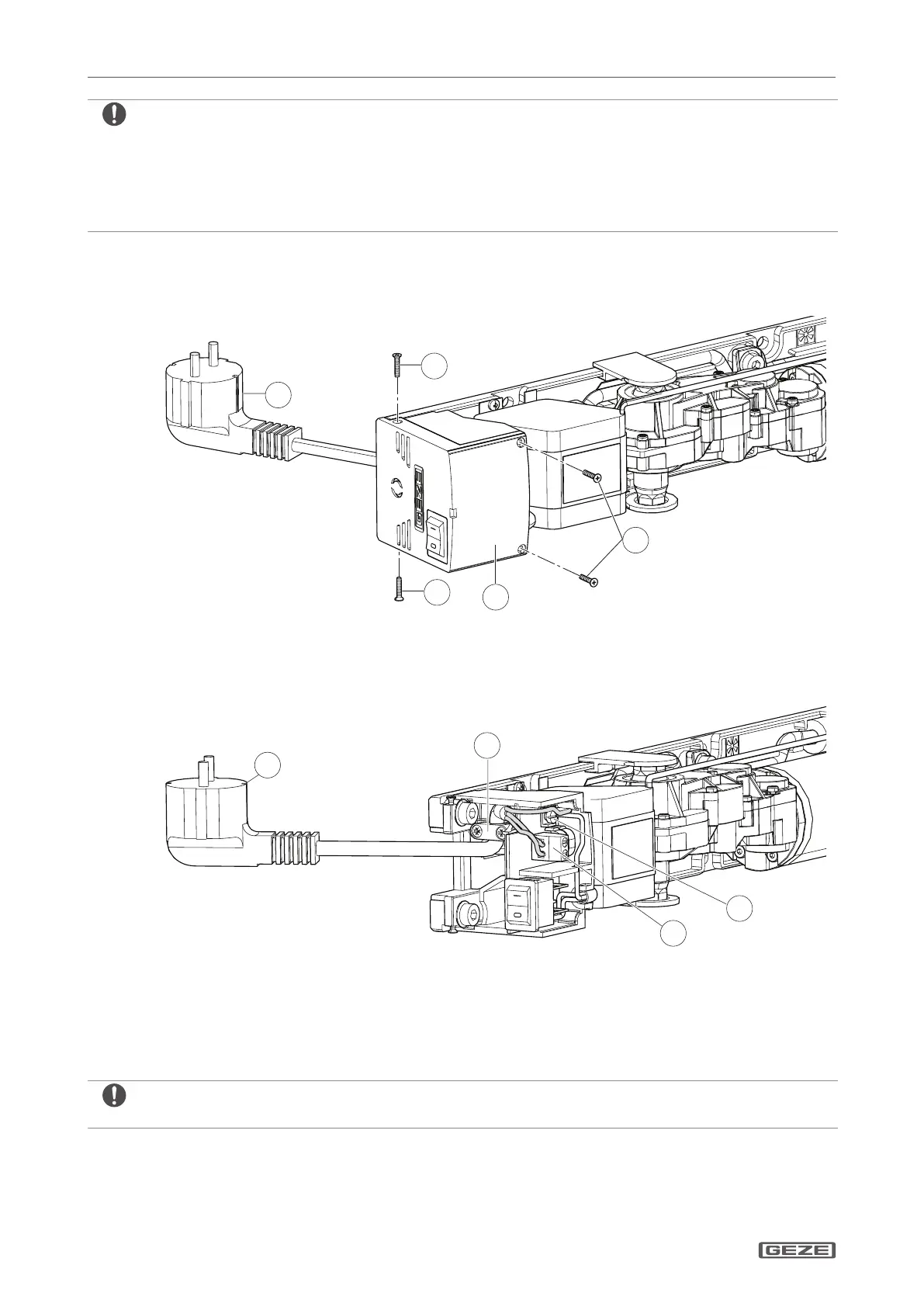

Plug in the power plug (32).
X
If there are cables provided by the customer and connection is not carried out with the power plug:
Loosen bolts (27).
X
Remove the cover (28) for the side element.
X
Loosen the strain relief (33).
X
Loosen the screw (34) and pull o the protective conductor.
X
Loosen the cable at the terminal strip (35).
X
Remove the power plug (32) with cable.
X
Connect the 230 V power cable in the terminal strip (35) in accordance with the wiring diagram.
X
Connect the protective conductor and secure with screw (34).
X
The sheath of the power supply cable must be laid to the strain relief (33).
Tighten the strain relief (33).
X
Place on the cover (28) for the side element.
X
Tighten screws (27).
X
