Mounting the drive8.3
During mounting ensure that the connection cables are not pinched.
X
Pull the hood o.
X
If necessary, screw on the mounting plate.
X
Screw on the drive.
X
For positioning refer to the top view in the drawings of Chapter 8.2.
Break out the plastic part in the hood for the spindle.
X
Mount the spindle cover.
X
Fill in the information plate and stick it clearly visible onto the drive unit.
X
Attach the hood.
X
Use the supplied M5 screws or chip board screws.
X
Mounting the guide rail8.4
Mounting the lever8.4.1
In order to mount the lever use only the supplied hexagon socket-head screw with coating in the lower thread
X
section!
Mounting the guide rail8.4.2
Observe the mounting instructions for the guide rail.
X
The slide block can be clipped out of the lever for dismantling.

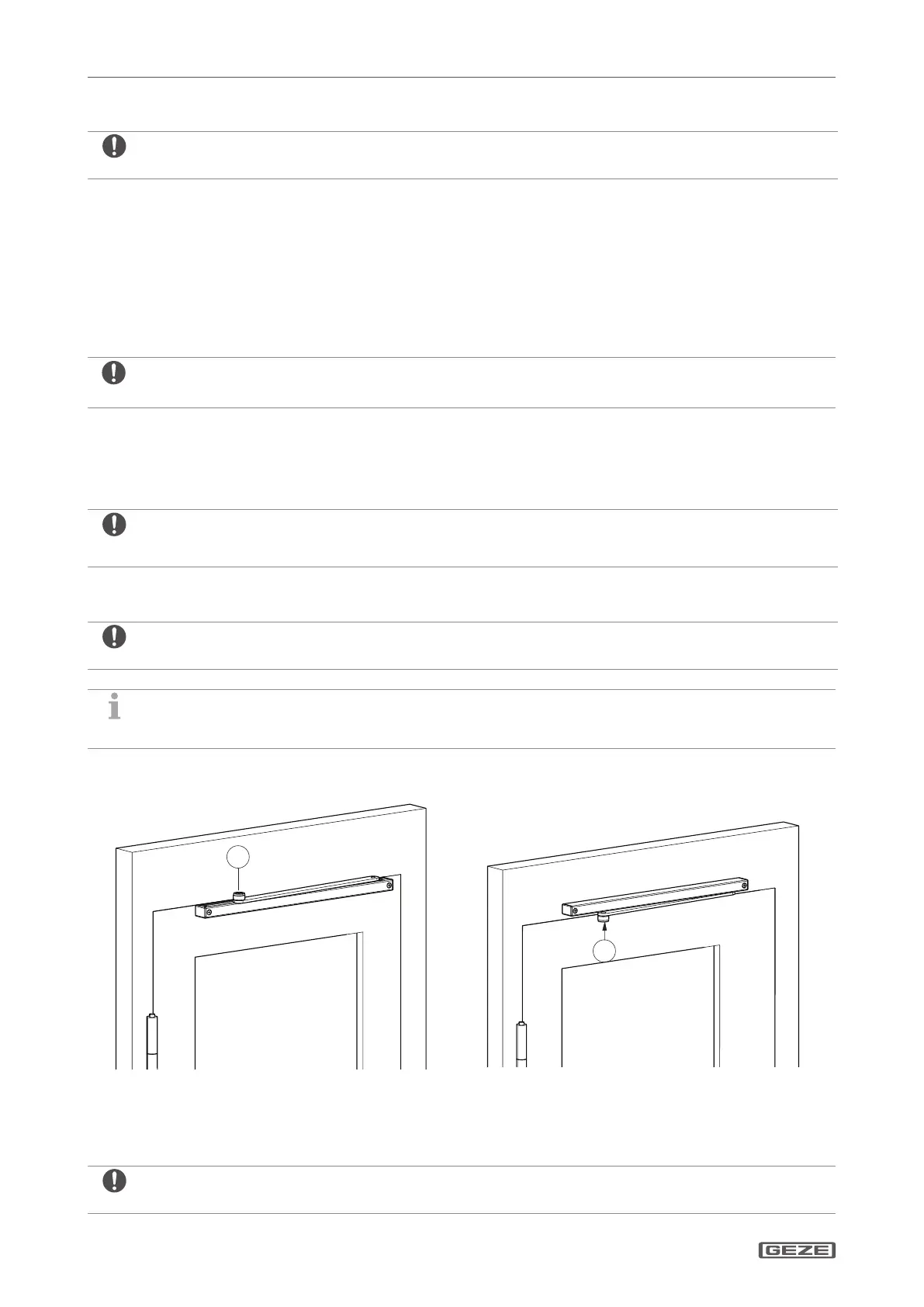

Transom mounting guide rail
Door panel mounting guide rail
Screw in the hexagon socket-head screw (23) and tighten it (tightening torque 15 Nm).
X
Mounting the link arm8.5
Observe the mounting instructions in the link arm packaging.
X
