Transportation and storage
Transportation and storage4
CAUTION!
Damage to the ECturn swing door drive through hard knocks and falls!
Do not throw or let drop the ECturn.
X
Store dry. Protect from moisture during transportation and storage. à
Storage temperatures under –30 °C and over + 60 °C can result in damage to the device. à
Tools and aids5
Tool Size
Tape measure –
Marking pen –
Set of Allen keys –
Screwdriver set Slotted 3 mm, crosstip
Side-cutting pliers –
Crimping pliers for cables –
Wire stripper –
Multimeter –
Display programme switch (Mat. No.
103940)
–
Product description6
System description and technical data6.1
The ECturn is a swing door drive operating fully automatically that is actuated by sensors or switches.
The ECturn operates electrically during opening and closing.

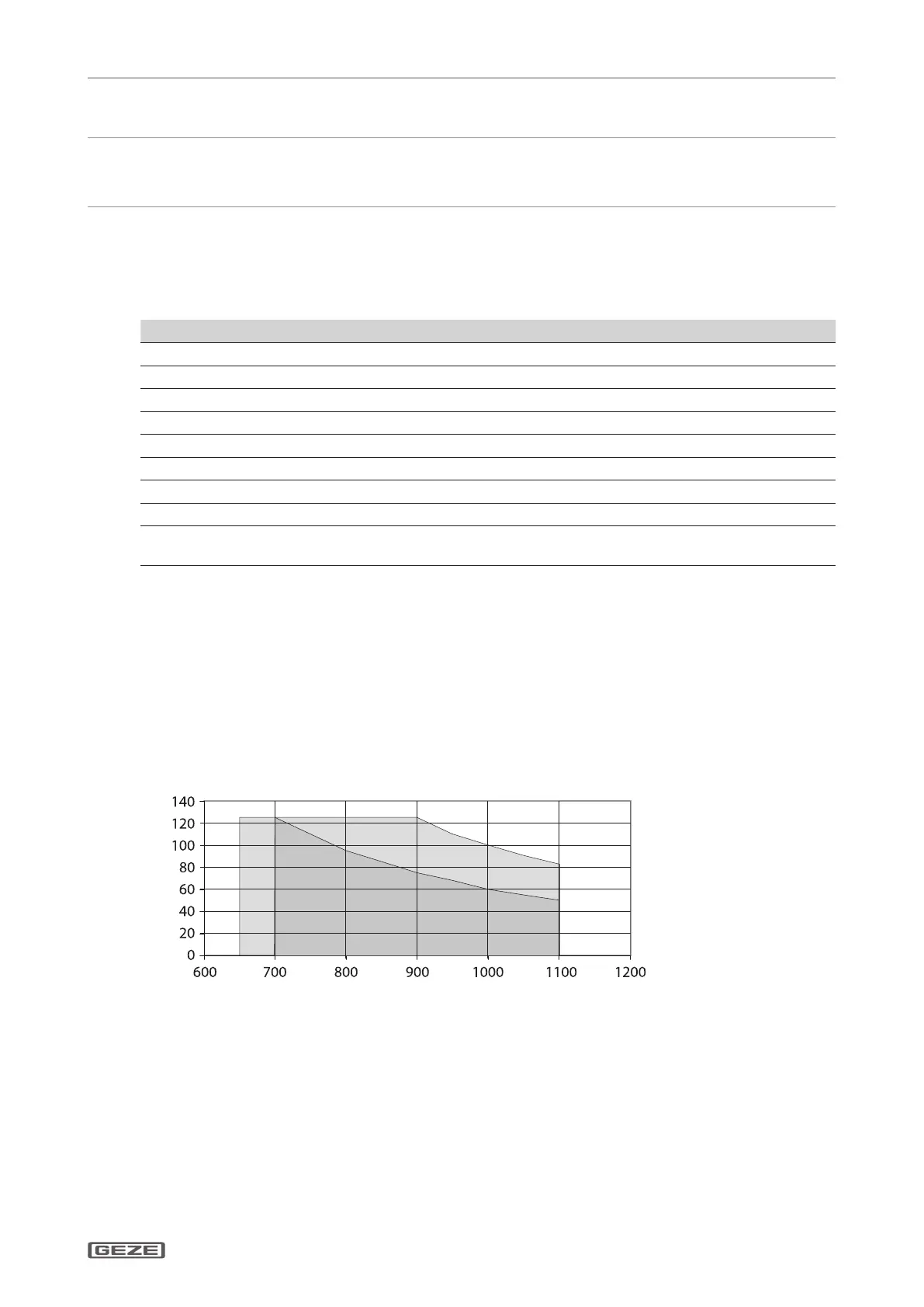

ECturn eld of application
Light grey Low energy Dark grey Automatic
Mechanical data
Dimensions (H x D x L): 60 mm x 60 mm x 580 mm à
Ambient temperature range: –15 °C to +50 °C à
Drive mass: approx. 3 kg à
Electrical data
Mains connection: 110–230 V AC +10% –14%, 50/60 Hz à
Power consumption: max. 75 W à
Externally connectable devices: 24 V DC, max. 600 mA à
