Hardware Installation - 16 -
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
Make sure that the motherboard supports the memory. It is recommended that memory of the same
capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)
Always turn off the computer and unplug the power cord from the power outlet before installing the
memory to prevent hardware damage.
Memory modules have a foolproof design. A memory module can be installed in only one direction.
If you are unable to insert the memory, switch the direction.
'XDO&KDQQHO0HPRU\&RQÀJXUDWLRQ

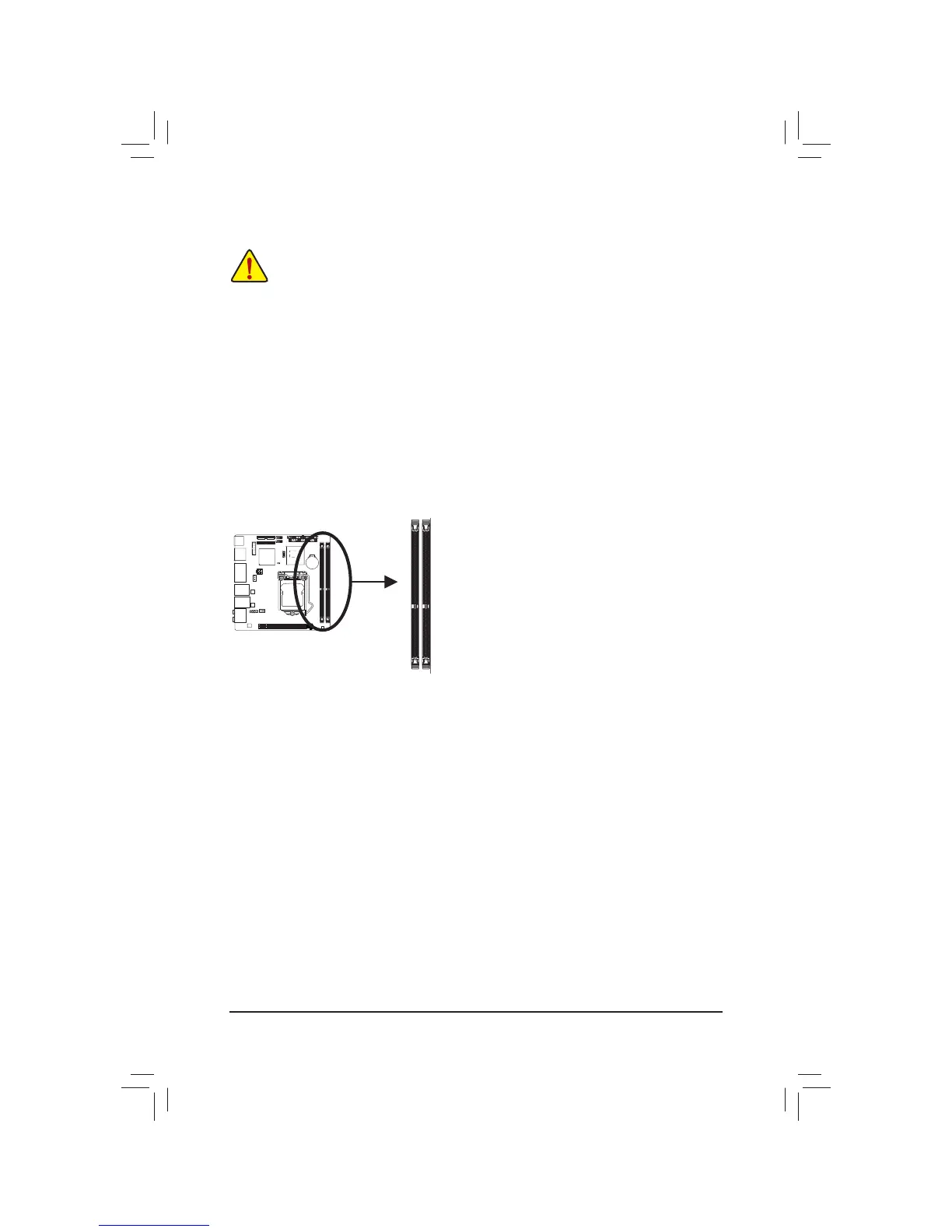

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the memory
LVLQVWDOOHGWKH%,26ZLOODXWRPDWLFDOO\GHWHFWWKHVSHFL¿FDWLRQVDQGFDSDFLW\RIWKHPHPRU\(QDEOLQJ'XDO
Channel memory mode will double the original memory bandwidth.
The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as
following:
Channel A: DDR3_1
Channel B: DDR3_2
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used for optimum performance.
