Gigabyte GA-Z77N-WIFI User Manual

- 31 - BIOS Setup
2-2 The Main Menu

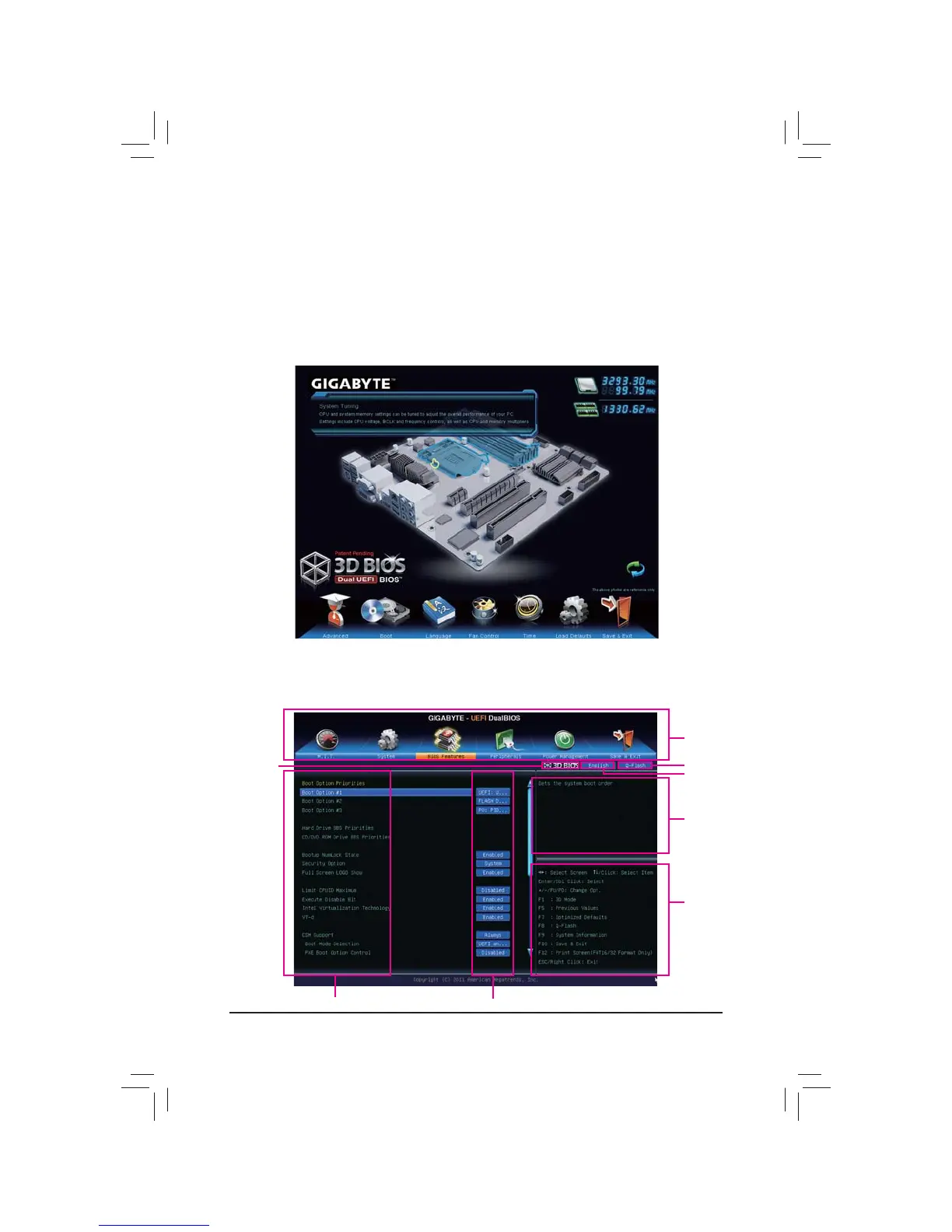

A. The 3D BIOS Screen (Default)
On GIGABYTE's uniquely designed 3D BIOS screen, you can use your mouse to move through the motherboard
LPDJHDQGFOLFNWRHQWHUWKHIXQFWLRQPHQXLQHDFKDUHDIRUTXLFNFRQ¿JXUDWLRQ)RUH[DPSOHSDVV\RXUPRXVH
arrow over the CPU and memory sockets and enter the System Tuning PHQXWR FRQ¿JXUH &38PHPRU\
IUHTXHQF\PHPRU\WLPLQJV DQG YROWDJH VHWWLQJV)RU PRUH GHWDLOHG FRQ¿JXUDWLRQ LWHPV\RX FDQ FOLFN WKH
function menu icons at the bottom of the screen or press <F1> to switch to the main menu of the BIOS Setup
program. (If a mouse is not connected, the 3D BIOS screen will automatically switch to the main menu of the
BIOS Setup Program.)
B. The Main Menu of the BIOS Setup Program
On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <Enter>
to accept or enter a sub-menu. Or you can use your mouse to select the item you want.
(Sample BIOS Version: GA-Z77N-WIFI F1c)
Setup Menus
Function Keys
Help
Enter Q-Flash
Select Default
Language
&RQ¿JXUDWLRQ,WHPV
Current Settings
Switch to
3D BIOS
screen

Gigabyte GA-Z77N-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI

Weight and Dimensions

Width	170 mm
