Gigabyte GA-Z77N-WIFI User Manual

- 8 -

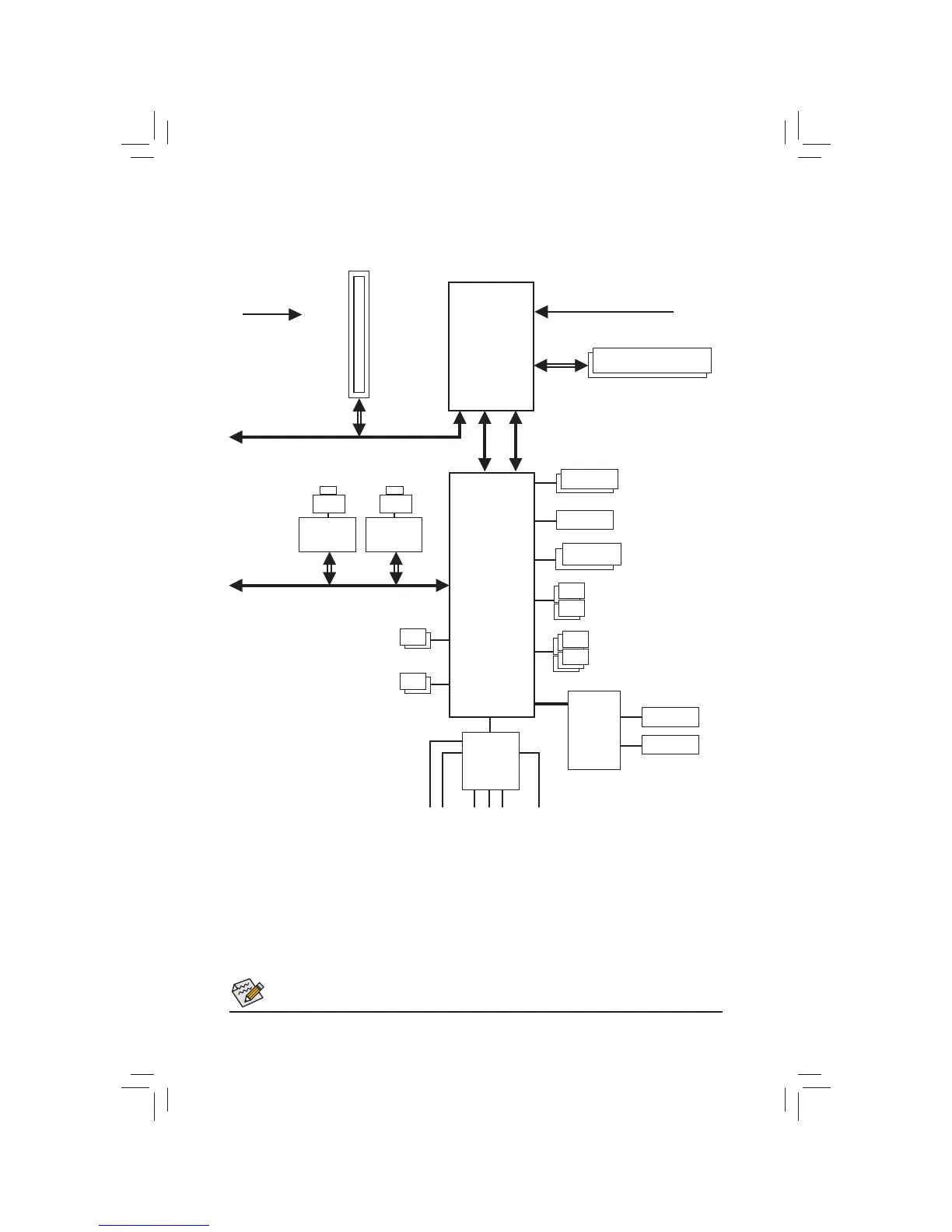

GA-Z77N-WIFI/GA-H77N-WIFI Motherboard Block Diagram
LGA1155
CPU
Intel
®
Z77 M
Intel
®
H77 N
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
CODEC
DDR3 1600/1333/1066/800 MHz
Dual Channel Memory
1 PCI Express x16
x16
DMI Interface
FDI Interface
PCI Express Bus
LAN LAN
RJ45 RJ45
Realtek
GbE LAN
Realtek
GbE LAN
6 USB 2.0/1.1
4 USB 3.0/2.0
2 SATA 3Gb/s
Dual BIOS
DVI-I
iTE
Super I/O
LPC
Bus
2 SATA 6Gb/s
HDMI
x1 x1
PS/2 KB/Mouse
COM
)RUGHWDLOHGSURGXFWLQIRUPDWLRQOLPLWDWLRQVUHIHUWR3URGXFW6SHFL¿FDWLRQV
M Only for GA-Z77N-WIFI.
N Only for GA-H77N-WIFI.

Gigabyte GA-Z77N-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI

Weight and Dimensions

Width	170 mm
