- 17 - Hardware Installation

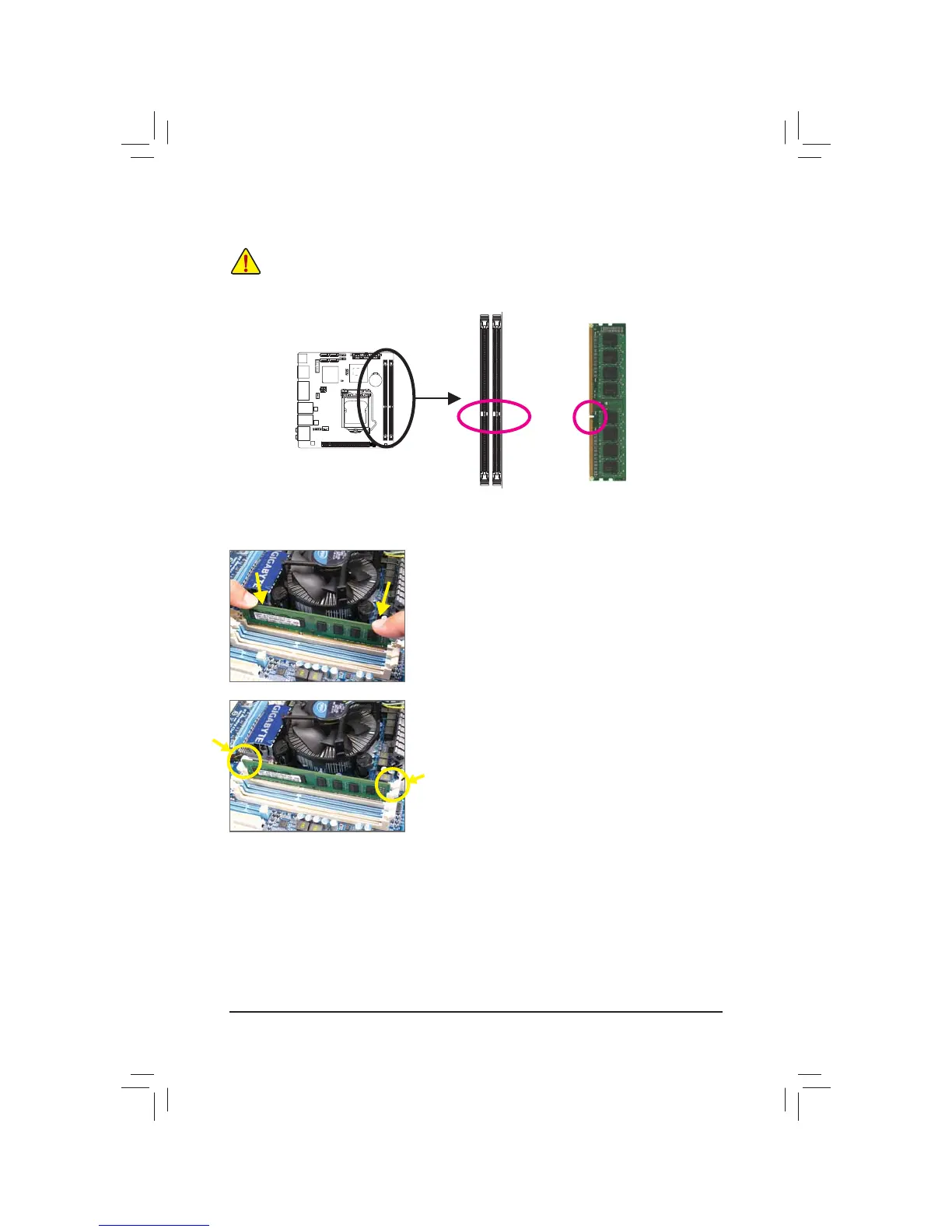

1-4-2 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power

cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs

are not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this

motherboard.

notch

DDR3 DIMM

$''5PHPRU\PRGXOHKDVDQRWFKVRLWFDQRQO\¿WLQRQHGLUHFWLRQ)ROORZWKHVWHSVEHORZWRFRUUHFWO\LQVWDOO

your memory modules in the memory sockets.

Step 1:

Note the orientation of the memory module. Spread the retaining clips

at both ends of the memory socket. Place the memory module on the

VRFNHW$VLQGLFDWHGLQWKHSLFWXUHRQWKHOHIWSODFH\RXU¿QJHUVRQ

the top edge of the memory, push down on the memory and insert it

vertically into the memory socket.

Step 2:

The clips at both ends of the socket will snap into place when the

memory module is securely inserted.

Questions and Answers:

Need help?

Do you have a question about the Gigabyte GA-Z77N-WIFI and is the answer not in the manual?

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
