Gigabyte GA-Z77N-WIFI User Manual

- 19 - Hardware Installation

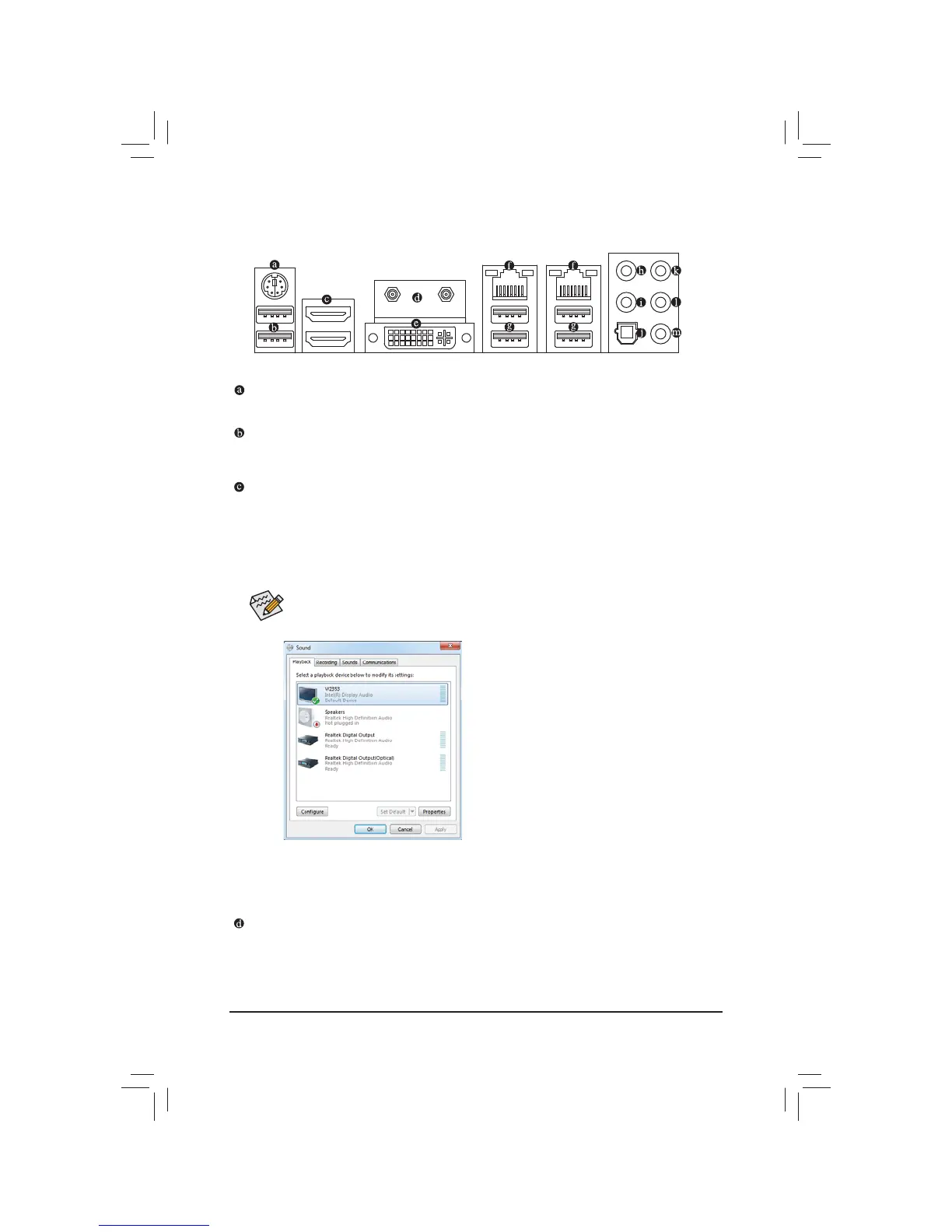

1-6 Back Panel Connectors
After installing the HDMI device, make sure to set the default sound playback device to HDMI.
(The item name may differ depending on your operating system. The screenshot below is from
Windows 7.)
In Windows 7, select Start>Control Panel>Hardware and
Sound>Sound>Playback, set Intel(R) Display Audio to the
default playback device.
PS/2 Keyboard/Mouse Port
Use this port to connect a PS/2 mouse or keyboard.
USB 3.0/2.0 Port
7KH86%SRUWVXSSRUWVWKH86%VSHFL¿FDWLRQDQGLVFRPSDWLEOHWRWKH86%VSHFL¿FDWLRQ
8VHWKLVSRUWIRU86%GHYLFHVVXFKDVD86%NH\ERDUGPRXVH86%SULQWHU86%ÀDVKGULYHDQGHWF
HDMI Port
+'0,+LJK'H¿QLWLRQ0XOWLPHGLD,QWHUIDFHLVDQDOOGLJLWDODXGLRYLGHRLQWHUIDFHFDSDEOHRIWUDQVPLWWLQJ
uncompressed audio/video signals. The HDMI port is HDCP compliant and supports Dolby TrueHD and
DTS HD Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio output. You can
use this port to connect your HDMI-supported audio/video device. The maximum supported resolution is
1920x1200, but the actual resolutions supported are dependent on the monitor being used.
'XDO'LVSOD\&RQÀJXUDWLRQVIRUWKH2QERDUG*UDSKLFV
This motherboard provides two video output ports: DVI-I and HDMI. Dual monitor confgurations are supported
in operating system environment only, but not during the BIOS Setup or POST process.
Antenna Connector
Use this connector to connect an antenna.

Gigabyte GA-Z77N-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI

Weight and Dimensions

Width	170 mm
