Gigabyte GA-Z77N-WIFI User Manual

Hardware Installation - 22 -

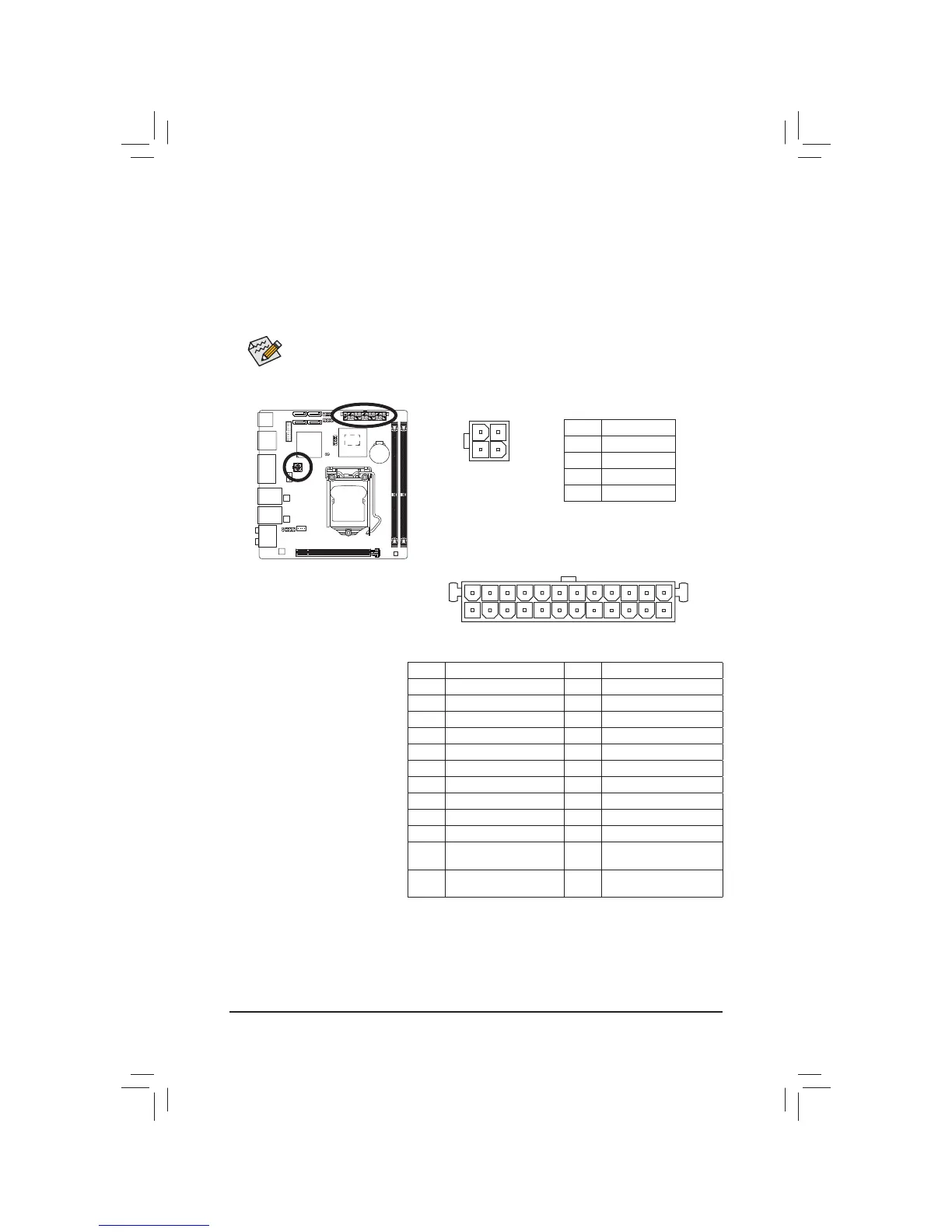

1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the components
RQWKHPRWKHUERDUG%HIRUHFRQQHFWLQJWKHSRZHUFRQQHFWRU¿UVWPDNHVXUHWKHSRZHUVXSSO\LVWXUQHG
off and all devices are properly installed. The power connector possesses a foolproof design. Connect the
power supply cable to the power connector in the correct orientation.
The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not connected,
the computer will not start.
To meet expansion requirements, it is recommended that a power supply that can withstand high
power consumption be used (300W or greater). If a power supply is used that does not provide
the required power, the result can lead to an unstable or unbootable system.
13
1
24
12
ATX
ATX_12V
4
2
3
1
ATX_12V:
Pin No. 'H¿QLWLRQ
1GND
2GND
3 +12V
4 +12V
ATX:
Pin No. 'H¿QLWLRQ Pin No. 'H¿QLWLRQ
1 3.3V 13 3.3V
2 3.3V 14 -12V
3GND 15GND
4 +5V 16 PS_ON (soft On/Off)
5GND 17GND
6 +5V 18 GND
7GND 19GND
8 Power Good 20 -5V
9 5VSB (stand by +5V) 21 +5V
10 +12V 22 +5V
11 +12V (Only for 2x12-pin
ATX)
23 +5V (Only for 2x12-pin ATX)
12 3.3V (Only for 2x12-pin
ATX)
24 GND (Only for 2x12-pin
ATX)

Gigabyte GA-Z77N-WIFI Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
S/PDIF out connector	Yes
Number of Parallel ATA connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	4
Audio chip	Realtek ALC892
Component for	PC
Power source type	ATX
Motherboard chipset	Intel Z77
Audio output channels	7.1 channels
Motherboard form factor	mini ATX
Compatible operating systems	Windows 8/7/XP
Supported storage drive interfaces	SATA II, SATA III
Parallel processing technology support	-
Bundled software	Norton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking features	Gigabit Ethernet, WLAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI

Weight and Dimensions

Width	170 mm
