Unique Features - 72 -

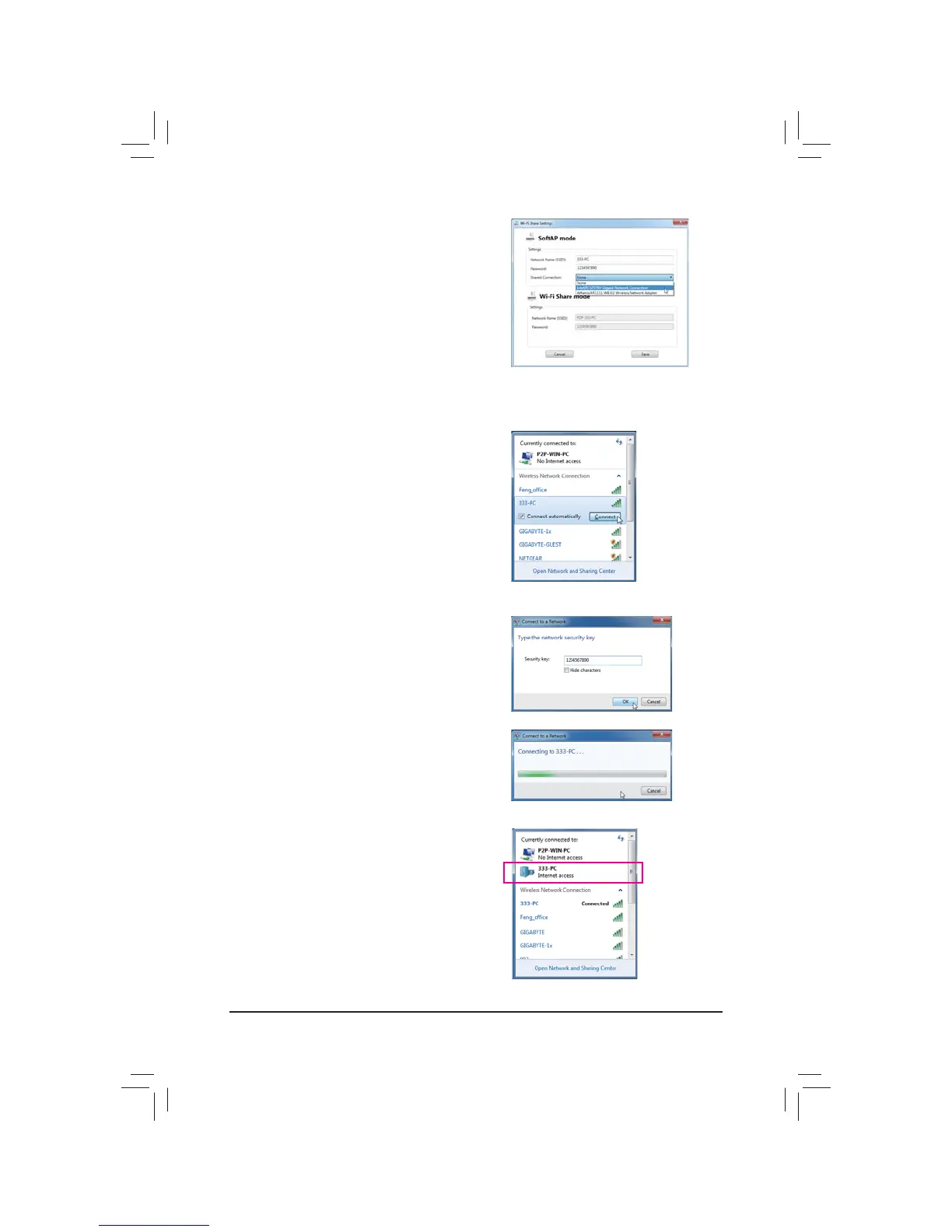

Step 2:
When the Wi-Fi Share Settings dialog box appears,
select a currently running network connection you want
to share from the Share Connection list. Then click
Save. The Password represents the network security
key which is required when other computer wants to
access the Internet through the virtual wireless AP. You
can keep the default password or create your own one.
&RQÀJXULQJWKHFRPSXWHUWKDWZDQWVWRDFFHVVWKH,QWHUQHWWKURXJKWKHYLUWXDOZLUHOHVV$3
Step 1:
Left-click the Internet AccessLFRQLQWKHQRWL¿FDWLRQ
area. When the Currently connected to list appears,
select the virtual wireless AP you want to connect to
and click Connect.
Step 2:
When the Connect to a Network dialog box appears,
enter the security key of the network connection the
virtual wireless AP is sharing and click OK.
Step 3:
After the connection, the Currently connected to list
shows that this computer is currently using the network
connection shared by the virtual wireless AP.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gigabyte GA-Z77N-WIFI and is the answer not in the manual?

Gigabyte GA-Z77N-WIFI Specifications

General IconGeneral
Memory voltage1.5 V
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots2
Supported memory typesDDR3-SDRAM
Maximum internal memory16 GB
Supported memory clock speeds800, 1066, 1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Celeron, Intel Pentium
S/PDIF out connectorYes
Number of Parallel ATA connectors0
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 2.0 ports quantity4
Audio chipRealtek ALC892
Component forPC
Power source typeATX
Motherboard chipsetIntel Z77
Audio output channels7.1 channels
Motherboard form factormini ATX
Compatible operating systemsWindows 8/7/XP
Supported storage drive interfacesSATA II, SATA III
Parallel processing technology support-
Bundled softwareNorton Internet Security (OEM version), Intel Rapid Start Technology, Intel Smart Connect Technology, Intel Smart Response Technology
Networking featuresGigabit Ethernet, WLAN
Ethernet interface typeGigabit Ethernet
BIOS typeEFI AMI
Weight and Dimensions IconWeight and Dimensions
Width170 mm
