Replacing the FlexPay EPP Start-up and Service
The Advantage Series and Encore 300 Dispensers
To replace the FlexPay EPP in The Advantage Series and Encore 300 dispensers, proceed as
follows:
1 Inform the Manager that the power will be removed and remove all power supplied to the unit
at the breaker located in the building. Block off the unit from customers.
Failure to turn off the unit during the installation of the kit may cause injury or bodily harm from
electrical shock. Ensure that all power to the unit is switched off before opening the door to the
unit and during kit installation.
WARNING
2 Cone off the dispenser to traffic.
3 Open the Payment door.
4 Remove all cables from the rear of the FlexPay EPP.
5 Remove the screws that hold the FlexPay EPP in place.

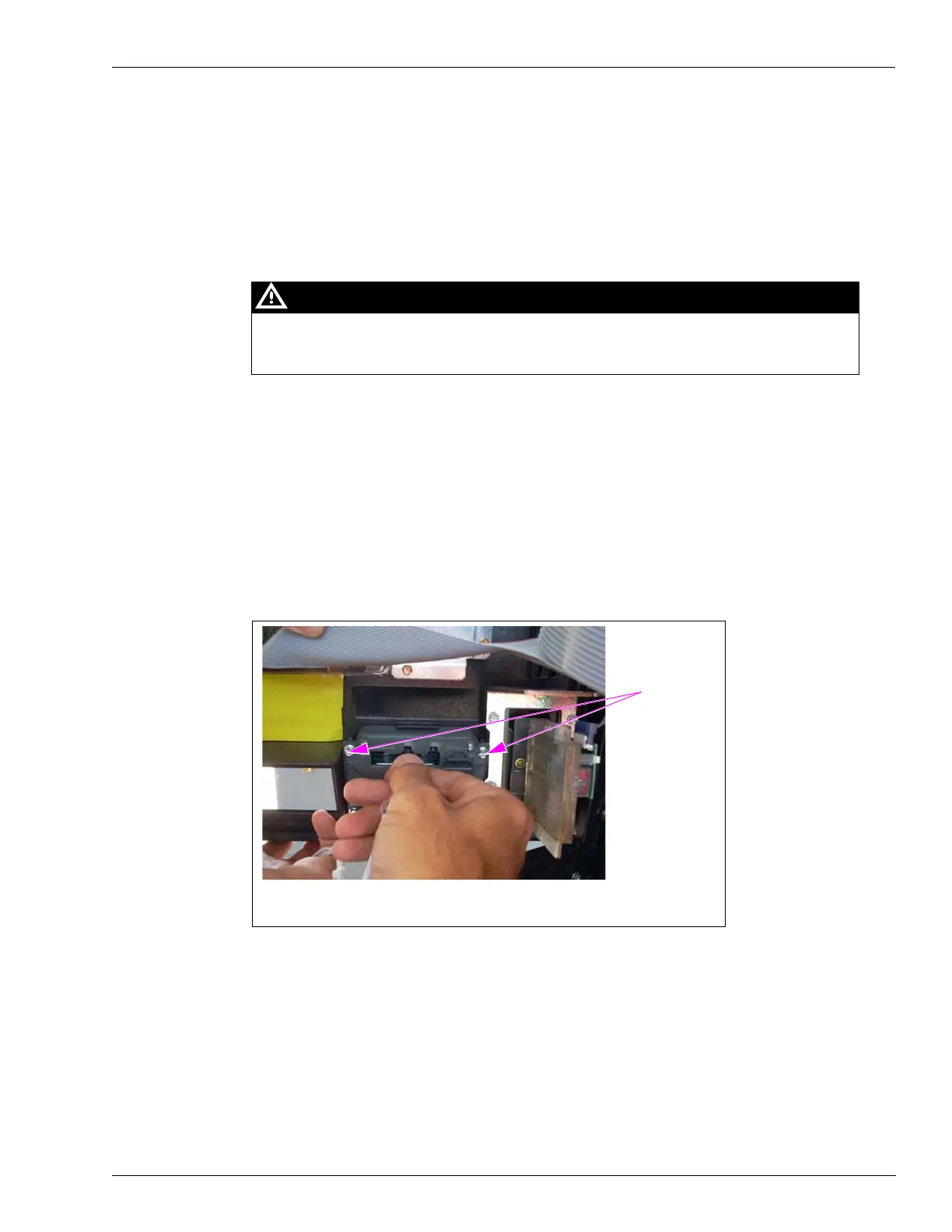

Figure 3-56: Screws Holding the FlexPay EPP
Screws to be
Removed
Note: The Advantage Series is shown in the figure.
6 Remove the FlexPay EPP.
7 Mount the new FlexPay EPP on the unit using the screws removed in step 5.
8 Reconnect the cables removed in step 4.
9 Install jumpers on coldstart pins on the CRIND Logic Board and perform a coldstart.
10 Enter the Diagnostic Mode using the Diagnostic Card. For instructions, refer to “Entering
Diagnostic Mode Using the CRIND Diagnostic Card” on page 18.
