GILBARCO VEEDER-ROOT FlexPay Encrypting PIN Pad User Manual

MDE-4784D FlexPay™ Encrypting PIN Pad Start-up and Service Manual · December 2011 Page 3
Required Tools Introduction
Product Specifications

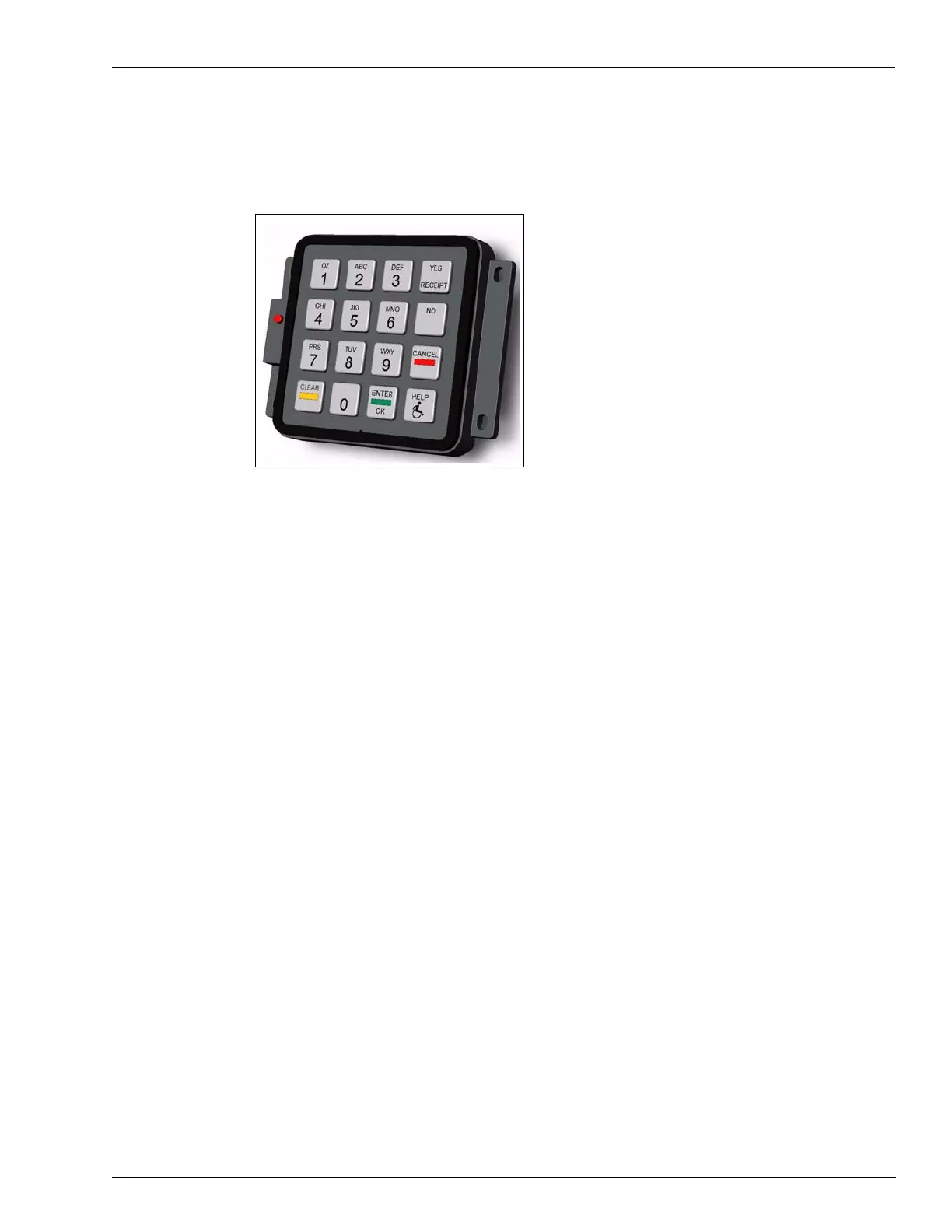

Figure 1-2: FlexPay EPP
• PCI Compliant PIN Pad
- PIN encrypted directly in PIN Pad. Capable of remote key loading
- TDES encryption standard
• PIN Pad equipped with standard buttons and color indicators: YES/Receipt, No, Cancel,
Clear, Enter/OK, and Americans with Disabilities Act (ADA)
• Option keys (4) available with no POS system changes
• Integrated into current dispenser design for seamless look
• Side shield protection for all models
• Backwards compatible with POS and current CRIND hardware
Required Tools
The following tools are required to service the FlexPay EPP on a dispenser:
• Hand Drill/Pneumatic Air Drill
• 7 mm Drill Bit
• 1/4” Socket/Ratchet Set or Nut Driver (magnetic)
• 5/16” Socket/Ratchet Set or Nut Driver (magnetic)
• 9/32” Socket/Ratchet Set or Nut Driver (magnetic)
• Flat-blade Screwdriver
• Phillips
®
Screwdriver
• Putty Knife/Exacta Knife
• Needle Nose Pliers
• Isopropyl Alcohol
• Laptop and FlexPay EPP Programming Cables
• Wrist Strap
• Antistatic Mat
• IC Extractor
