Gilera 633499 - Page 14

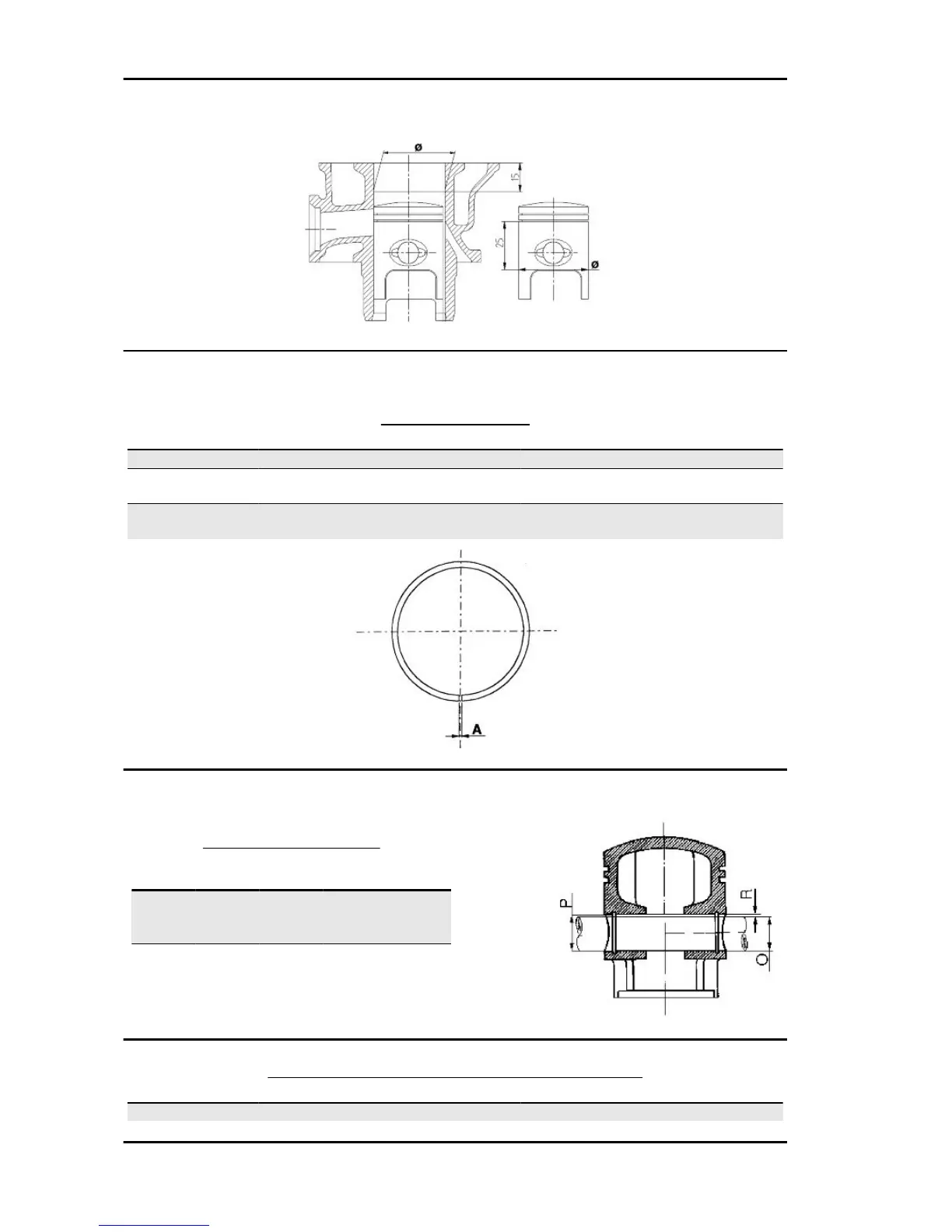

Piston rings
ANELLI DI TENUTA
Name Description Dimensions Initials Quantity
Anello di tenuta 40 A 0,10 ÷ 0,25
Anello di tenuta 1°
Magg.
40,2 A 0,10 ÷ 0,25
Anello di tenuta 2°
Magg.
40,4 A 0,10 ÷ 0,25
Crankcase - crankshaft - connecting rod
PISTON - TEST PROBE
Name Descrip
tion
Dimens
ions
Initials Quantit
y
Piston Ø 12
+0.007
+0.012
P 0.002 ÷
0.011
Test
probe
Ø 12
+0.005
+0.001
Q 0.002 ÷
0.011
AXIAL PLAY CONNECTING ROD - CRANKSHAFT
Name Description Dimensions Initials Quantity
Connecting rod 11.75 0 -0.05 A 0.25 ÷ 0.50
Characteristics Runner Purejet
CHAR - 8
