part upwards to prevent damaging the plastic
joints, .

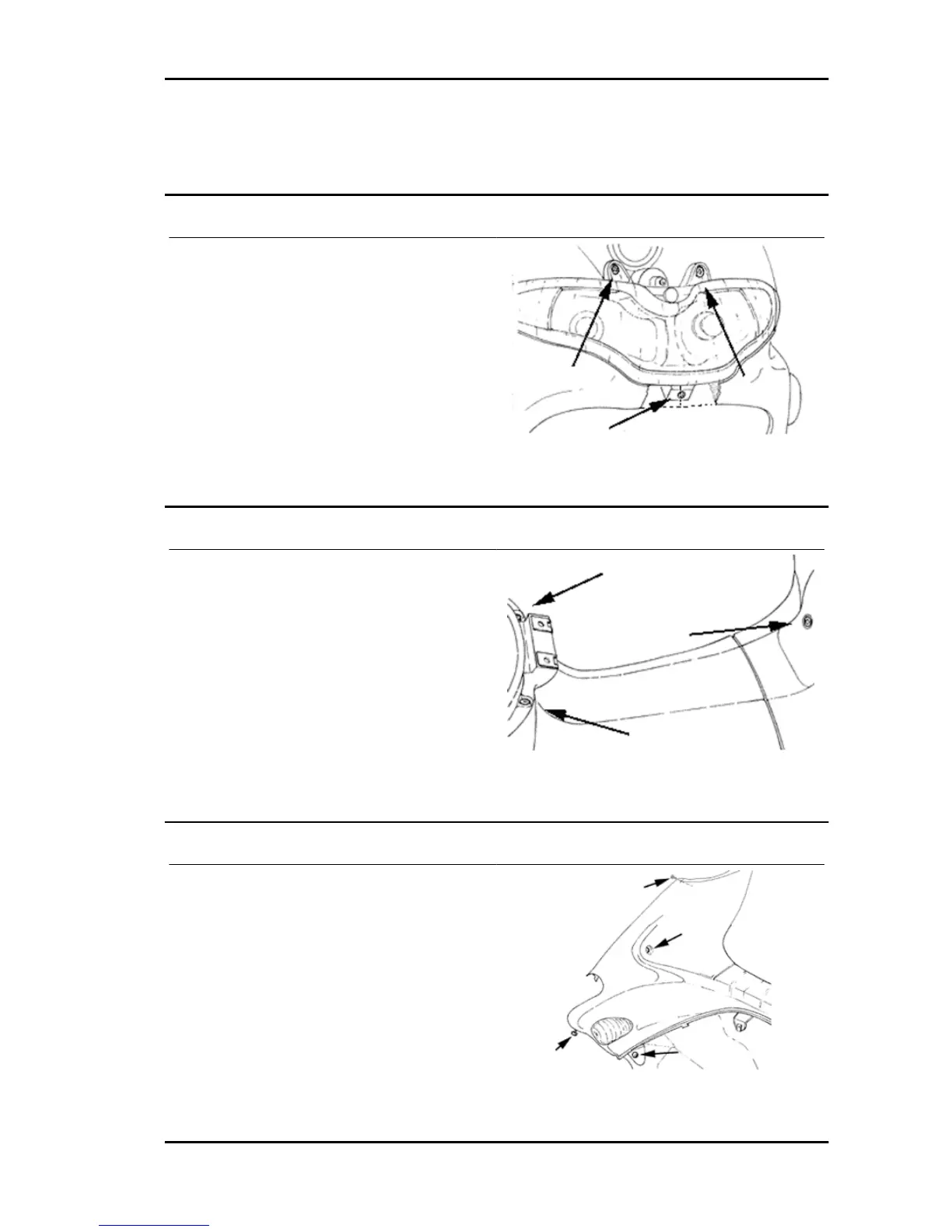

Headlight assy.
- Remove the front grill
- Remove the three screws shown in the picture
and disconnect the electrical connections.
See also
Legshield
Frame central cover
- Remove the front shield
- Loosen the three screws shown in the picture.
Remove the fuel, expansion chamber plugs and
finally detach the cable for opening the refueling
chamber. To remove the cover raise the rear part
first.
See also
Legshield
Legshield
- Remove the side
- Remove the front headlight
- To remove, loosen the 4 screws shown in the
picture, disconnect the electric connections of the
turn indicators. The front shield is formed of two
perfectly symmetrical parts.
See also
Side fairings
Runner Purejet Chassis
CHAS - 3
