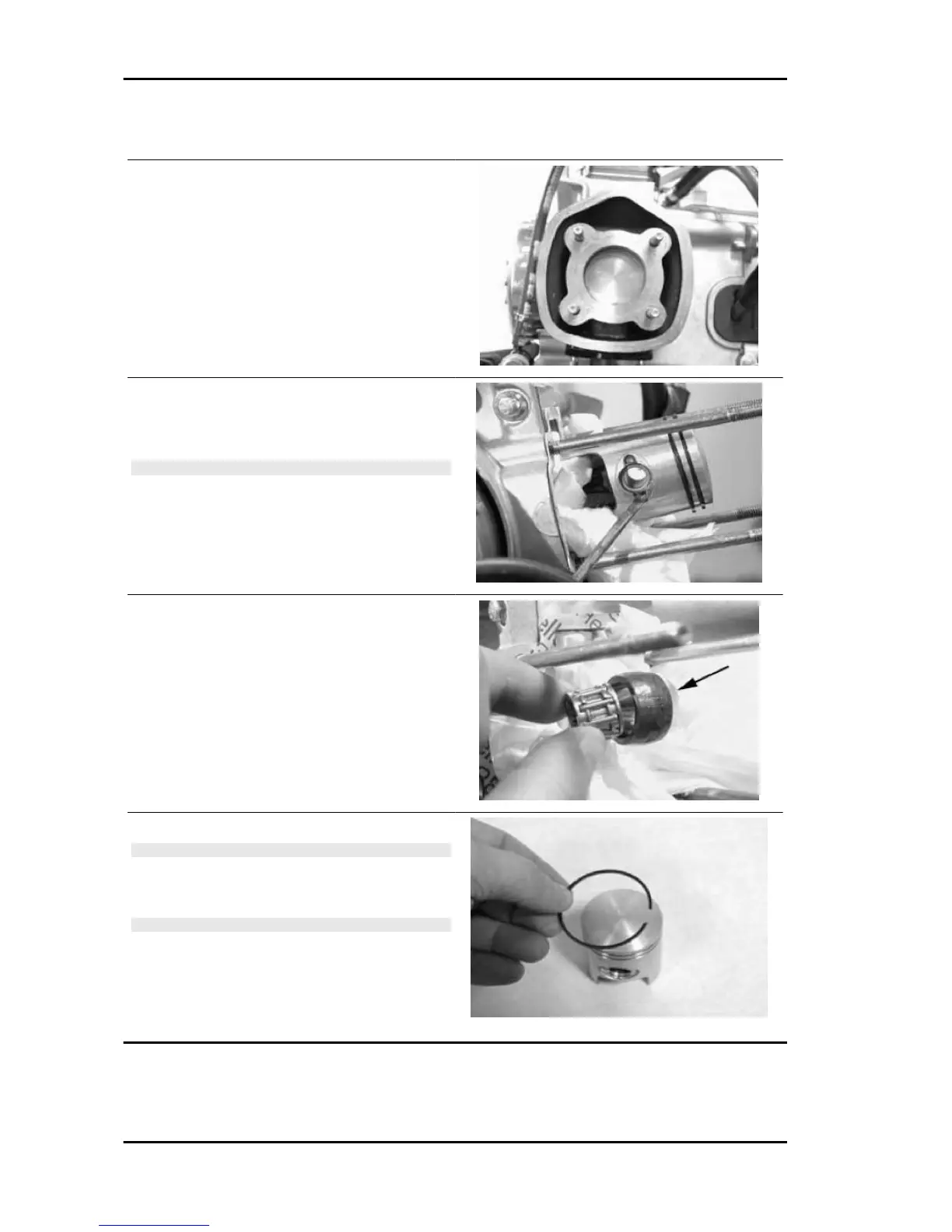

Removing the cylinder - piston assy.
• Remove the cylinder holding the piston in order
to prevent damage
• Remove the 2 plug stops by a screwdriver inser-
ted into the special slits on the piston
• Remove piston pin and remove the piston
N.B.
USE PAPER OR A CLOTH TO CLOSE THE CYL-
INDER HOUSING MOUTH ON THE CRANK-
CASE TO PREVENT SLIPPAGE OF ONE OF
THE PIN LOCKING RINGS INTO THE CASE.
• Remove the roller from the connecting rod as
shown in the figure
• Remove the piston sealing rings
CAUTION
NOTE THE ASSEMBLY POSITIONS OF THE
LININGS TO PREVENT INVERTING THE POSI-
TION IN CASE OF REUSE.
N.B.
BE CAREFUL NOT TO DAMAGE THE SEALING
RINGS DURING REMOVAL.
Engine Runner Purejet
ENG - 20
