WindObserver 65 Page 14 Issue 4
Doc. No. 1390-PS-0039 June 2016

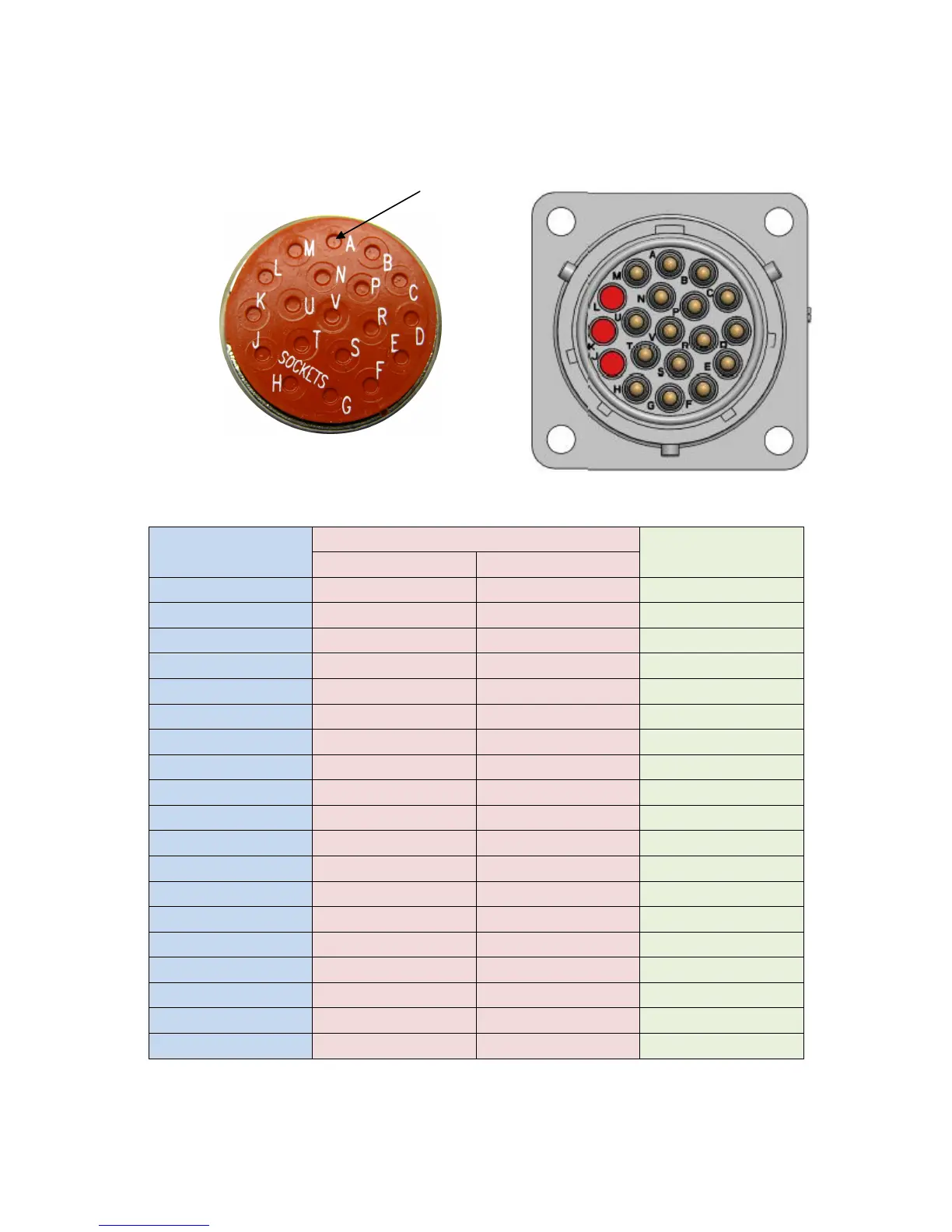

View of the WindObserver 65 base connector variant
Supplied Plug Anemometer Socket
Table 2 - 19 way connector and cable connections
19 Way Connector
Terminal Letter
Cable Gland Option
Signal Designation
Conductor
Colour
P
Pair 1
Green
RS422 TXB (+)
C
Pair 1
Black
RS422 TXA (
-
)
U
Pair 2
White
RS422 RXB (+)
V
Pair 2
Black
RS422 (RXA (
-
)
R
Pair 3
Red
Supply V+
D
Pair 3
Black
Supply V
-
M
Pair 4
Blue
Digital 0v
N
Pair 4
Black
Not Used (Isolate)
A
Pair 5
Yellow
Heater +
*
1
B
Pair 5
Black
Heater
-
*
1
H
Pair 6
Brown
Analogue Ch 3
*
2
G
Pair 6
Black
Analogue 0v
*
2
E
Pair 7
Orange
Not
Used (Isolate)
F
Pair 7
Black
Not Used (Isolate)
T
Pair 8
White
Analogue Ch 1
*
2
S
Pair 8
Red
Analogue Ch 2
*
2
L
No Connection
Pair 9
Green
Not Used (Isolate)
K
No Connection
Pair 9
Red
Not Used (Isolate)
J
No Connection
Not Applicable
Not Applica
ble
Not Used
*
1 and 2
Note may not be functional - check model number and options fitted.
