WindObserver 65 Page 51 Issue 4
Doc. No. 1390-PS-0039 June 2016
Vx- Vertical Output Padding
Setting
Configuration code
Disable vertical output padding
V1
Enable vertical output padding
V2
Xx - 45 Alignment Offset/Inverted Operation
Setting
Configuration
code
Notes
Align U axis with
transducer axis
X1
X1. Aligns U axis with North/South axis.
Align U axis +45

to transducer axis
X2
X2. This re-aligns both U&V and polarity 45˚ to
transducer axis.
Reverses Polar
Direction
X3
X3 reverses reported polar direction to allow the
instrument to be mounted upside down. N.B.
Does NOT affect UV alignment (Mode 1, 3).
Align @ 45° from
North
X4
X4 set polar alignment at 45 degrees from North
when instrument is mounted upside down.
Does NOT affect UV alignment (Mode 1, 3).

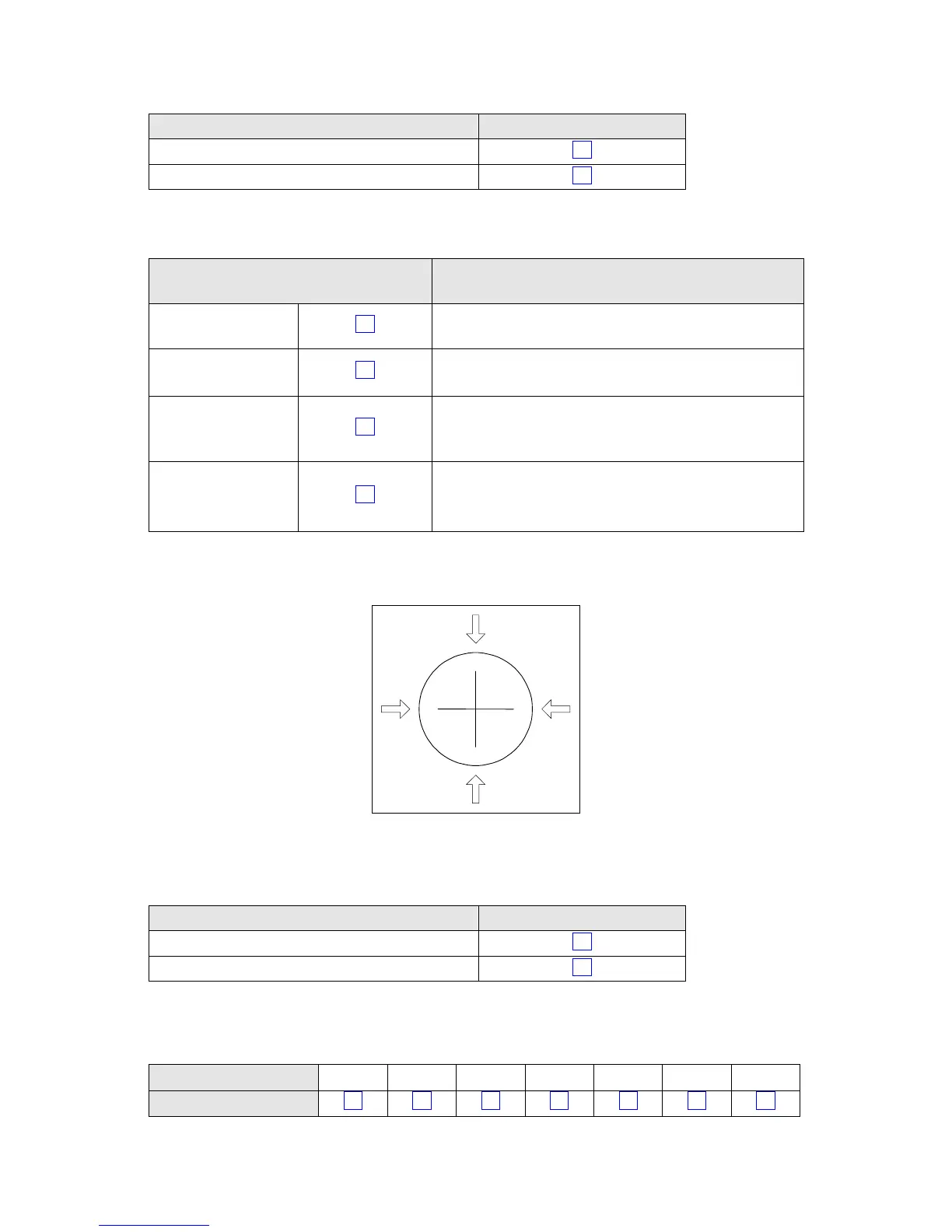

Figure 4 shows the polarity of U and V if the wind components along the U and V axis are
blowing in the direction of the respective arrows.
-U
+U
+V -V
E
N
S
W
Figure 4 UV Polarity
Yx – Analogue Output, Channel 3 (if fitted).
Setting
Configuration code
Status
Y1
Temperature
Y2
Zx – Analogue Output Scaling (if analogue outputs fitted).
Setting

10

20

30

40

50

60

70
Configuration code
Z1
Z2 Z3 Z4 Z5 Z6 Z7
