G10
28

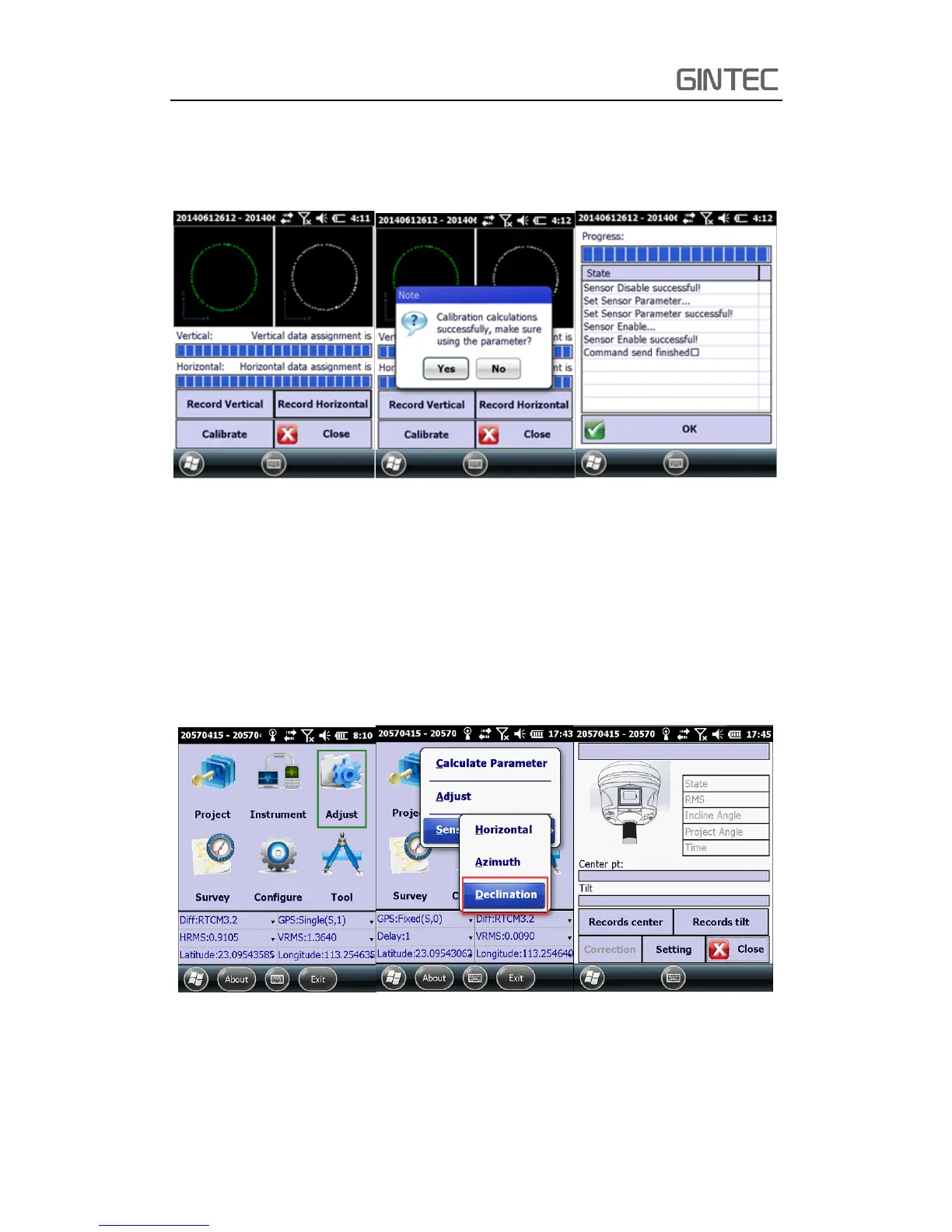

The last step is “Calibrate”. After step one and two, it will show 2 circles on the
screen. Then click “Calibrate”, it will calculate the parameter and aske you “Make sure
using the parameter?” Click “Yes”, the parameter will be applied.
Figure 4-7
(3) Declination Calibration
After “Horizontal Calibration” and “Azimuth Calibration”, now it’s the last step—
“Declination Calibration”. Click “Adjust—Sensor Calibrate—Declination” to enter the
interface. Declination Calibration also contains three steps, “Records Center, Records
Tilt and Calibrate”
Figure 4-8
(a) The first step is “Record center”. Keep the pole on the same point, make sure
the bubble is in center, click “Record center”, it will collect 10 center points.
