Giropes GI400 LCD - Back Panel

5
ENUSER MANUAL GI400 / GI410

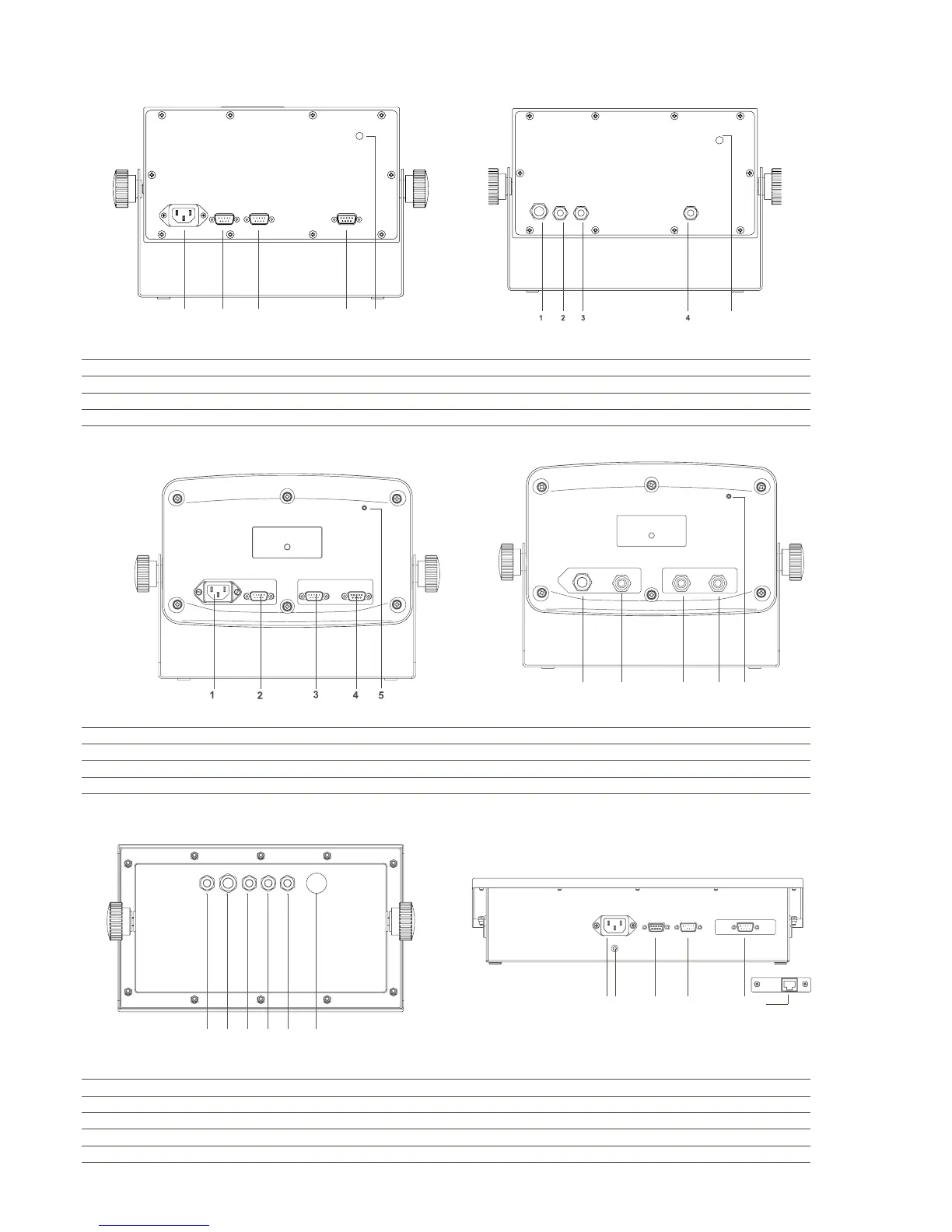

1.2 BACK PANEL
INOX IP54 INOX IP65
5
12
34
12 4
5
1 Power connector IEC PG9 for power cable
2 Connector RS232-Com1 (SubD 9 male tracks) PG7 for RS232-COM1
3 Connector RS232-Com2 (SubD 9 male tracks) PG7 for RS232-COM2
4 Connector Load cell (SubD 9 female tracks) PG7 for load cell cable
5 Calibration switch Calibration switch
ABS IP54 ABS IP65
12
34
5
1 Power connector IEC PG9 for power cable
2 Connector RS232-COM1 (SubD 9 male tracks) PG7 for RS232-COM1
3 Connector RS232-COM2 (SubD 9 male tracks) PG7 for RS232-COM2
4 Connector Load cell (SubD 9 female tracks) PG7 for load cell cable
5 Calibration switch Calibration switch
INOX IP68 GI410 PRINT
1 2 3 4 o 5
1 PG7 for additional port Power connector IEC
2 PG9 for power cable Connector Load cell (SubD 9 female tracks)
3 PG7 for load cell cable Connector RS232-Com1 (SubD 9 male tracks)
4 PG7 for RS232-COM1 Connector RS232-Com2 (SubD 9 male tracks)
5 PG7 for RS232-COM2 Ethernet Connection (opcional)
6 Pressostatic membrane Calibration switch
1 2 3 4 5 6
6
