Glamox NL95 - Package Contents; Installation and Configuration Overview

Rev.: 4, Print date: 2021-05-05
6
NL95
Main unit type ITNSL-01TP
Manual
Power Supply module
Original cable DB9 2.5m long for
Main unit connection
Original cable RJ45 1.5m long for
Input module connection
Input module
Spare parts
set
Code Figure / name

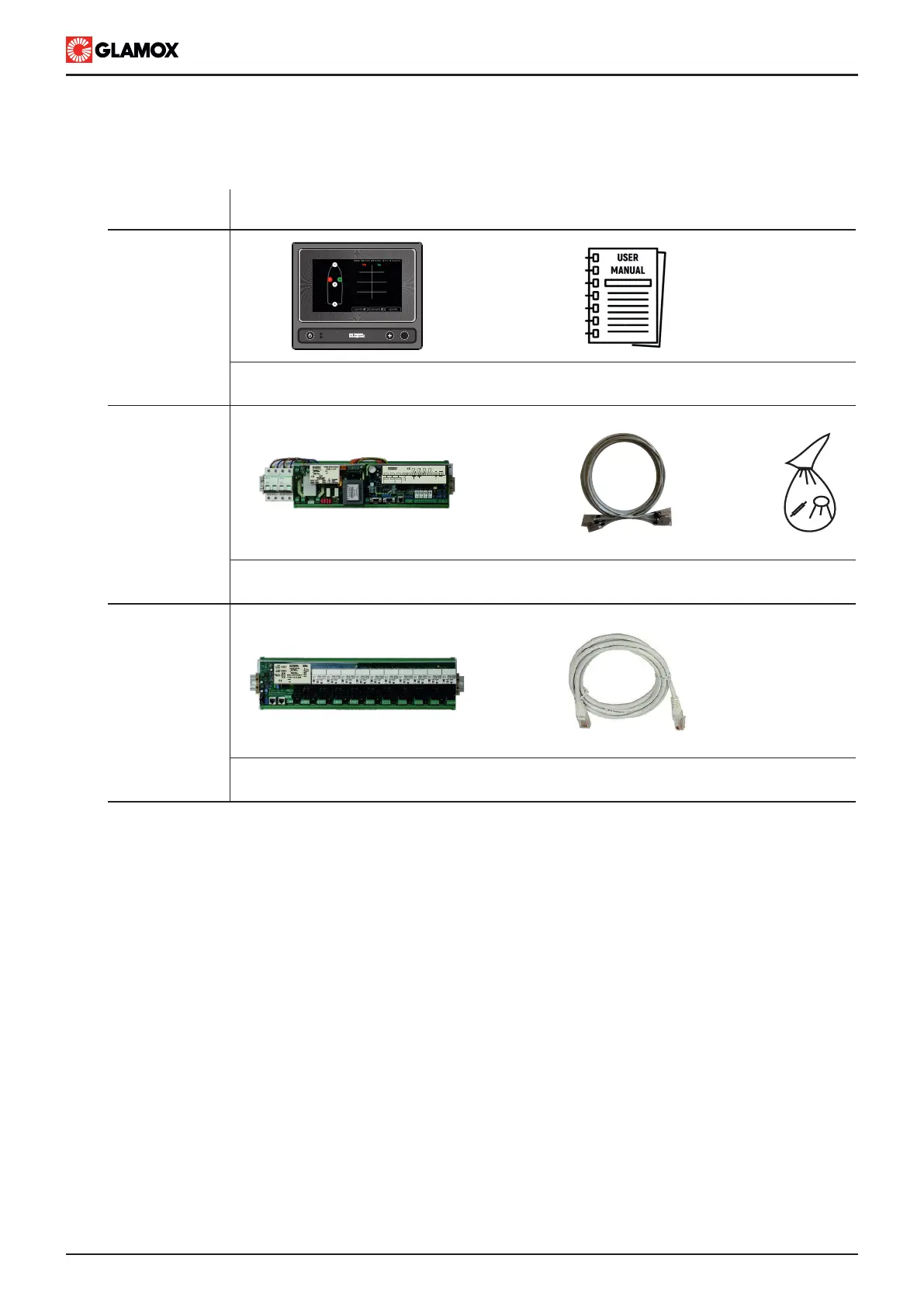

Following components included in the product package.
1. Familiarise with the safety instructions
2. Check installation requirements
3. Make installation plan
4. Install Navigation and Signal Lights Controller
5. Connect the equipotential bonding
6. Connect lights
7. Connect the power supply
8. Configure or load configurations
9. Check operation
10. Fill in commisioning form and backup configuration
1.3 Package contents
1.4 Installation and configuration procedure
02-04-211
02-04-212
02-04-213
02-04-214
02-04-215
02-04-219
02-04-216
02-04-220
02-04-217
02-04-221
02-04-218
02-04-222
POWER ON
FAILURE
F1
CON1 CON2
MAIN UNIT
ITNSL-01TP
CON1 CON2
CON3
AUDIO ALARM ACCEPT INPUT
AL2
2 3 4 5 6 7 8 9 10 12 13 14 15 161
AL1 AL3SYS
C.O. VOLTAGE-FREE OUTPUT CONTACT
18 19 2017 21
SYSTEM OPERATING
COMMON ALARM OUTPUT
B A B A
-
RX TX
NMEA 0183
RECIEVER
NMEA 0183
TRANSMITTER
CON3
INPUT
MODULES
