NL95

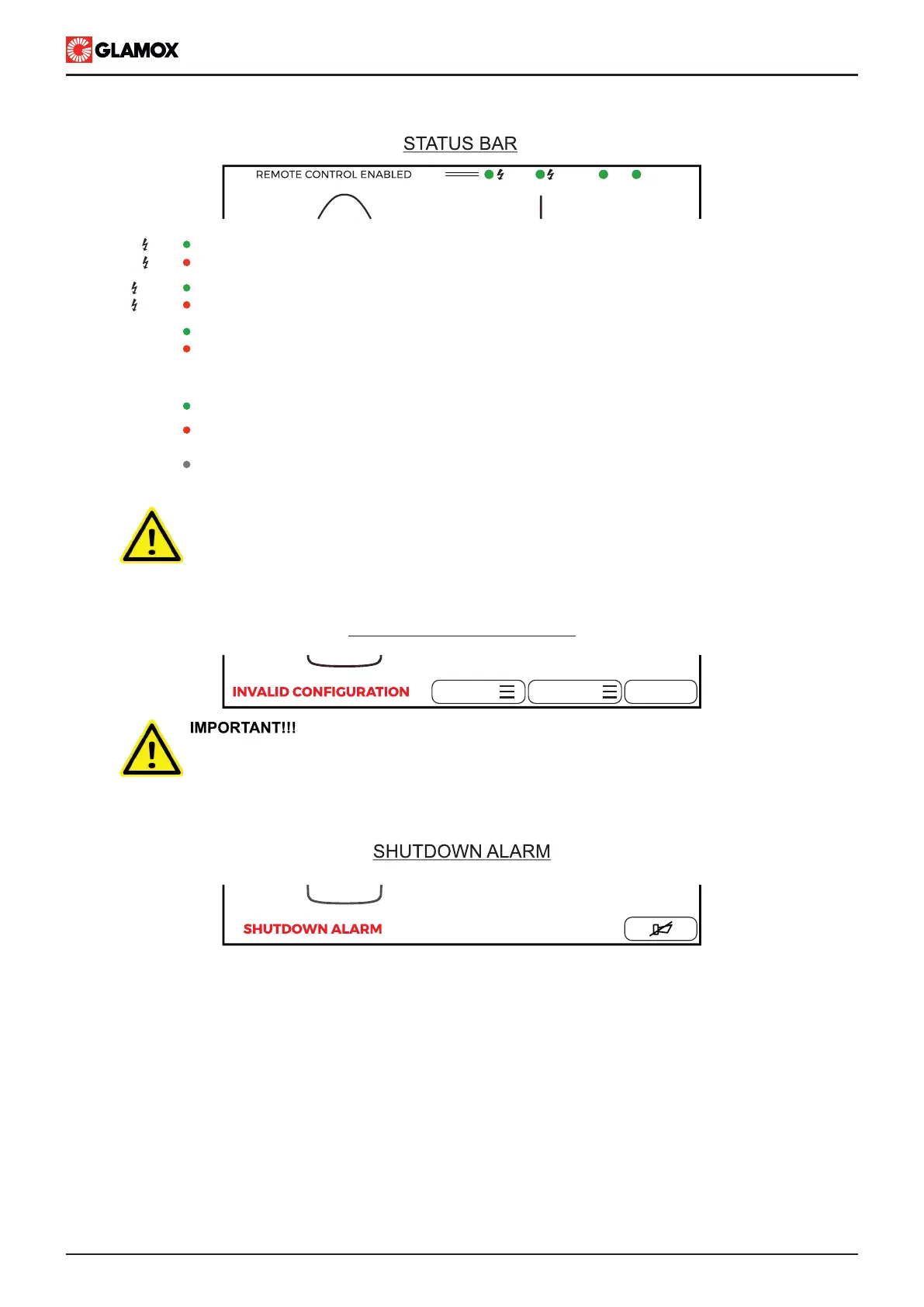

Main power supply OK
MAIN
MAIN
Main power supply ALARM
Emergency power supply OK
EMERG.
EMERG.
Emergency power supply ALARM
Power Supply module ITNSLP-01P communication OK
SYS
SYS
Power Supply module ITNSLP-01P module communication ALARM
NOTE: In case that ITNSLP-01P module communication is in alarm,
power supply main and emergency indication will be unavailable
One or more light modules communication ALARM
For detailed status of modules and communication reset pls. enter system/status screen
MODULES
MODULES
Communication with light input modules OK
No module configured, or in configuration mode
MODULES
IMPORTANT!!!
REMOTE CONTROL ENABLED - the system is controlled from remote location by
communication protocol. Local control of lights is unavailable, checking light status is possible.
Please check separate document for further information
LIGHTSGROUPS
LIGHTS
CONFIGURATION ERROR
If system was not correctly switched off, i.e. power supply blackout, on next system start-up alarm type
"SHUTDOWN ALARM" will be initiated. Pls. check picture above.
IMPORTANT!!! All lights that were switched on before shutdown will be restored automatically. Pls. check
if appropriate lights are switched on.
If INVALID CONFIGURATION is shown, this means that one or more lights are missing either
connection or position on mimic. Please check configuration section
MAIN
EMERG.
SYS
MODULES
PS
SB
