Glamox NL95 - Remote Status; Remote Control

Rev.: 4, Print date: 2021-05-05
34
NL95
REMOTE CONTROL
1
Enabling / disabling remote control (modbus write function)
Only monitroign will be available on screen
!
MAIN
EMERG.
SYS
MODULES
SYSTEM WILL BE CONTROLLED FROM REMOTE LOCATION VIA
COMMUNICATION PROTOCOL
ONLY MONITORING WILL BE AVAILABLE ON SCREEN, TO CONTROL LIGHTS
FROM SCREEN DISABLE REMOTE CONTROL
DISABLE
ENABLE
REMOTE STATUS
MODULES
LIGHTS
SYSTEM
MAIN
EMERG.
SYS
MODULES
REMOTE ADDRESS :
REMOTE PORT :
IP ADDRESS :
SUBNET MASK :
MAC ADDRESS :
COMMUNICATION :
DHCP :
MEDIA STATE :
1
502
I92.168.1.1
255.255.0.0
XX - XX - XX - XX - XX - XX
DISABLED
CONNECTED

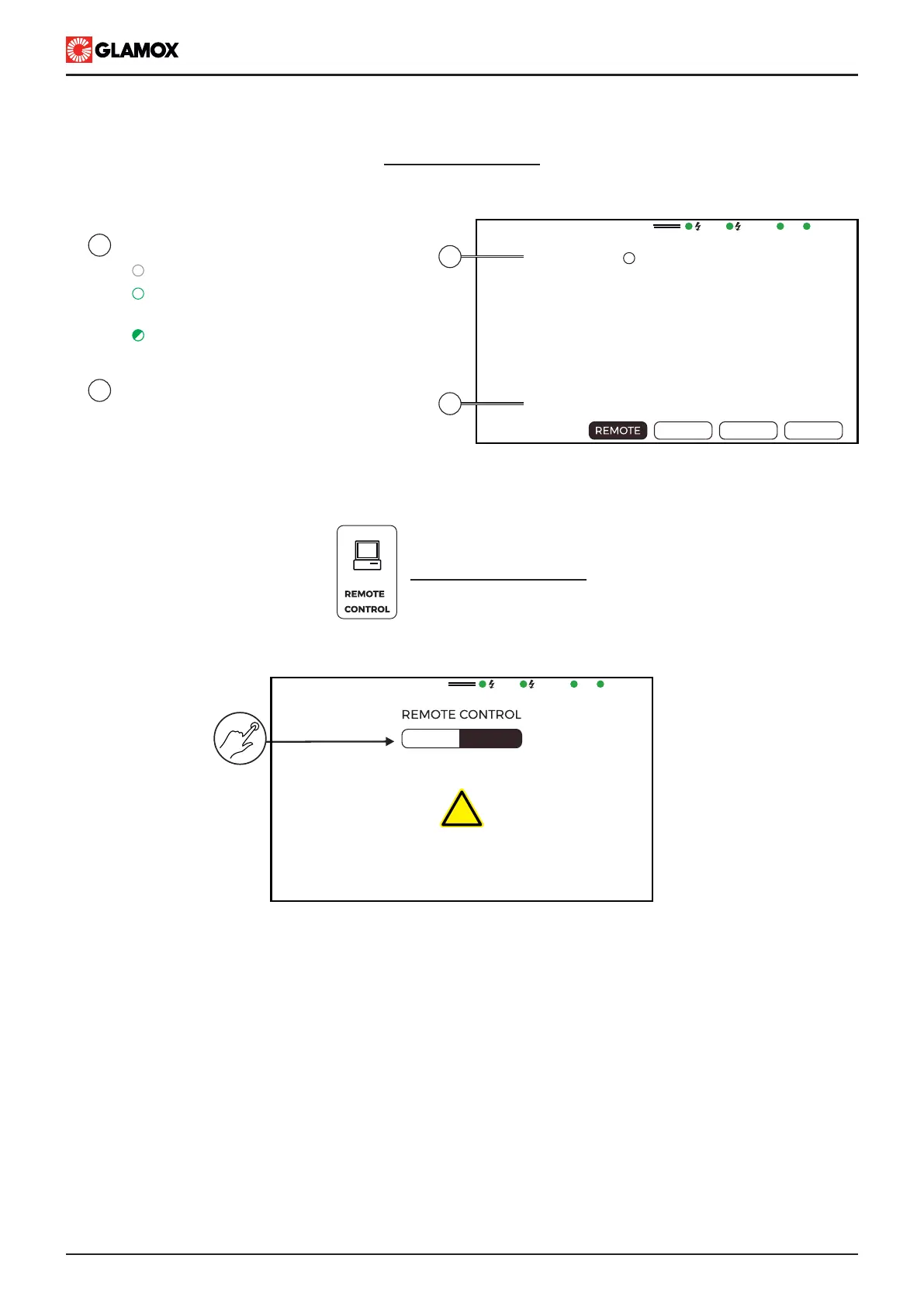

Remote status allow user to check remote configuration and communication status.
1
2
Communication indicator
Media State will show if RJ45 LAN connector
is connected.
1
2
Grey color, remote control disabled
Green color, remote control enabled
no communication
Green color blinking, remote control enabled
communication in progress
