Light switching on / off
Depending on preference of operator, lights can be operated in the following ways:

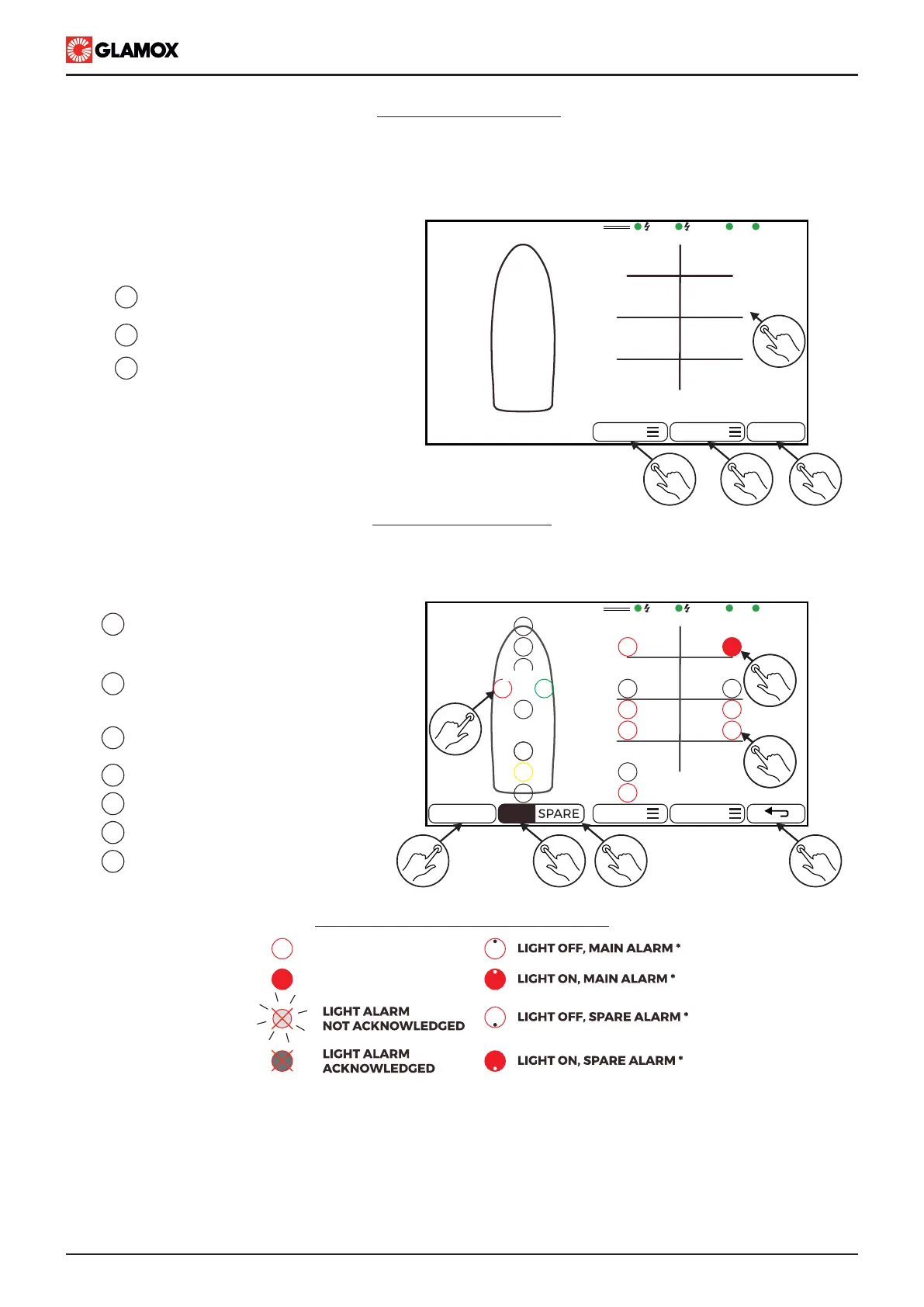

- Light control screen, operation of light is done via mimic screen, each light is individually operated
- Light list, operation of lights via list, each light is individually operated
- Group list, operation of lights via list, lights are operated via pre-configured groups
Tap to operate Group list
Tap to operate Light list
2
3
1
Tap to operate lights via
Lights Control Screen
GROUPS
LIGHTS
ALL OFF
1
PS
SB
1
2
3
4
5
6
7
8
9
10 11
13
12
14
15
1716
18
19
MAIN
24
23
Tap on the MAIN switch
All lights that will be turned on,
will switch on main light
Tap on the SPARE switch
All lights that will be switched on,
will switch on spare light (if exists)
Tap to switch on light / toggle light status
To switch off all lights, tap on ALL OFF
Exit Lights Control Screen
3
4
6
7
1
2
Tap to switch off light / toggle light
status
1 2 76
For switch light on/off, tap on the appropriate light circle. Empty light symbol represents light switched off
while filled symbol represents light switch on. Press and hold on, the circle will show the light name.
Navigation and Signal Lights Status
IMPORTANT!!!
If there is no user activity for about 30 sec, (period may be changed in configuration) Lights Control Screen will be
deactivated / exited automatically.
When light module is in alarm state, i.e. communication error, all lights connected to this module will go to alarm
state. If the user attempt to switch on/off the light which is connected to this module, alarm will be generated, and
buzzer will be activated.
