NL95

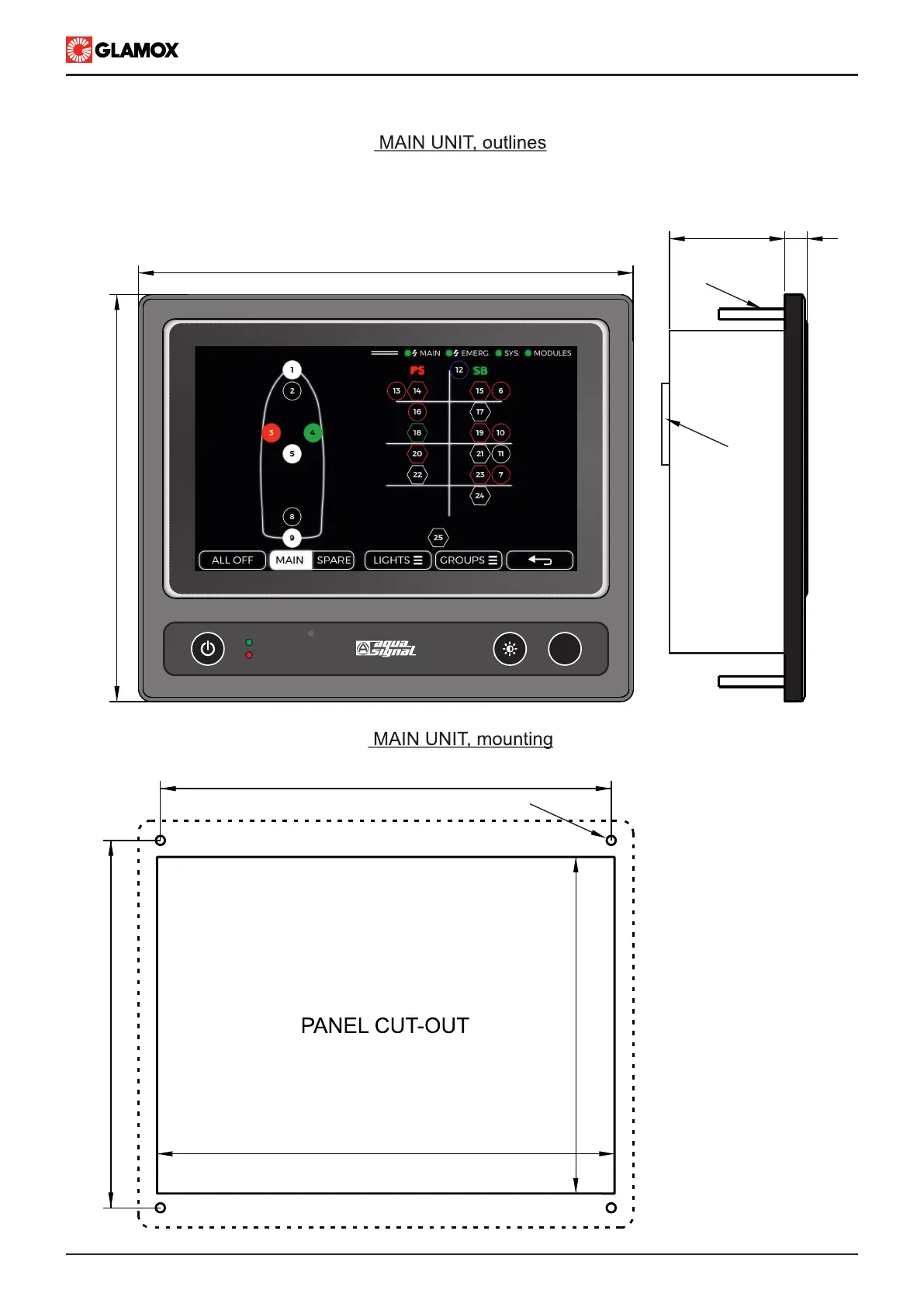

7.1 Outlines / codes
NAME : ITNSL-01TP
CODE : 02-04-211
WEIGHT (kg) : 2,4
225
185
POWER ON
FAILURE
F1
65 10
CONNECTORS LEAVE 80MM FOR CABLES
M5
Ÿ Leave enough space for the
connectors.
Ÿ Fix the cables with cable strips.
Ÿ Do not overstress the
connectors.
Ÿ Minimum cable bending radius
is 40 mm.
Ÿ Maximum panel thickness is
15mm
205
167
210
155
4x Φ6
NAME : ITNSL-01TP with RS232/RS485 output
CODE : 02-04-227
