2-1 GLW 102786_en_01
2 Operating the LC 100
2.1 Scope of supply and overview

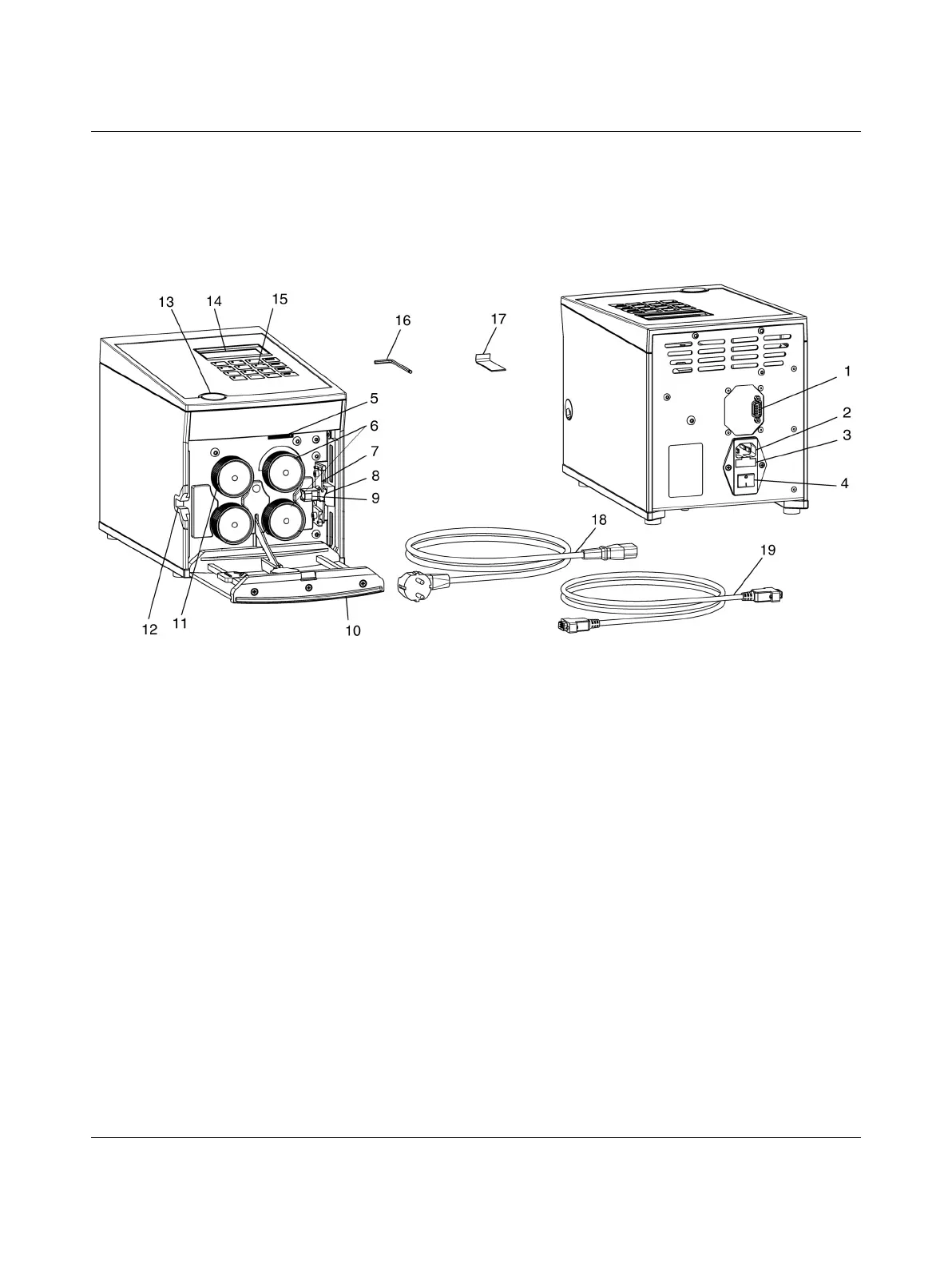

Figure 2-1 Scope of delivery and overview of the operating components
1 RS-232 interface 11 Metering roller
2 Mains connection 12 Insertion slot
3 Mains fuses 13 Door opener
4 Mains switch 14 Display
5 Adjusting screw 15 Key pad
6 Drive rolls 16 Allen key, size 3
7 Cutter 17 Removal hook
8 Outlet slot 18 Power cable
9 Cable routing 19 RS-232 cable
10 Front door Not pictured: CD-ROM, user manual
